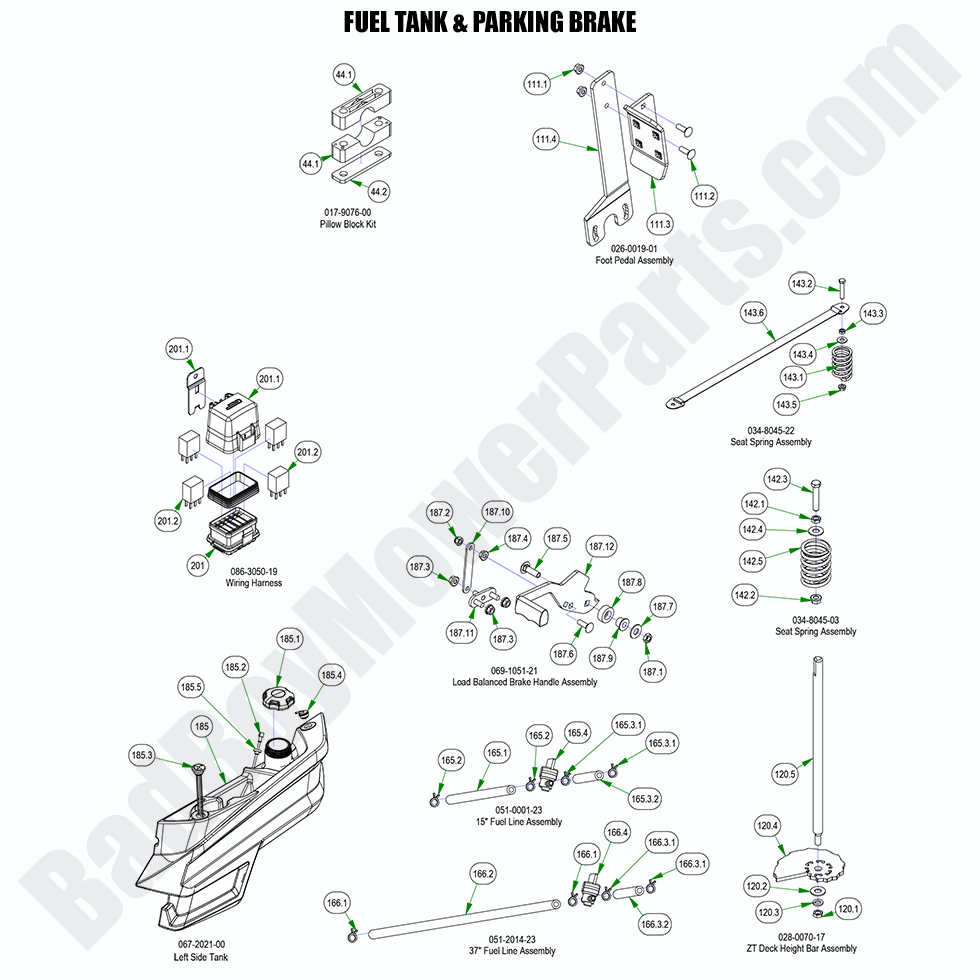

2023 ZT Elite Limited - Fuel Tank & Parking Brake

2023 ZT Elite Limited - Fuel Tank & Parking Brake

The fuel tank and parking brake are two essential components that ensure your 2023 ZT Elite Limited mower operates safely and efficiently. At BadBoyMowerParts.com, we provide a wide selection of Bad Boy Mower Parts to replace or upgrade your fuel tank and parking brake system. Whether you're replacing a damaged fuel tank or servicing the parking brake, we offer parts designed to fit your mower perfectly. Our detailed Bad Boy Mower Part diagrams allow you to easily find the parts you need. We offer only high-quality Bad Boy Lawn Mower Parts that provide lasting durability and performance. Shopping Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you can save on every order while ensuring your mower continues to perform at its best.

Bad Boy Mower Parts Lookup

2023 ZT Elite Limited - Fuel Tank & Parking Brake
  Position Number SKU Product Title Price
44.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
44.1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
44.2 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
111.0 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
111.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
111.2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
111.3 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
111.4 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
120.0 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
120.1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
120.2 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
120.3 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
120.4 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
120.5 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
142.0 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
142.1 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
142.2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
142.3 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
142.5 034-8045-00 034-8045-00 - Seat Spring
$20.49
143.0 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
143.6 064-8083-00 064-8083-00 Seat Strap w/Buckles
$24.60
165.1 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
165.2 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
165.4 067-6057-00 067-6057-00 2 Way Fuel Shut-Off Valve
$16.04
166.2 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
185.0 067-2021-00 067-2021-00 - 2021-2024 Maverick Left Side Tank
$349.99
185.1 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
185.2 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
185.3 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
185.4 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
185.5 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
187.0 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
187.1 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
187.2 013-8042-00 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
$2.99
187.4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
187.5 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
187.9 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
187.10 039-0170-00 039-0170-00 - Brake Cable Extension Plate
$10.99
187.11 039-0171-00 039-0171-00 - Brake Load Balancer Weldment
$10.99
187.12 069-1051-00 069-1051-00 - Load Balanced Brake Handle With Grip
$64.19
201.0 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
201.1 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
201.2 086-1202-19 086-1202-19 - Relay Terminal
$24.97
