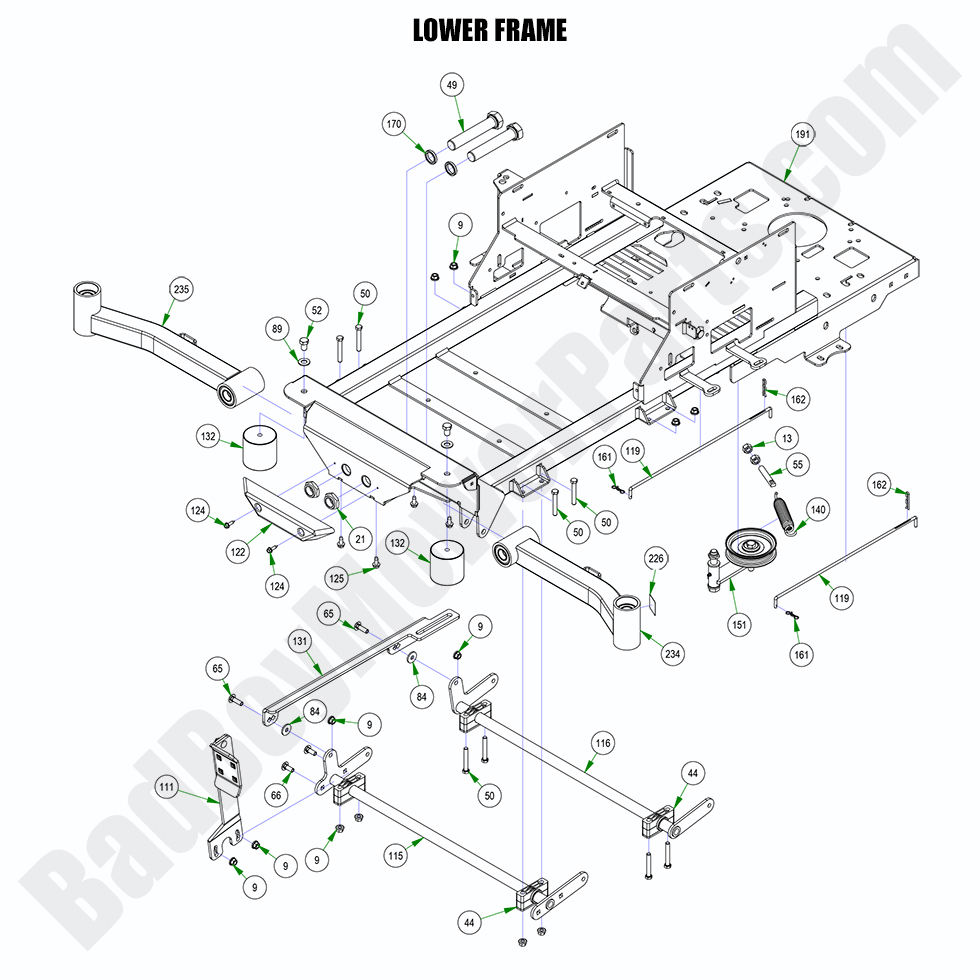

2023 ZT Elite Limited - Lower Frame

2023 ZT Elite Limited - Lower Frame

The lower frame of your 2023 ZT Elite Limited is essential for providing structural support and ensuring the stability of your mower. At BadBoyMowerParts.com, we offer a comprehensive selection of Bad Boy Mower Parts designed for the lower frame. Whether you're looking for a replacement frame or need specific components like reinforcements or brackets, we have everything you need. Our Bad Boy Mower Part diagrams help you find the exact part for your mower quickly. We provide only durable Bad Boy Lawn Mower Parts that stand up to the rigors of regular use. Shopping Bad Boy Parts Online is efficient, and with Free Shipping On Orders Over $100, you can keep your 2023 ZT Elite Limited mower performing at its best while saving on shipping costs.

Bad Boy Mower Parts Lookup

2023 ZT Elite Limited - Lower Frame
  Position Number SKU Product Title Price
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
21 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
44 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
49 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
50 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
52 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
55 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
65 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
66 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
84 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
89 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
111 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
115 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
116 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
119 028-0070-00 028-0070-00 - Neutral Rod
$12.48
122 029-7040-00 029-7040-00 - EZT Front Bumper (See Models Used On For Detail)
$31.17
124 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
125 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
131 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
132 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
140 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
151 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
161 044-2004-00 044-2004-00 - Bow Pin
$2.99
162 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
170 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
226 091-8002-LE 091-8002-LE - Independently Articulating Front Sus Arm No Longer Available
Obsolete.
234 250-1801-21 250-1801-21 - 2021-2022 ZT Suspension Arm Assembly Left
$106.99
235 250-1851-21 250-1851-21 - 2021-2022 ZT Suspension Arm Assembly Long Right (54 & 60 Decks)
$106.99
