2023 ZT Elite Limited - Upper Frame & Seat

2023 ZT Elite Limited - Upper Frame & Seat

The upper frame and seat are essential parts of the 2023 ZT Elite Limited, providing structural integrity and comfort for the operator. A strong, stable upper frame ensures that your mower is safe and reliable, while a well-designed seat offers maximum comfort for long mowing sessions. At BadBoyMowerParts.com, we offer a range of Bad Boy Mower Parts designed to replace or upgrade the upper frame and seat. Whether you need to replace the seat cushion or upgrade the frame, we have the parts you need. Our Bad Boy Mower Part diagrams make it easy to find the exact part for your mower. We provide only top-quality Bad Boy Lawn Mower Parts that are built to last. Shopping Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can save while maintaining your mower’s performance and comfort.

Bad Boy Mower Parts Lookup

2023 ZT Elite Limited - Upper Frame & Seat
  Position Number SKU Product Title Price

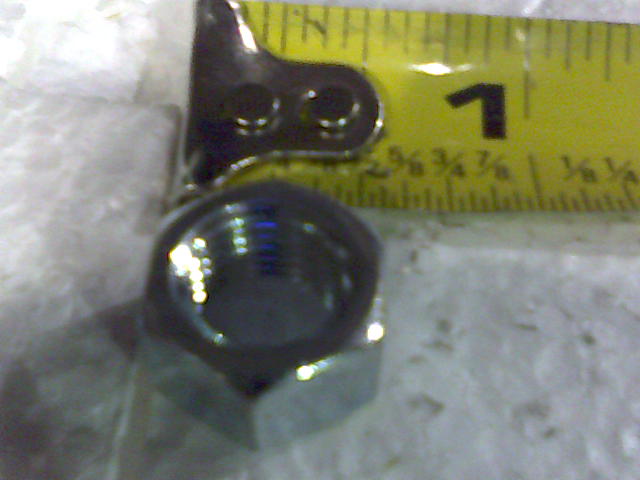

12 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
15 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99

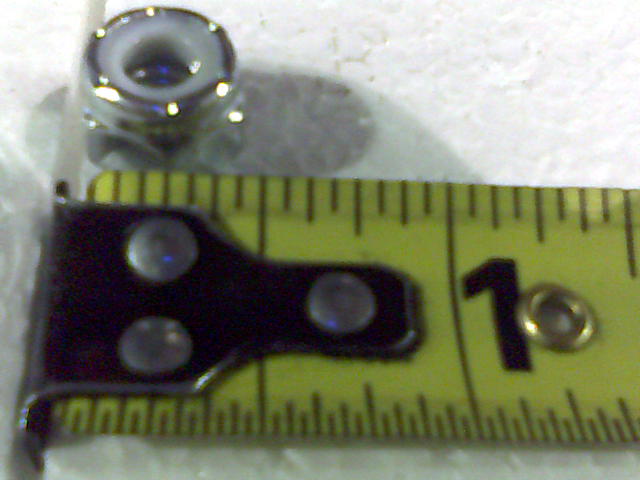

17 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99

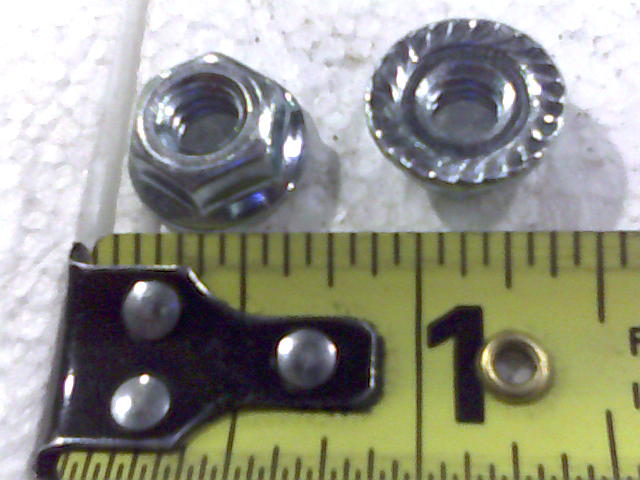

19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99

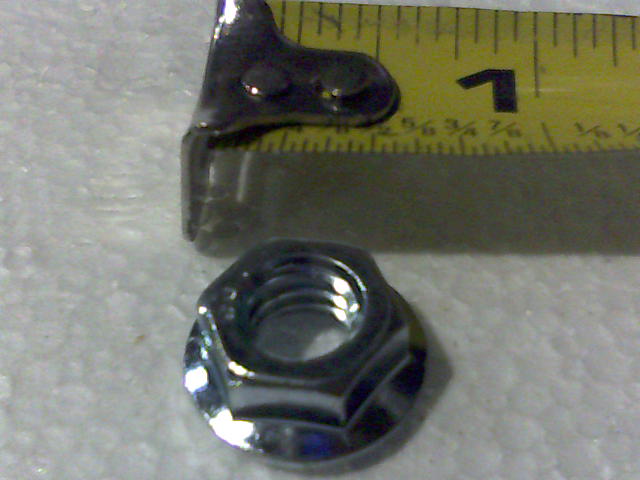

20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99

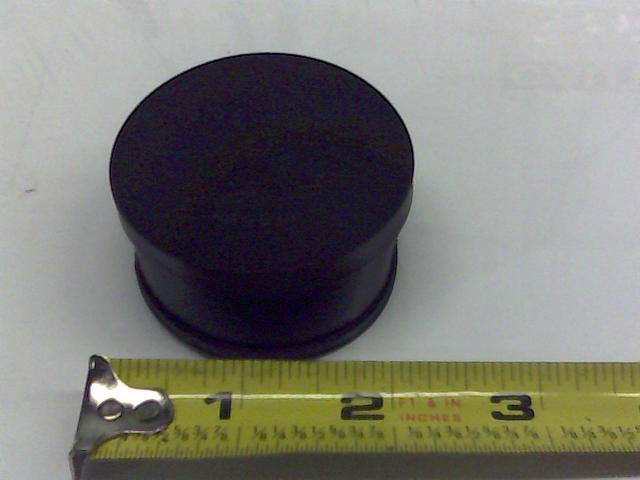

29 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99

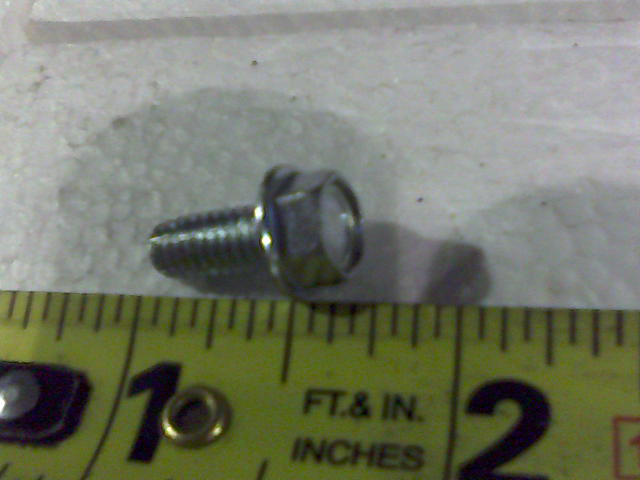

54 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99

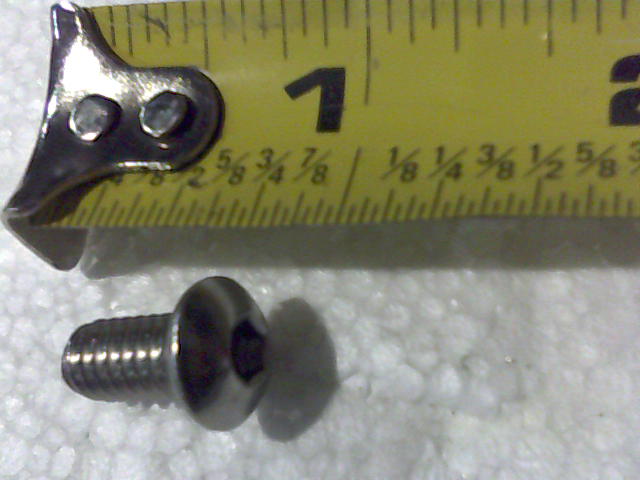

58 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99

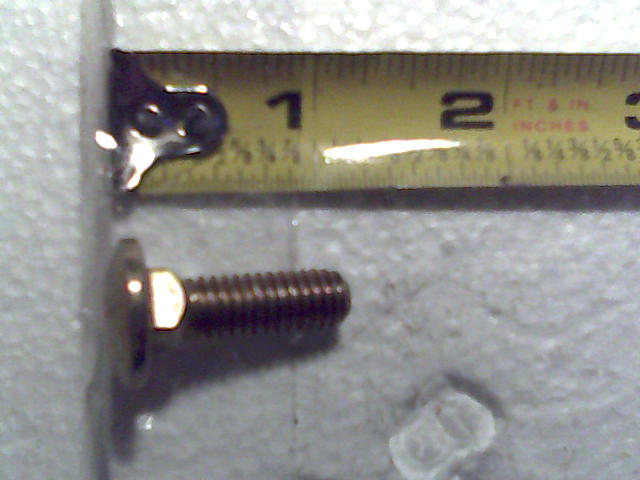

81 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
82 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
92 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99

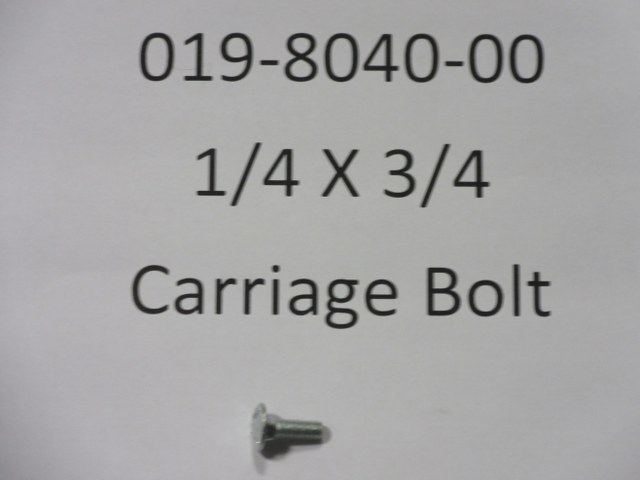

94 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99

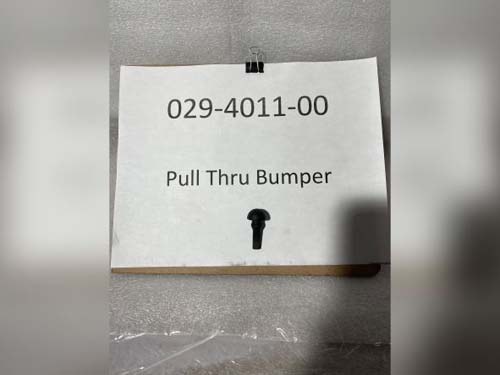

121 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99

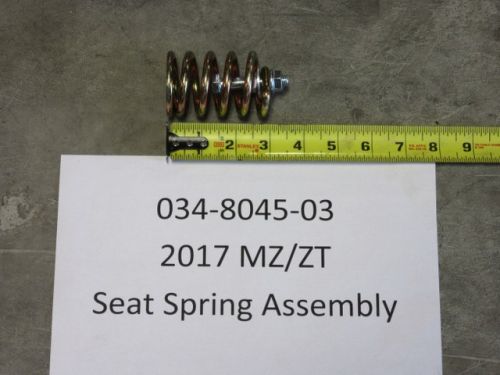

142 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
143 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
179 064-3050-21 064-3050-21 - 2021-2025 Load Balanced Brake Cable 1
$56.77
180 064-3051-21 064-3051-21 - 2021-2025 Load Balanced Brake Cable 2
$56.77
187 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
193 071-2400-00 071-2400-00 - ZT Limited Edition Seat
$629.99
194 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
197 079-3470-21 079-3470-21 - 2021 Maverick Floorboard Assembly
$159.99
201 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99

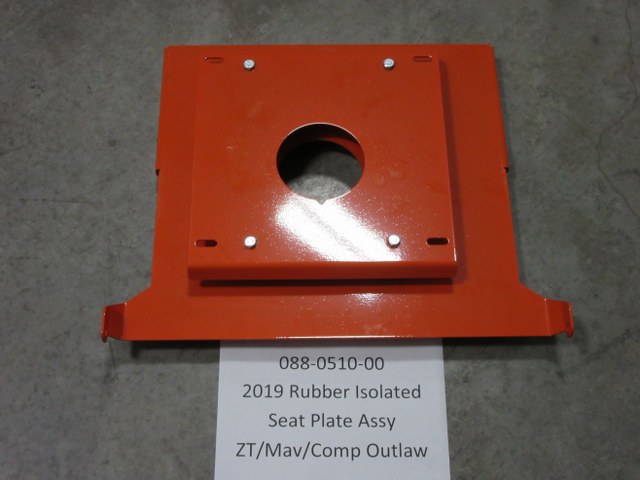

203 088-0510-00 088-0510-00 - Rubber Isolated Seat Plate (See Models Used On For Details)
$339.99
204 091-0010-22 091-0010-22 - ANSI Decal BZS60KT745 2022 No Longer Available
Obsolete.
205 091-0015-23 091-0015-23 - 2023 EPA Build Date Punch Decal
$2.99
206 091-0021-00 091-0021-00 - Steering Control Sticker
$11.76

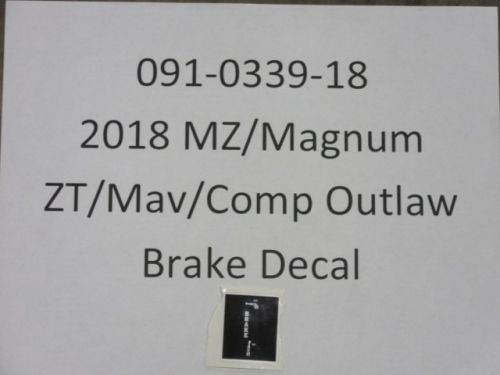

210 091-0339-18 091-0339-18 - Brake Decal (See Models Used On For Details)
$11.76
218 091-3017-LE 091-3017-LE - Pump Belt Route Decal
$2.99

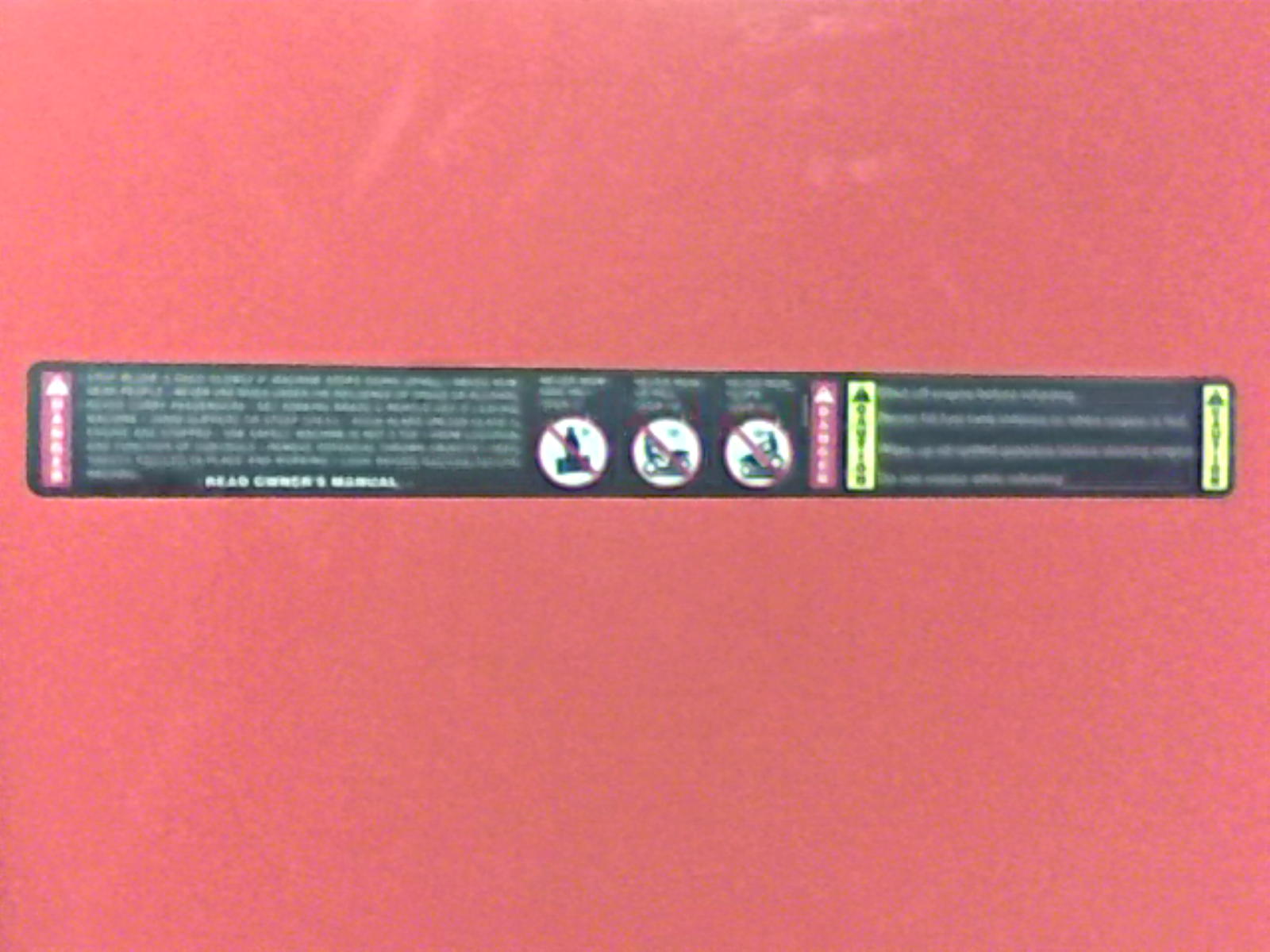

219 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
224 091-6068-LE 091-6068-LE - Fying Bull Dog Decal No Longer Available
Obsolete.
