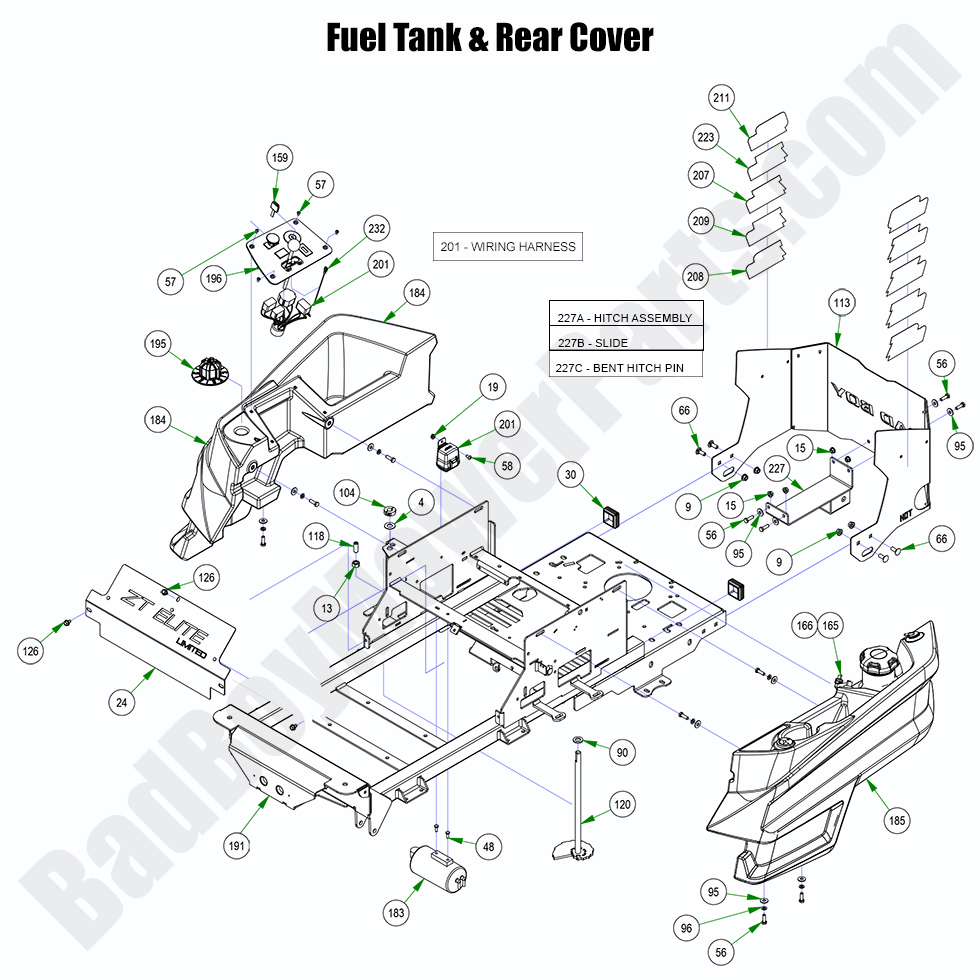

2023 ZT Elite Limited - Fuel Tank & Rear Cover

2023 ZT Elite Limited - Fuel Tank & Rear Cover

The fuel tank and rear cover on your 2023 ZT Elite Limited are vital parts for proper fuel storage and protection. At BadBoyMowerParts.com, we offer a wide variety of Bad Boy Mower Parts to replace or maintain your fuel tank and rear cover. Whether your fuel tank is showing signs of wear or you need a new rear cover to protect your mower, we have the quality parts you need. Our Bad Boy Mower Part diagrams make it easy to locate the correct parts for your mower. We offer only high-quality Bad Boy Lawn Mower Parts that are built for durability and reliable performance. Shopping Bad Boy Parts Online is quick and convenient, and with Free Shipping On Orders Over $100, you can save while keeping your 2023 ZT Elite Limited mower in optimal condition.

Bad Boy Mower Parts Lookup

2023 ZT Elite Limited - Fuel Tank & Rear Cover
  Position Number SKU Product Title Price
4 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
15 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
24 014-3321-23 014-3321-23 - 2023 ZT Elite Limited Cooler Cover Assem No Longer Available
Obsolete.
30 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
48 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
56 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
57 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
58 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99

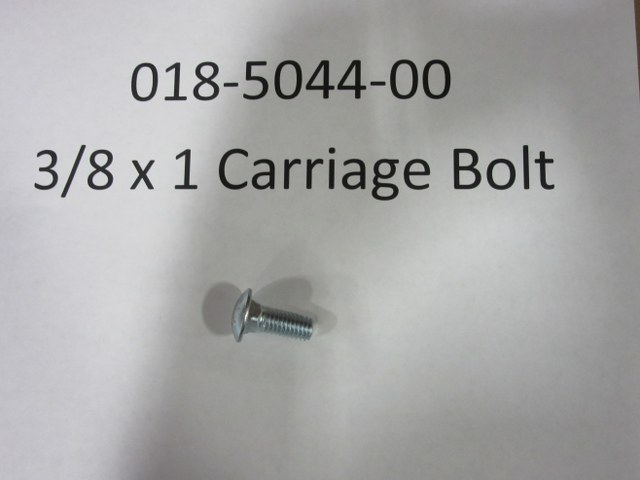

66 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
90 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
95 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
96 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
104 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
113 026-0225-LE 026-0225-LE - Rear Cover Assembly for ZT Elite Limited No Longer Available
Obsolete.
118 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17

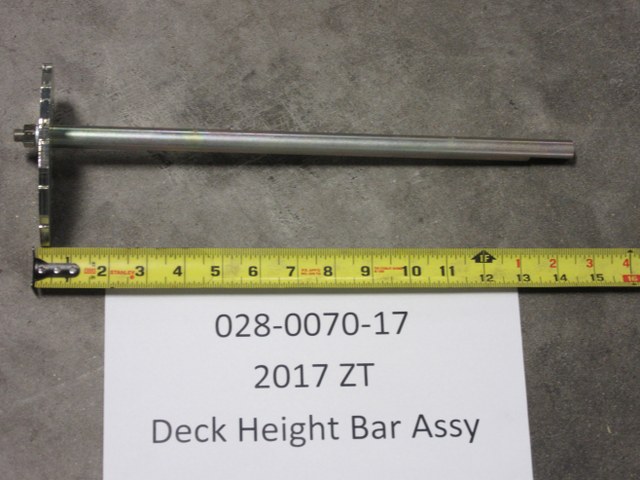

120 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66

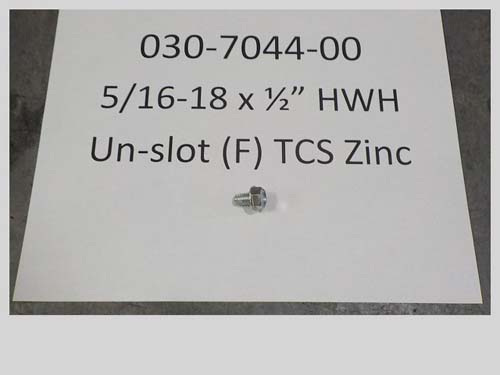

126 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
159 042-9000-00 042-9000-00 - Ignition Key
$4.06

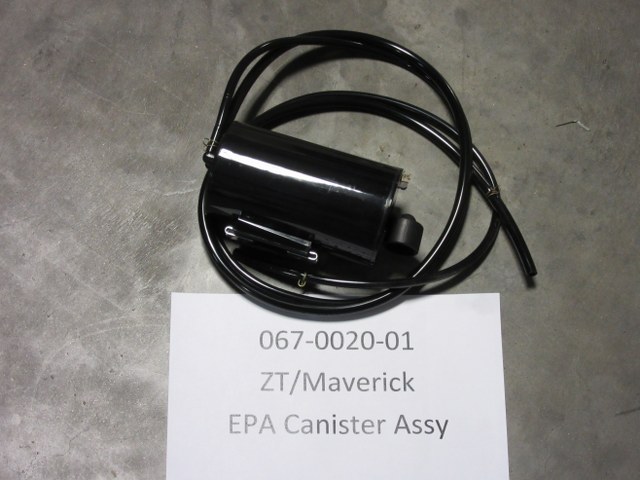

183 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
184 067-2020-00 067-2020-00 - 2021-2022 Maverick Right Side Tank
$248.99
185 067-2021-00 067-2021-00 - 2021-2024 Maverick Left Side Tank
$349.99
195 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
201 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
207 091-0315-21 091-0315-21 - 2021 - 2022 ZT Elite 747cc Back Plate Cluster
$13.90
208 091-0316-21 091-0316-21 - 2021 ZT Elite 726cc Back Plate Cluster
$14.97
209 091-0317-21 091-0317-21 - 2021 - 2022 ZT Elite 725cc Back Plate Cluster
$11.76

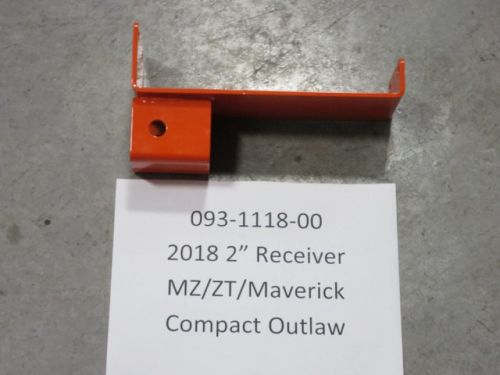

227 093-1118-00 093-1118-00 - 2018 2" Reciever Weldment
$32.05
232 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
