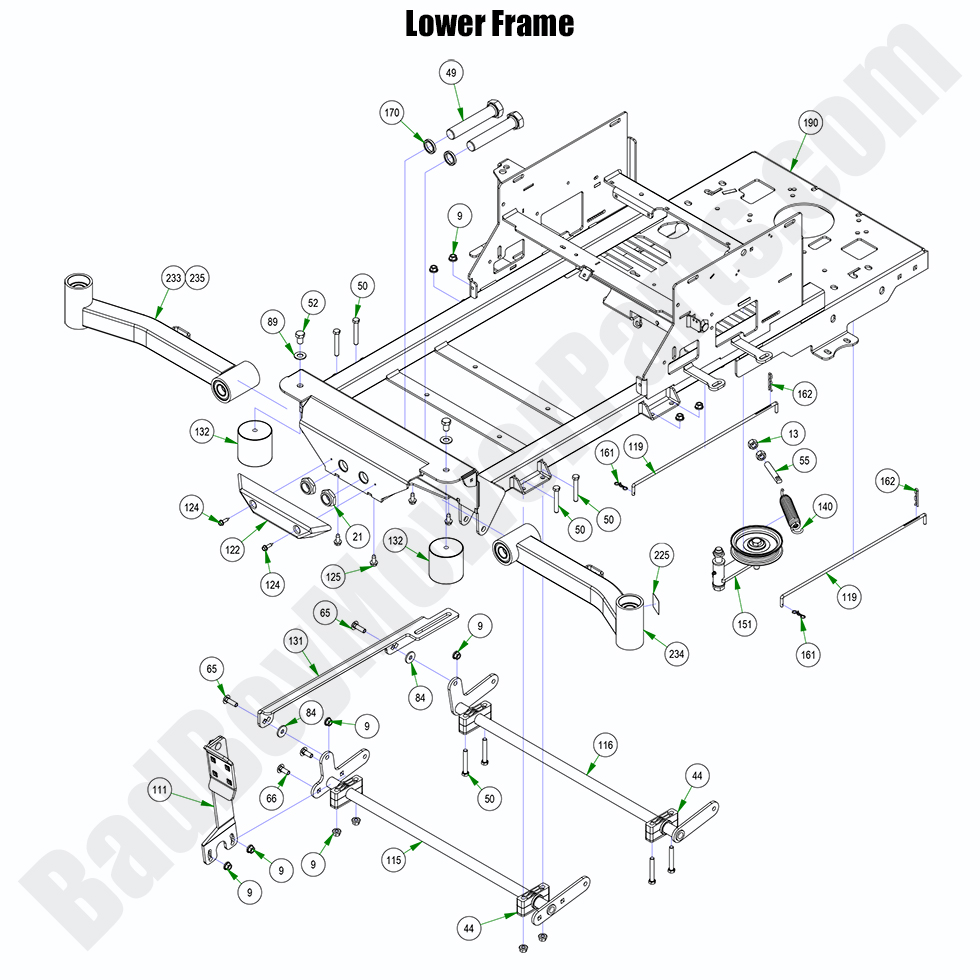

2023 ZT Elite - Lower Frame

2023 ZT Elite - Lower Frame

The lower frame of your 2023 ZT Elite supports many essential components, and ensuring it’s in excellent condition is key to maintaining your mower's overall performance. At BadBoyMowerParts.com, we carry a selection of Bad Boy Mower Parts to replace or repair the lower frame on your mower. Whether you need a replacement frame or additional parts to maintain structural integrity, we have everything you need. Our Bad Boy Mower Part diagrams allow you to quickly locate and order the correct components for your mower’s lower frame. We offer only top-quality Bad Boy Lawn Mower Parts that are built to last and perform under heavy use. Shopping Bad Boy Parts Online is simple and efficient, and with Free Shipping On Orders Over $100, you can save even more. Keep your 2023 ZT Elite in top condition with durable lower frame parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2023 ZT Elite - Lower Frame
  Position Number SKU Product Title Price
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
21 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
44 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
49 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
50 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
52 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
55 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
65 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
66 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
84 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
89 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
111 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
115 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
116 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
119 028-0070-00 028-0070-00 - Neutral Rod
$12.48
122 029-7040-00 029-7040-00 - EZT Front Bumper (See Models Used On For Detail)
$31.17
124 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
125 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
131 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
132 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
140 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
151 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
161 044-2004-00 044-2004-00 - Bow Pin
$2.99
162 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
170 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
225 091-8002-00 091-8002-00 - Independently Articulating Front Susp. Arms Patent Decal
$5.49
233 250-1751-21 250-1751-21 2021-2024 ZT Suspension Arm Assy. Short Right
$109.99
234 250-1801-21 250-1801-21 - 2021-2022 ZT Suspension Arm Assembly Left
$106.99
235 250-1851-21 250-1851-21 - 2021-2022 ZT Suspension Arm Assembly Long Right (54 & 60 Decks)
$106.99
