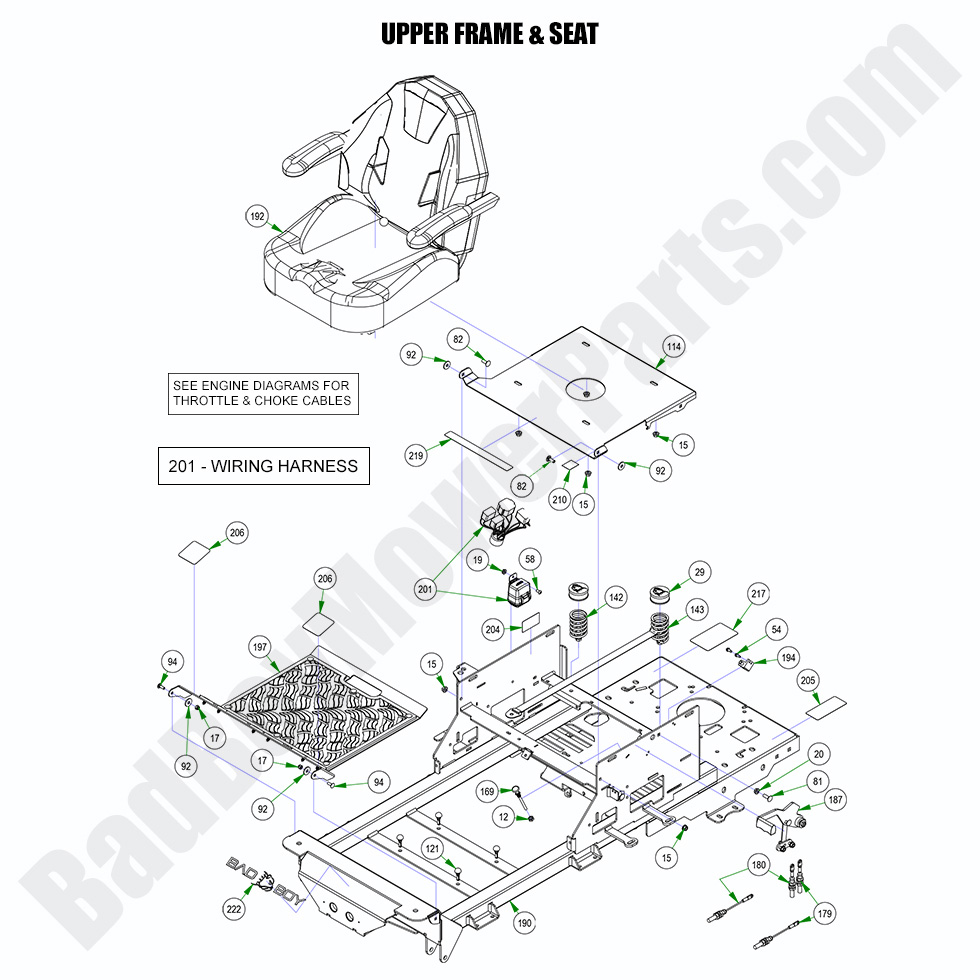

2023 ZT Elite - Upper Frame & Seat

2023 ZT Elite - Upper Frame & Seat

The upper frame and seat on your 2023 ZT Elite are essential for both the structural integrity of your mower and your comfort while mowing. At BadBoyMowerParts.com, we offer an array of Bad Boy Mower Parts to replace or repair your upper frame and seat. Whether you need a new seat for added comfort or a replacement for a damaged upper frame, we have all the parts you need. Our Bad Boy Mower Part diagrams ensure that you can find the exact parts for your mower. We offer durable Bad Boy Lawn Mower Parts that are designed to withstand regular use and keep your mower in top condition. Shopping Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can save while maintaining your mower. Upgrade your 2023 ZT Elite with quality upper frame and seat parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2023 ZT Elite - Upper Frame & Seat
  Position Number SKU Product Title Price
12 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
15 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
17 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
29 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
54 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
58 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
81 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
82 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
92 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
94 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
114 026-1016-00 026-1016-00 - Seat Plate
$102.11
121 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
142 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
143 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
179 064-3050-21 064-3050-21 - 2021-2025 Load Balanced Brake Cable 1
$56.77
180 064-3051-21 064-3051-21 - 2021-2025 Load Balanced Brake Cable 2
$56.77
187 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
192 071-2101-00 071-2101-00 - 2021-2024 ZT Elite Seat
$625.99
194 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
197 079-3470-21 079-3470-21 - 2021 Maverick Floorboard Assembly
$159.99
201 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
204 091-0010-22 091-0010-22 - ANSI Decal BZS60KT745 2022 No Longer Available
Obsolete.
205 091-0015-23 091-0015-23 - 2023 EPA Build Date Punch Decal
$2.99
206 091-0021-00 091-0021-00 - Steering Control Sticker
$11.76
210 091-0339-18 091-0339-18 - Brake Decal (See Models Used On For Details)
$11.76
217 091-3017-00 091-3017-00 - Pump Belt Route Decal
$4.92
219 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
222 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
