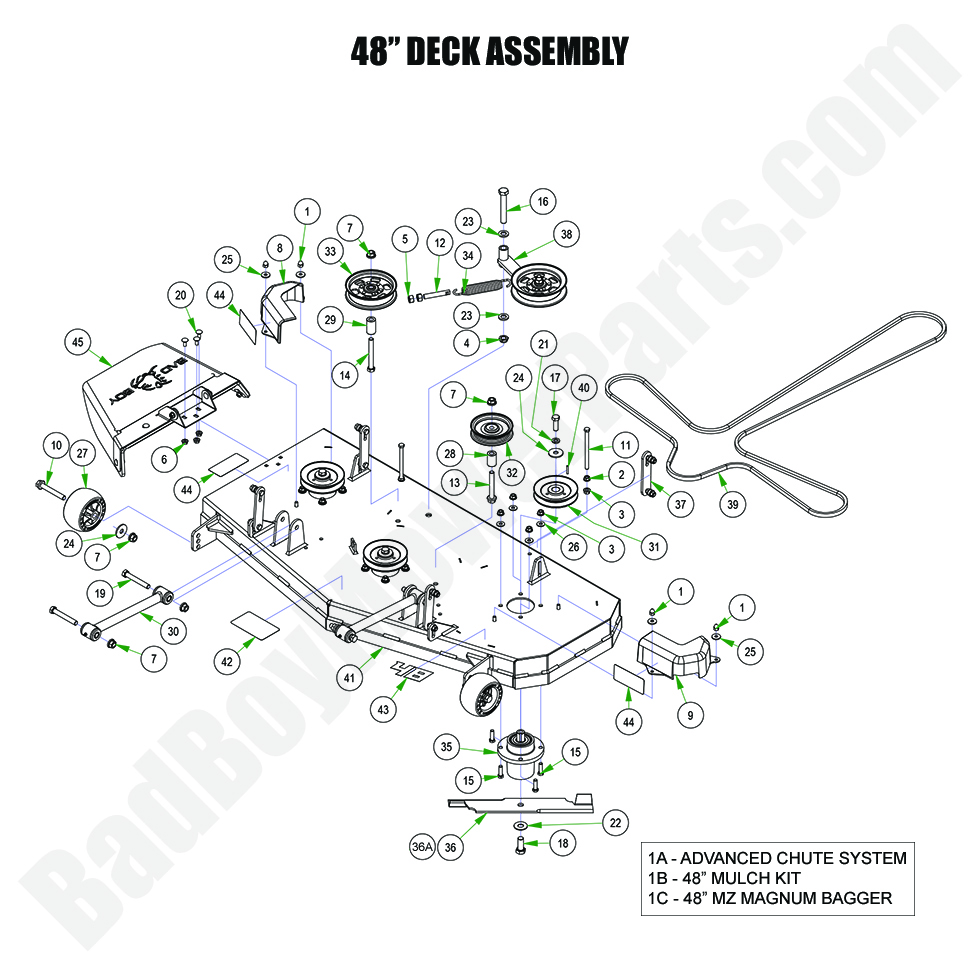

2024 MZ Magnum - 48" Deck Assembly

2024 MZ Magnum - 48" Deck Assembly

The 2024 MZ Magnum 48" Deck Assembly is an important component for achieving the perfect cut on your lawn. At BadBoyMowerParts.com, we provide a full selection of Bad Boy Mower Parts for the 2024 MZ Magnum 48" Deck Assembly, allowing you to easily maintain or replace the parts for optimal performance. Our Bad Boy Mower Part Diagrams help you locate the exact parts you need for a smooth, hassle-free repair. Whether you're looking for Bad Boy Lawn Mower Parts to upgrade or replace parts of your deck, we have everything you need to keep your mower cutting efficiently. Shopping Bad Boy Parts Online is easy and convenient, and we offer Free Shipping On Orders Over $100, so you can save while maintaining your mower. Check out our catalog today for all your 2024 MZ Magnum 48" Deck Assembly parts.

Bad Boy Mower Parts Lookup

2024 MZ Magnum - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-4842-00 088-4842-00 - Advanced Chute System for all MZ, MZ Magnum & ZT Avenger decks
$249.00
1B 210-0148-50 210-0148-50 - 2017- 2025 MZ 48" Mulch Kit w/ Blades
$318.45
1C 088-1813-00 088-1813-00 - 48" MZ 2 Bagger (Fits 2017 - 2025 Models Only)
$2399.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
9 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
10 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
11 018-0065-00 018-0065-00 - 3/8"-16 x 5 1/4" Hex Bolt
$4.39
12 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
13 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
14 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
15 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
16 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
19 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
20 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
21 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
22 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
23 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
24 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
25 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
26 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
27 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
28 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
29 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
30 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
31 033-4820-00 033-4820-00 - Spindle Pulley - 42"/48" MZ/MZ Magnum, 34"/36" Revolt/Revolt SD
$31.22
32 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
33 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
34 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
35 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
36 038-4826-00 038-4826-00 - 48" High Lift Fusion Blade-MZ
$22.99
37A 038-4827-00 038-4827-00 - 48" Gator Blade for MZ only
$21.99
37 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
38 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
39 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
40 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
41 060-2311-00 060-2311-00 - 2023 48" MZ Magnum Deck--Painted
$999.99
42 091-0393-00 091-0393-00 - 48"/ 42" Deck Route Decal (See Models Used On for Details)
$11.76
43 091-0503-00 091-0503-00 - MY24 48" Deck Decal
$10.99
44 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
45 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
