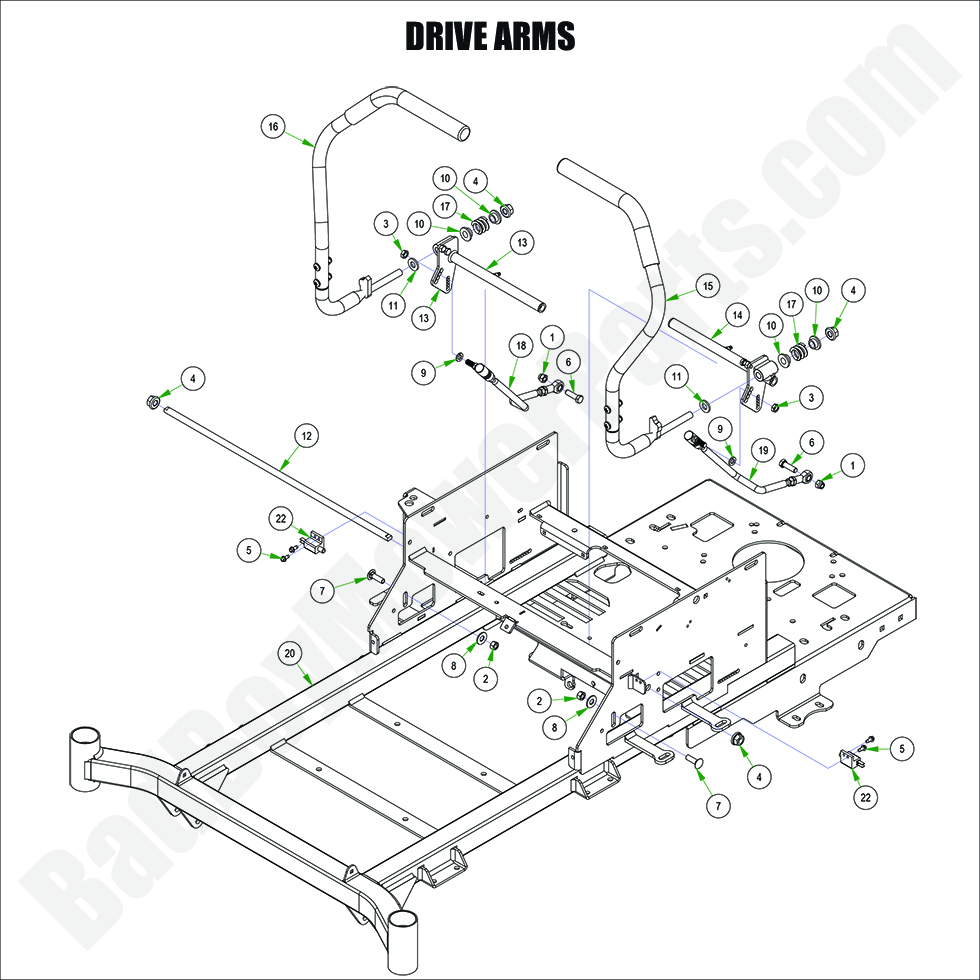

2024 MZ Magnum - Drive Arm Assembly

2024 MZ Magnum - Drive Arm Assembly

The 2024 MZ Magnum Drive Arm Assembly is a crucial part of your mower's drive system, ensuring it moves with precision and power. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts for the 2024 MZ Magnum Drive Arm Assembly to help you keep your mower running smoothly. Our detailed Bad Boy Mower Part Diagrams guide you in finding the exact parts you need for repairs or replacements. Whether you're looking for Bad Boy Lawn Mower Parts to fix the drive arm or other essential components, we have everything you need. Shopping Bad Boy Parts Online allows you to easily browse and order the right parts from the comfort of your home. Plus, enjoy Free Shipping On Orders Over $100, making it even more affordable to maintain your 2024 MZ Magnum. Visit us today to get the parts that keep your mower performing at its best.

Bad Boy Mower Parts Lookup

2024 MZ Magnum - Drive Arm Assembly
  Position Number SKU Product Title Price
1 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
6 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
7 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
8 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
8 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
10 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
11 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
12 028-0049-00 028-0049-00 - 2021 Maverick Steering Actuator Rod
$21.39
13 031-0053-21 031-0053-21 - 2021-2022 Maverick Drive Arm Actuator RH Assembly
$42.79
14 031-0054-21 031-0054-21 - 2021-2022 Maverick Drive Arm Actuator LH Assembly
$42.79
15 031-8850-70 031-8850-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$93.64
16 031-8851-70 031-8851-70 - Right Steering Arm Black Elbow (See Models Used On For Details)
$93.64
17 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
18 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
19 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
22 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
