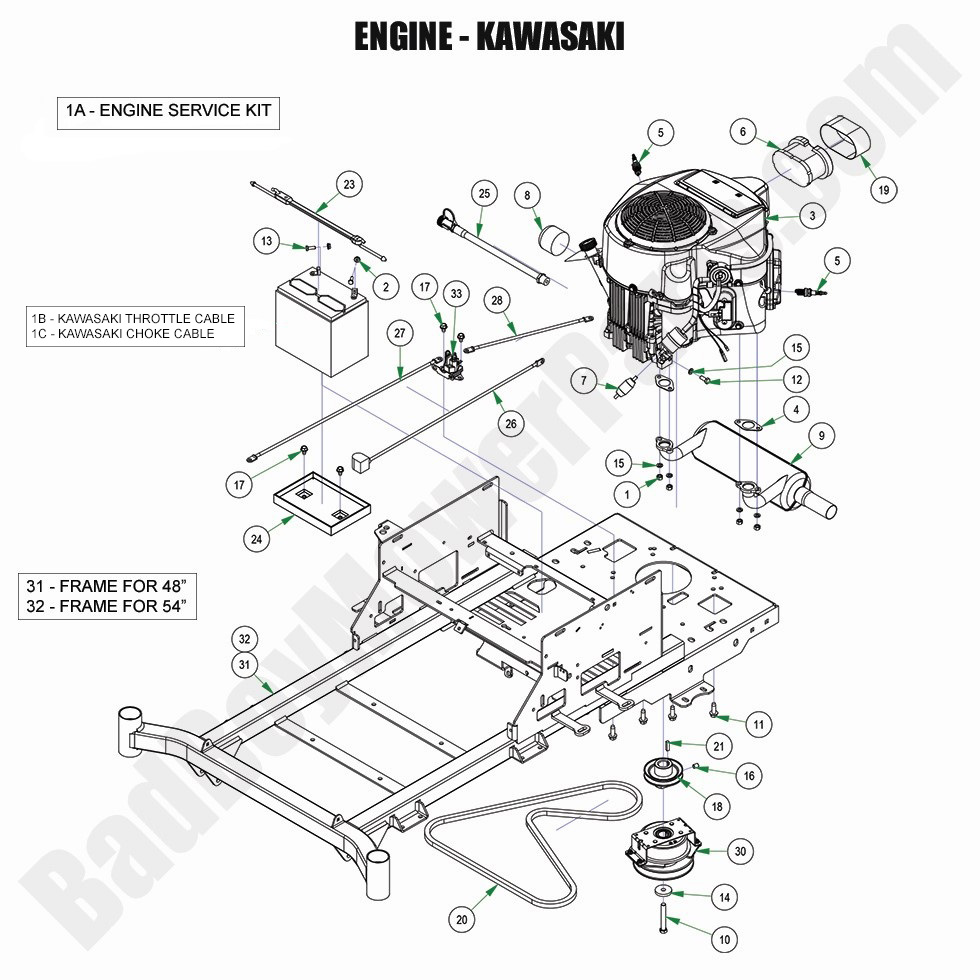

2024 MZ Magnum - Engine -Kawasaki FR651

2024 MZ Magnum - Engine -Kawasaki FR651

The 2024 MZ Magnum Engine - Kawasaki FR651 provides the power and reliability that your mower needs. At BadBoyMowerParts.com, we carry a variety of Bad Boy Mower Parts for the 2024 MZ Magnum Engine - Kawasaki FR651, allowing you to keep your engine in peak condition. Our Bad Boy Mower Part Diagrams provide detailed visuals to help you find the correct parts for any repair or upgrade. Whether you need Bad Boy Lawn Mower Parts for the Kawasaki engine or any other part of your mower, we offer high-quality options designed for long-lasting performance. Shopping Bad Boy Parts Online is convenient, allowing you to easily find the right parts and place an order. Don’t forget, we offer Free Shipping On Orders Over $100, so you can save even more on your mower maintenance needs. Visit our website for all your engine and mower parts.

Bad Boy Mower Parts Lookup

2024 MZ Magnum - Engine -Kawasaki FR651
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1B 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
1C 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
3 015-0022-00 015-0022-00 - FR651V-S00-S Kawasaki Engine
$2389.06
4 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
5 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
6 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
7 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
8 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
9 015-0052-00 015-0052-00 - Kawasaki Exhaust MZ/ZT/Maverick/Compact Outlaw (See Models Used On For Details)
$217.48
10 018-0007-21 018-0007-21 - 7/16-20x3 Hex Bolt GR8 w/Patch
$3.29
11 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
12 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
13 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
14 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
15 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
15 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
16 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
17 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
19 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
20 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
21 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
23 043-8930-00 043-8930-00 2023 - Rubber Battery Hold Down Strap
$21.39
24 043-8931-00 043-8931-00 - 2023 Battery Tray Only
$20.32
25 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
26 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
27 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
28 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
30 070-0055-00 070-0055-00 - PTO Clutch (See Models Used On For Detail)
$279.99
33 108-0001-00 108-0001-00 - Solenoid
$29.41
