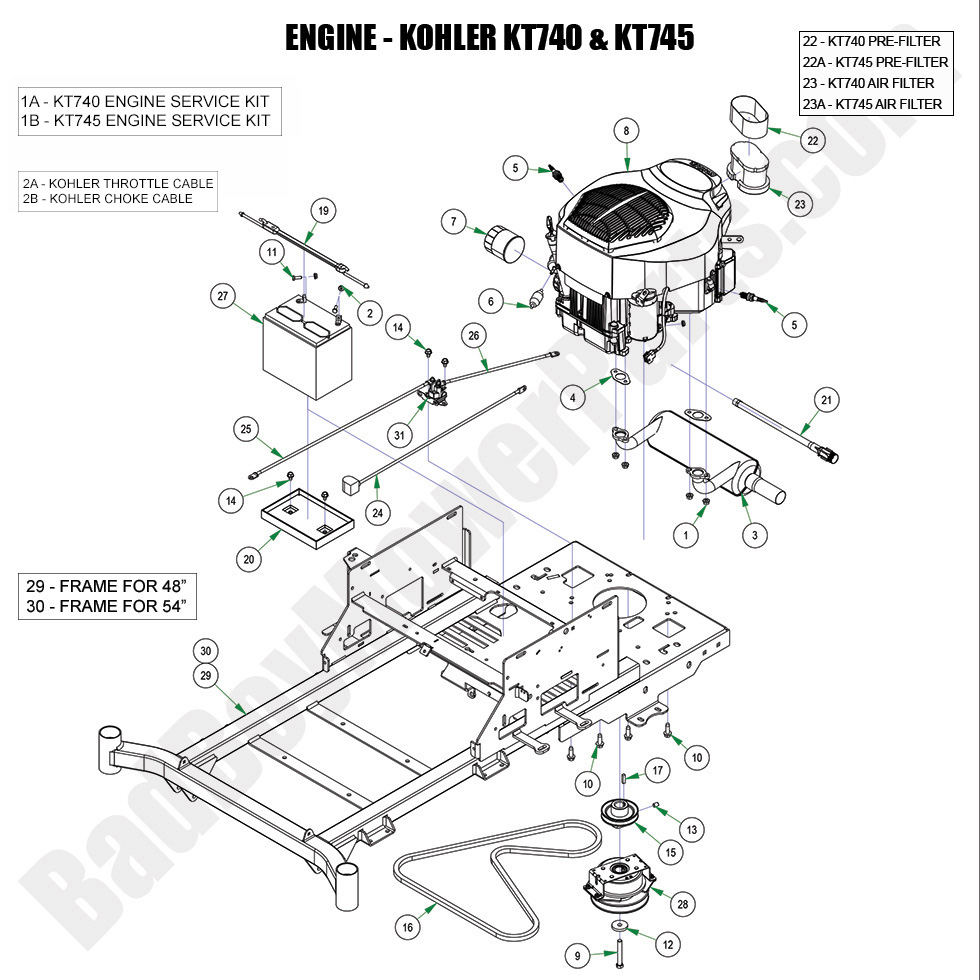

2024 MZ Magnum - Engine - Kohler KT740 & KT745

2024 MZ Magnum - Engine - Kohler KT740 & KT745

The 2024 MZ Magnum Engine - Kohler KT740 & KT745 provides reliable power for your mower, making it essential to maintain its performance. At BadBoyMowerParts.com, we offer a wide range of Bad Boy Mower Parts designed specifically for the 2024 MZ Magnum Engine - Kohler KT740 & KT745, ensuring your engine operates efficiently. Our Bad Boy Mower Part Diagrams help you find the exact engine parts you need for repairs or upgrades. Whether you're looking for Bad Boy Lawn Mower Parts for the Kohler engine or other key components, we have a complete selection of parts to keep your mower running smoothly. Shopping Bad Boy Parts Online makes it easy to find the right parts and place your order quickly. Plus, take advantage of our Free Shipping On Orders Over $100 to save more while maintaining your 2024 MZ Magnum engine.

Bad Boy Mower Parts Lookup

2024 MZ Magnum - Engine - Kohler KT740 & KT745
  Position Number SKU Product Title Price
1A 063-2000-06 063-2000-06 - Kohler 7000 Series Engine Service Kit
$94.47
1B 063-2000-12 063-2000-12 - Engine Service Kit For Kohler 7000 Series PRO
$106.06
1 013-8240-00 013-8240-00 - M8 Nut For Exhaust (See Models Used On For Details)
$7.36
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
3 015-0051-00 015-0051-00 - 2017-2024 Kohler Exhaust MZ/ZT/Maverick
$217.48
4 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
5 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
6 063-5001-00 063-5001-00 - Kohler Fuel Filter
$19.25
7 063-5004-00 063-5004-00 - Oil Filter for Kohler KT725, KT740, KT745, ZT740, CV749 & ECV749 Engines
$29.69
8 015-2017-00 015-2017-00 - KT745 Kohler Engine
$2499.99
9 018-0007-21 018-0007-21 - 7/16-20x3 Hex Bolt GR8 w/Patch
$3.29
10 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
11 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
12 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
13 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
14 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
15 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
16 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
17 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
19 043-8930-00 043-8930-00 2023 - Rubber Battery Hold Down Strap
$21.39
20 043-8931-00 043-8931-00 - 2023 Battery Tray Only
$20.32
21 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
22A 015-2026-02 015-2026-02 - Air Pre-Cleaner for Kohler
$10.91
22 063-5002-00 063-5002-00 - 25/26 HP Koh Precleaner ZT/MZ
$9.89
23A 015-2026-03 015-2026-03 - Air Filter Element for Kohler
$37.44
23 063-5003-00 063-5003-00 - 25/26 HP Koh Air Filter ZT/MZ
$34.23
24 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
25 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
26 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
28 070-0055-00 070-0055-00 - PTO Clutch (See Models Used On For Detail)
$279.99
31 108-0001-00 108-0001-00 - Solenoid
$29.41
