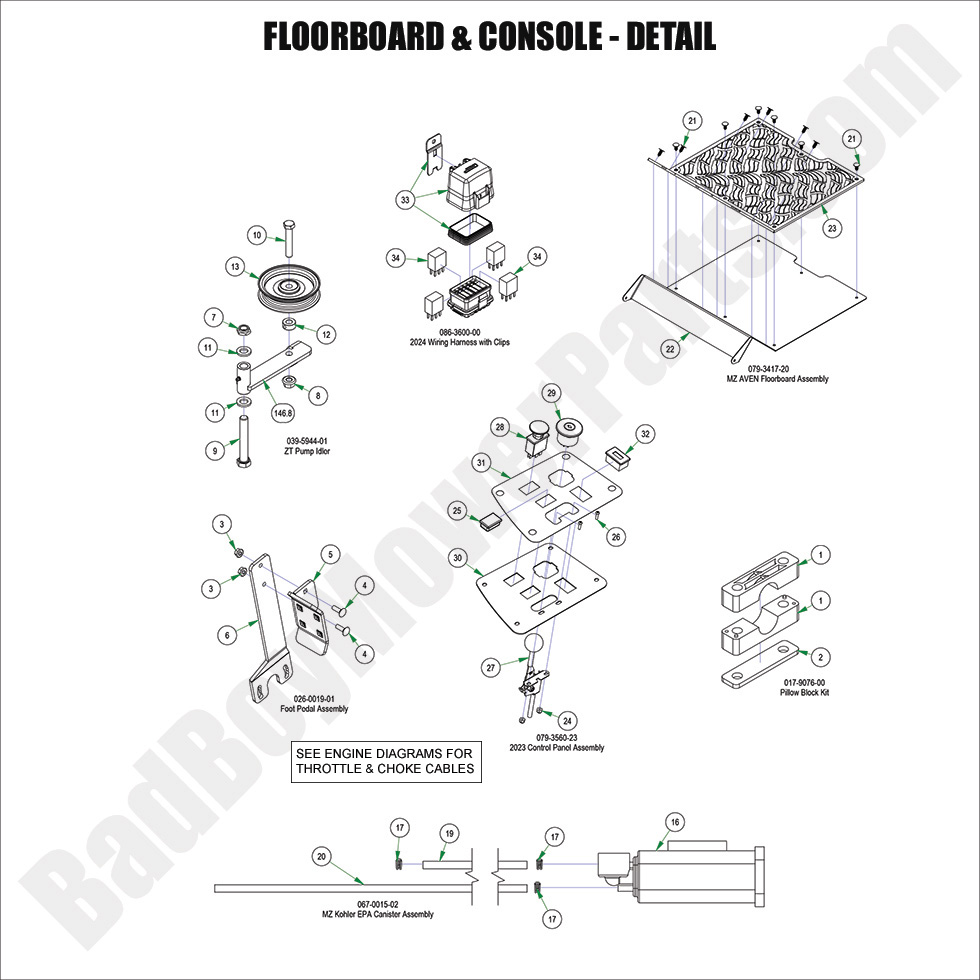

2024 MZ Magnum - Floorboard & Console - Detail

2024 MZ Magnum - Floorboard & Console - Detail

The 2024 MZ Magnum Floorboard & Console - Detail provides both comfort and functionality, ensuring a smooth mowing experience. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts for the 2024 MZ Magnum Floorboard & Console - Detail, so you can replace or maintain this essential component with ease. Our Bad Boy Mower Part Diagrams help you quickly locate the parts you need, whether you're replacing a floorboard or upgrading your mower’s console. Whether you're looking for Bad Boy Lawn Mower Parts for the console, floorboard, or any other part, we provide durable and reliable components that fit perfectly. Shopping Bad Boy Parts Online makes it easy to find the right parts and order them from the comfort of your home. Plus, enjoy Free Shipping On Orders Over $100, giving you added savings while keeping your 2024 MZ Magnum in excellent condition.

Bad Boy Mower Parts Lookup

2024 MZ Magnum - Floorboard & Console - Detail
  Position Number SKU Product Title Price
1A 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
1B 086-3600-00 086-3600-00 - Wiring Harness With Clips (See Models Used On For Details)
$299.99
1E 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
1F 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
1G 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
2 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
6 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
7 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
8 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
9 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
10 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
11 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
12 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
13 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
16 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78
17 072-0002-00 072-0002-00 - 5.5 mm Vinyl Hose Clamp
$2.99
19 051-2023-02 051-2023-02 - 44" x 3/16" Black Hose
$12.48
20 051-2027-02 051-2027-02 - 52" x 3/16" clear hose
$7.25
21 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
22 079-3417-00 079-3417-00 - 2017-2024 Floorboard (See Models Used On For Details)
$145.95
23 081-4001-00 081-4001-00 - 2021-2024 Floor Mat W/ Reaper Tread
$53.49
24 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
26 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
28 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
29 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
30 079-3461-00 079-3461-00 - Control Panel--Orange
$23.53
31 091-4072-00 091-4072-00 - Control Panel Decal
$9.89
32 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
33 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
34 086-1202-19 086-1202-19 - Relay Terminal
$24.97
146.8 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
