2024 MZ Magnum - Fuel Tank & Rear Cover

2024 MZ Magnum - Fuel Tank & Rear Cover

The 2024 MZ Magnum Fuel Tank & Rear Cover are essential components for the proper operation of your mower. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts for the 2024 MZ Magnum Fuel Tank & Rear Cover, making it easy to find the right parts for replacements or upgrades. Our Bad Boy Mower Part Diagrams provide detailed visuals, helping you identify the exact parts you need. Whether you're in need of Bad Boy Lawn Mower Parts for the fuel tank, rear cover, or any other component, we have everything you need for proper maintenance. Shopping Bad Boy Parts Online makes the process quick and simple, giving you access to the parts you need from the comfort of your home. Plus, we offer Free Shipping On Orders Over $100, making it even more affordable to keep your 2024 MZ Magnum in optimal condition.

Bad Boy Mower Parts Lookup

2024 MZ Magnum - Fuel Tank & Rear Cover
  Position Number SKU Product Title Price
1 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
2 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99

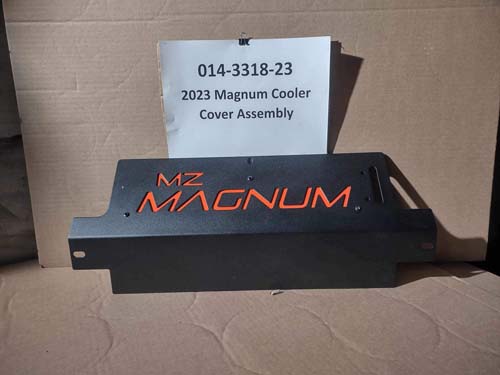

7 014-3318-23 014-3318-23 - 2023 Magnum Cooler Cover Assembly
$74.89
8 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
9 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
10 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
11 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
12 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
13 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
14 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
15 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
16 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
17 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
18 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
19 026-0223-00 026-0223-00 2022-2024 MZ Rear Plate
$90.99
20 028-0007-17 028-0007-17 - 2018-2022 MZ Magnum Deck Height Rod Assy.
$28.88
21 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
22 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
23 039-0035-22 039-0035-22 - MZ Brake Plate Assembly w/ Brake Cable
$53.49
24 042-9000-00 042-9000-00 - Ignition Key
$4.06
27 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
29 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
30 067-2080-50 067-2080-50 - Right Side Console (See Models Used On For Details)
$228.99
31 067-2090-50 067-2090-50 - Left Side Fuel Tank 2017-2024 MZ & MZ Magnum
$248.99
34 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
35 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
41 091-0509-00 091-0509-00 - MY24 Magnum Back Plate Decal
$10.99
42 091-3017-00 091-3017-00 - Pump Belt Route Decal
$4.92
45 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
