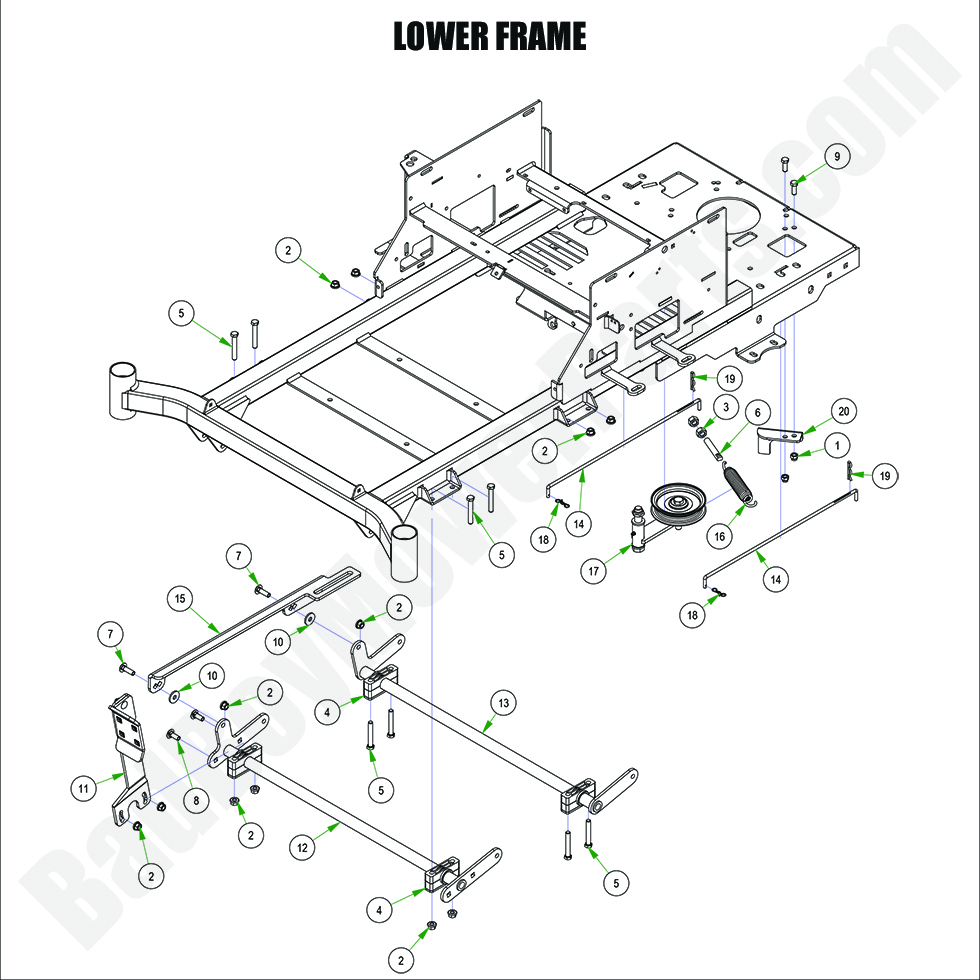

2024 MZ Magnum - Lower Frame Assembly

2024 MZ Magnum - Lower Frame Assembly

The 2024 MZ Magnum Lower Frame Assembly is an important structural component of your mower, providing the foundation for other parts. At BadBoyMowerParts.com, we carry a complete selection of Bad Boy Mower Parts for the 2024 MZ Magnum Lower Frame Assembly, ensuring you can easily replace or upgrade this essential part. Our Bad Boy Mower Part Diagrams make it simple to find the right parts for your lower frame assembly. Whether you need Bad Boy Lawn Mower Parts for structural repairs or other maintenance, we offer durable and reliable parts to keep your mower running smoothly. Shopping Bad Boy Parts Online is convenient and fast, letting you order the parts you need with just a few clicks. Don’t forget that we offer Free Shipping On Orders Over $100, so you can save on your purchases while keeping your 2024 MZ Magnum in top condition.

Bad Boy Mower Parts Lookup

2024 MZ Magnum - Lower Frame Assembly
  Position Number SKU Product Title Price
1 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
4 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
5 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
6 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
7 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
8 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
9 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
10 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
11 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
12 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
13 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
14 028-0070-00 028-0070-00 - Neutral Rod
$12.48
15 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
16 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
17 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
18 044-2004-00 044-2004-00 - Bow Pin
$2.99
19 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
20 057-5900-00 057-5900-00 - Clutch Stop 2017-2024 MZ, 2020-2024 ZT Avenger
$31.17
