2024 MZ Magnum - Seat & Fuel Tank - Detail

2024 MZ Magnum - Seat & Fuel Tank - Detail

The 2024 MZ Magnum Seat & Fuel Tank - Detail are essential for comfort and functionality during your mowing sessions. At BadBoyMowerParts.com, we provide a wide range of Bad Boy Mower Parts for the 2024 MZ Magnum Seat & Fuel Tank - Detail, allowing you to replace or maintain both the seat and the fuel tank with ease. Our Bad Boy Mower Part Diagrams help you identify the specific parts needed for the seat and fuel tank assembly. Whether you're looking for Bad Boy Lawn Mower Parts for comfort or fuel-related components, we have everything you need to enhance your mowing experience. Shopping Bad Boy Parts Online is simple and efficient, and our checkout process ensures quick delivery. Plus, we offer Free Shipping On Orders Over $100, making it even easier to keep your 2024 MZ Magnum in perfect working order. Visit us today for your seat and fuel tank needs.

Bad Boy Mower Parts Lookup

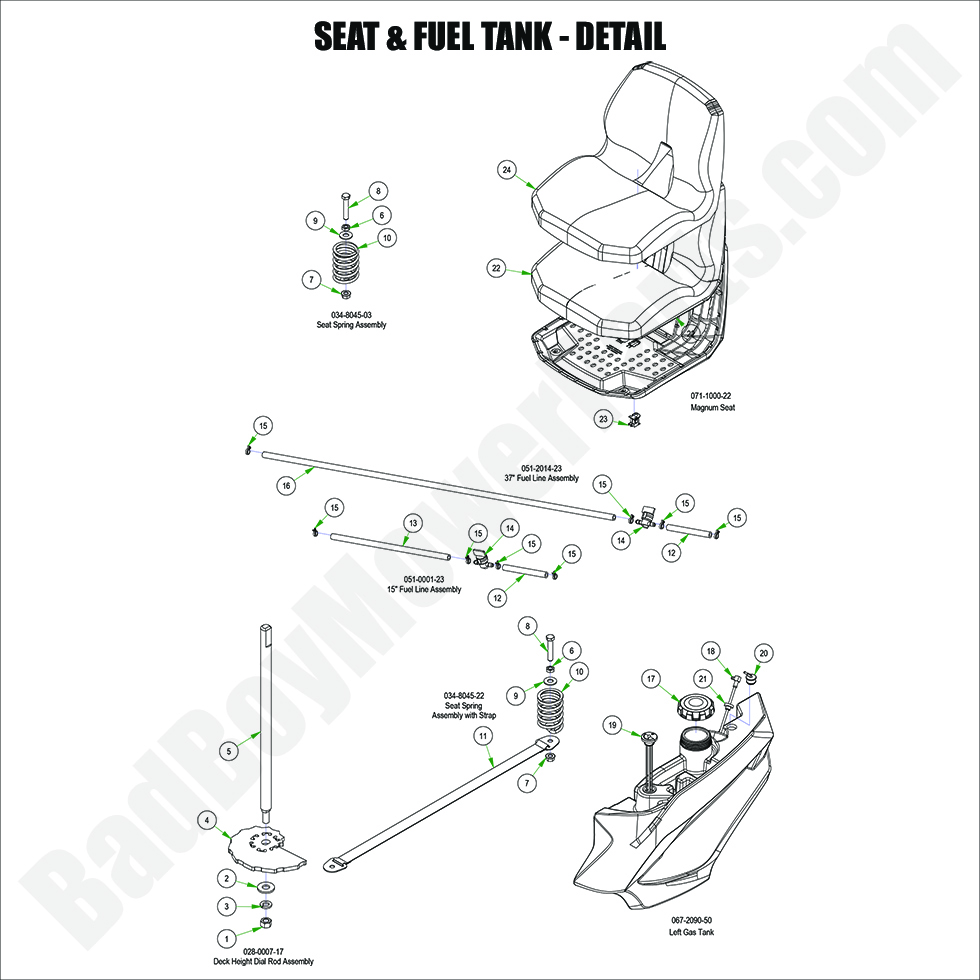

2024 MZ Magnum - Seat & Fuel Tank - Detail
  Position Number SKU Product Title Price
1A 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
1B 071-1000-22 071-1000-22 - 2022 - 2024 Magnum Seat
$429.99
1E 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
1F 028-0007-17 028-0007-17 - 2018-2022 MZ Magnum Deck Height Rod Assy.
$28.88
1G 067-2090-50 067-2090-50 - Left Side Fuel Tank 2017-2024 MZ & MZ Magnum
$248.99
1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
2 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
6 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
7 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
8 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
9 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
9 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
10 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99

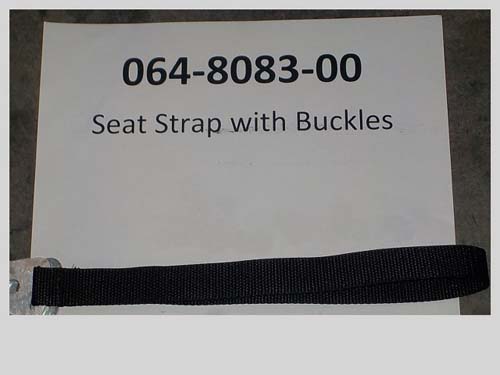

11 064-8083-00 064-8083-00 Seat Strap w/Buckles
$24.60
12 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
13 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
14 051-2023-01 051-2023-01 - 3/16 Vinyl 53" EPA Line
$9.67
15 051-2027-01 051-2027-01 - 3/16 Clear 44" EPA Line
$7.25
16 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78
17 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
18 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
19 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
20 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
21 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01

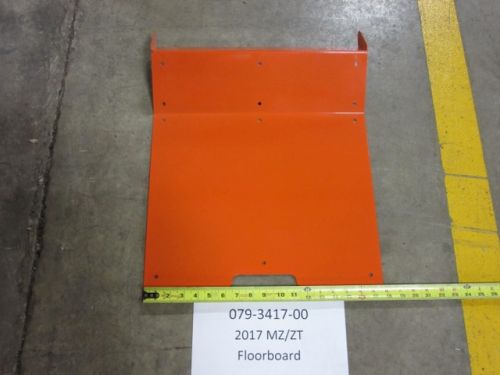

22 079-3417-00 079-3417-00 - 2017-2024 Floorboard (See Models Used On For Details)
$145.95
23 081-4001-00 081-4001-00 - 2021-2024 Floor Mat W/ Reaper Tread
$53.49
24 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
