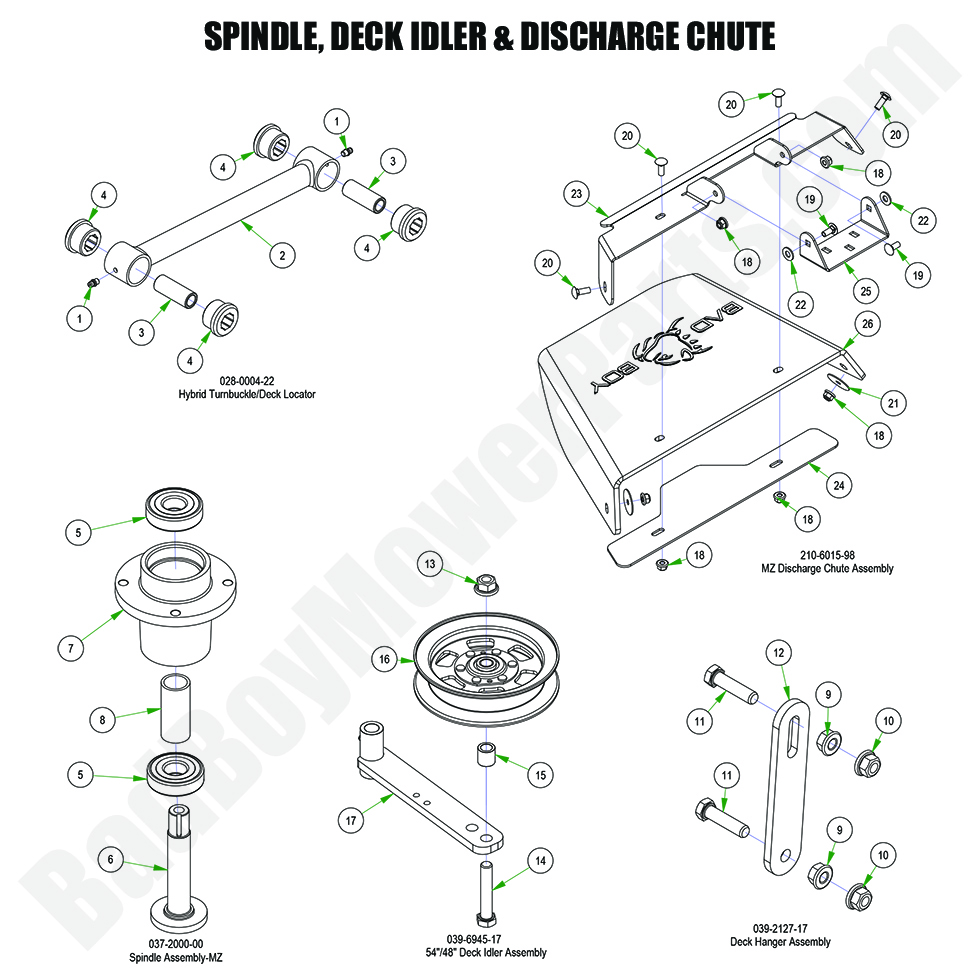

2024 MZ Magnum - Spindle, Idler & Discharge Chute

2024 MZ Magnum - Spindle, Idler & Discharge Chute

The 2024 MZ Magnum Spindle, Idler & Discharge Chute are vital components for your mower’s cutting system, ensuring smooth operation and an even cut. At BadBoyMowerParts.com, we offer an extensive selection of Bad Boy Mower Parts for the 2024 MZ Magnum Spindle, Idler & Discharge Chute, making it easy to maintain or replace these parts. Our Bad Boy Mower Part Diagrams help you quickly locate the parts you need for these key components. Whether you’re looking for Bad Boy Lawn Mower Parts to replace worn-out spindles or idlers, or you need a new discharge chute, we have everything you need to keep your mower cutting efficiently. Shopping Bad Boy Parts Online makes the process fast and convenient, and our Free Shipping On Orders Over $100 ensures you get your parts delivered with added savings. Keep your 2024 MZ Magnum in top condition by browsing our selection today.

Bad Boy Mower Parts Lookup

2024 MZ Magnum - Spindle, Idler & Discharge Chute
  Position Number SKU Product Title Price
1A 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
1B 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
1C 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
1D 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
1E 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
1 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
3 048-6004-00 048-6004-00 - Maverick/Compact Outlaw Topllink Bushing Sleeve (See Models Used On For Details)
$11.29
4 048-6005-00 048-6005-00 - Toplink Bushing (See Models Used On For Details)
$32.09
5 037-6024-00 037-6024-00 - All MZ Models & 2016-2022 Stand-On (36" Deck) Spindle Bearing
$34.35
6 037-6025-00 037-6025-00 - Spindle Shaft - All MZ/MZ Magnum & 2016-2022 Stand-On (36" Deck)
$60.98
7 037-6027-00 037-6027-00 - Spindle Housing For 037-2000-00 Spindle Assembly (See Models Used On For Details)
$99.32
8 037-6028-00 037-6028-00 - Spacer for 037-2000-00 Spindle
$14.19
9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
12 039-2127-00 039-2127-00 - Deck Hanger (See Models Used On For Details) (obsolete)
use part #039-2127-17
$15.60
13 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
14 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
15 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
16 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
17 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
18 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
19 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
20 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
21 019-0002-00 019-0002-00 - 5/16 Fender Washer
$2.99
22 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
23 039-4891-00 039-4891-00 - Discharge Chute Bracket 48 MZ (Upper)
$35.43
24 039-4892-00 039-4892-00 - 2017-2022 MZ Discharge Chute Bracket (Lower) (obsolete)
use part #039-4890-00
$35.43
25 206-6020-00 206-6020-00 - Chute Hanger
$28.39
26 210-6014-00 210-6014-00 - Discharge Chute Rubber Only (See Models Used On For Details)
$53.49
