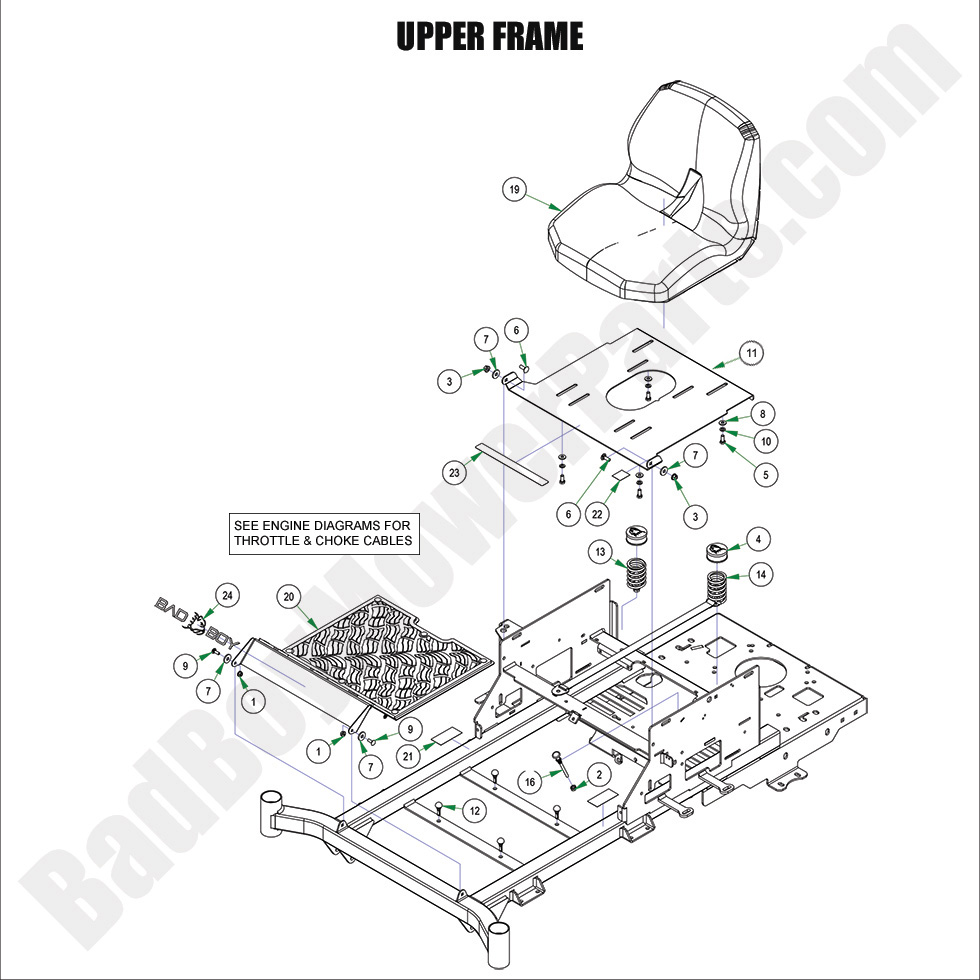

2024 MZ Magnum - Upper Frame Assembly

2024 MZ Magnum - Upper Frame Assembly

The 2024 MZ Magnum Upper Frame Assembly provides the structure and strength necessary to support the mower's critical components. At BadBoyMowerParts.com, we offer a comprehensive selection of Bad Boy Mower Parts for the 2024 MZ Magnum Upper Frame Assembly, so you can easily maintain or replace any parts as needed. Our Bad Boy Mower Part Diagrams allow you to quickly identify the components of the upper frame assembly, ensuring you get the correct parts for repairs. Whether you're searching for Bad Boy Lawn Mower Parts to replace worn or damaged frame components, we provide high-quality options that fit perfectly. Shopping Bad Boy Parts Online is simple, and we offer Free Shipping On Orders Over $100, ensuring your repairs are cost-effective. Keep your 2024 MZ Magnum in optimal working order by visiting our site for all your upper frame assembly needs.

Bad Boy Mower Parts Lookup

2024 MZ Magnum - Upper Frame Assembly
  Position Number SKU Product Title Price
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
5 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
6 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
7 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
8 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
9 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
10 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
11 026-2022-00 026-2022-00 - Seat Plate (See Models Used On For Detail)
$119.99
12 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
13 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
14 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
19 071-1000-22 071-1000-22 - 2022 - 2024 Magnum Seat
$429.99
21 091-0214-00 091-0214-00 - LH/RH Steering Control Decal (See Models Used On For Details)
$9.34
22 091-0339-18 091-0339-18 - Brake Decal (See Models Used On For Details)
$11.76
23 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
24 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
