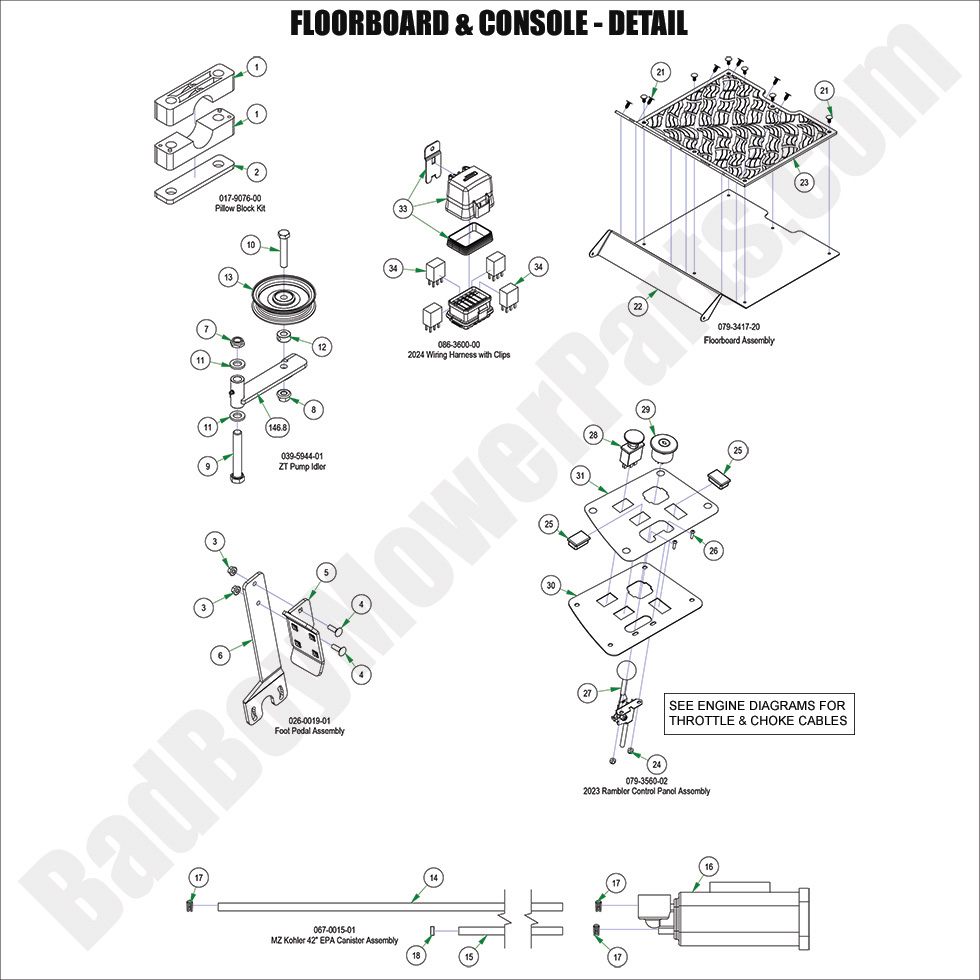

2024 MZ Rambler - Floorboard & Console - Detail

2024 MZ Rambler - Floorboard & Console - Detail

The 2024 MZ Rambler Floorboard & Console - Detail are essential components that ensure your mower is both functional and comfortable. At BadBoyMowerParts.com, we provide a wide selection of Bad Boy Mower Parts for the 2024 MZ Rambler Floorboard & Console - Detail, so you can easily replace or maintain these key parts. Our Bad Boy Mower Part Diagrams allow you to identify the specific parts you need for your mower’s floorboard and console, making repairs straightforward. Whether you’re looking for Bad Boy Lawn Mower Parts to replace a damaged floorboard or enhance your console, we offer high-quality components to meet your needs. Shopping Bad Boy Parts Online ensures you get the correct parts quickly and conveniently. Plus, with Free Shipping On Orders Over $100, you’ll enjoy additional savings while keeping your 2024 MZ Rambler comfortable and efficient. Visit us today for all your floorboard and console needs.

Bad Boy Mower Parts Lookup

2024 MZ Rambler - Floorboard & Console - Detail
  Position Number SKU Product Title Price
1.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
2 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
3.0 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
6 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
7.0 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
7 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
8 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
9 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
10 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
11 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
12 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
13 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
14.0 067-0015-01 067-0015-01 - MZ Briggs EPA Cannister Assy (obsolete)
use part #067-0015-00
$46.78
14 051-2023-01 051-2023-01 - 3/16 Vinyl 53" EPA Line
$9.67
15 051-2027-01 051-2027-01 - 3/16 Clear 44" EPA Line
$7.25
16 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78
17 072-0002-00 072-0002-00 - 5.5 mm Vinyl Hose Clamp
$2.99
18 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
21 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
22 079-3417-00 079-3417-00 - 2017-2024 Floorboard (See Models Used On For Details)
$145.95
23 081-4001-00 081-4001-00 - 2021-2024 Floor Mat W/ Reaper Tread
$53.49
24 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
25 018-1040-00 018-1040-00 - Light Plug
$2.99
26 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
28 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
29 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
30 079-3461-00 079-3461-00 - Control Panel--Orange
$23.53
31 091-4072-00 091-4072-00 - Control Panel Decal
$9.89
33.0 086-3600-00 086-3600-00 - Wiring Harness With Clips (See Models Used On For Details)
$299.99
33 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
34 086-1202-19 086-1202-19 - Relay Terminal
$24.97
