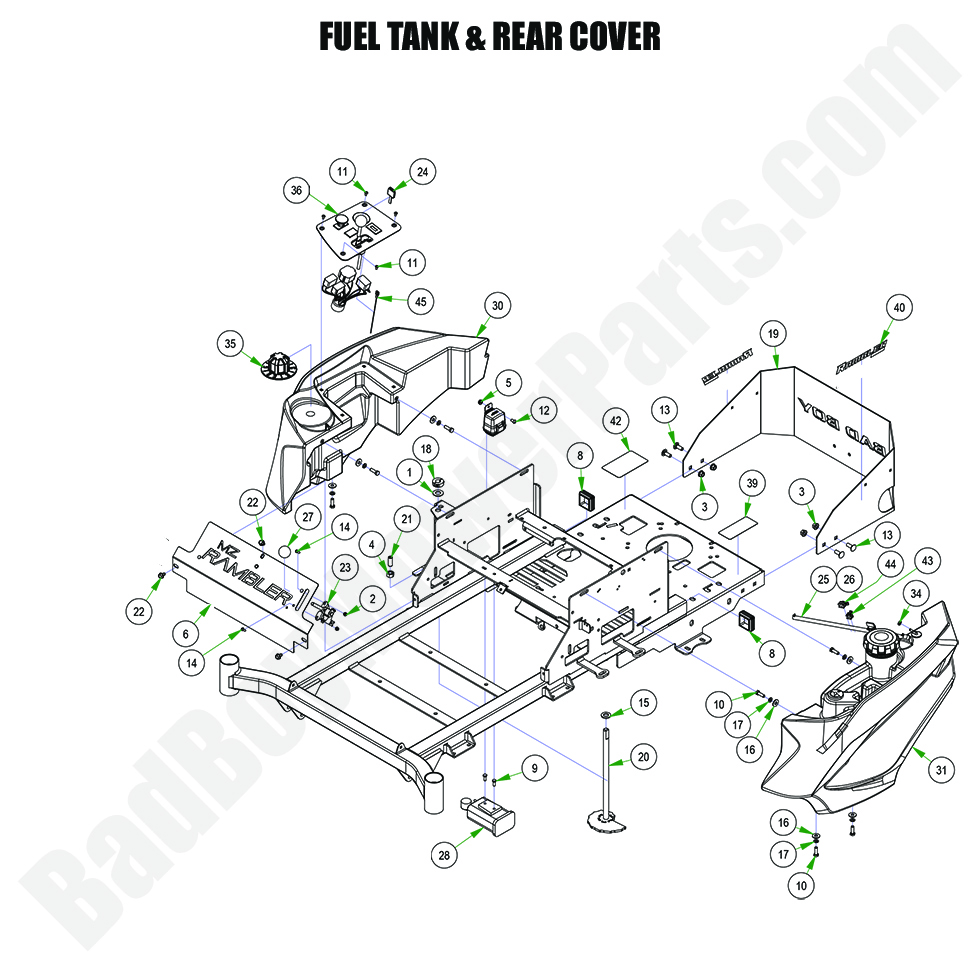

2024 MZ Rambler - Fuel Tank & Rear Cover

2024 MZ Rambler - Fuel Tank & Rear Cover

The 2024 MZ Rambler Fuel Tank & Rear Cover are crucial components that help maintain your mower’s fuel efficiency and protection. At BadBoyMowerParts.com, we offer a wide variety of Bad Boy Mower Parts for the 2024 MZ Rambler Fuel Tank & Rear Cover, so you can easily find replacement or upgrade parts. Our Bad Boy Mower Part Diagrams provide clear visual guides to help you quickly identify the exact components you need for the fuel tank and rear cover. Whether you need Bad Boy Lawn Mower Parts to replace a damaged fuel tank or rear cover, or you’re looking to enhance these features, we have reliable parts available. Shopping Bad Boy Parts Online is simple and convenient, and our website makes finding parts a breeze. Plus, we offer Free Shipping On Orders Over $100, so you can save on delivery while getting the right parts for your 2024 MZ Rambler.

Bad Boy Mower Parts Lookup

2024 MZ Rambler - Fuel Tank & Rear Cover
  Position Number SKU Product Title Price
1 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
2 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
6 014-3317-23 014-3317-23 - 2023 Rambler Cooler Cover Assembly
$74.89
8 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
9 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
10 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
11 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
12 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
13 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
14 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
15 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
16 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
17 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
18 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
19 026-0223-00 026-0223-00 2022-2024 MZ Rear Plate
$90.99
20 028-0007-17 028-0007-17 - 2018-2022 MZ Magnum Deck Height Rod Assy.
$28.88
21 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
22 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
23 039-0035-22 039-0035-22 - MZ Brake Plate Assembly w/ Brake Cable
$53.49
24 042-9000-00 042-9000-00 - Ignition Key
$4.06
27 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
28 067-0015-01 067-0015-01 - MZ Briggs EPA Cannister Assy (obsolete)
use part #067-0015-00
$46.78
30 067-2080-50 067-2080-50 - Right Side Console (See Models Used On For Details)
$228.99
31 067-2090-50 067-2090-50 - Left Side Fuel Tank 2017-2024 MZ & MZ Magnum
$248.99
34 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
35 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
40 091-0508-00 091-0508-00 - MY24 Rambler Back Plate Decal
$10.99
42 091-3017-00 091-3017-00 - Pump Belt Route Decal
$4.92
45 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
