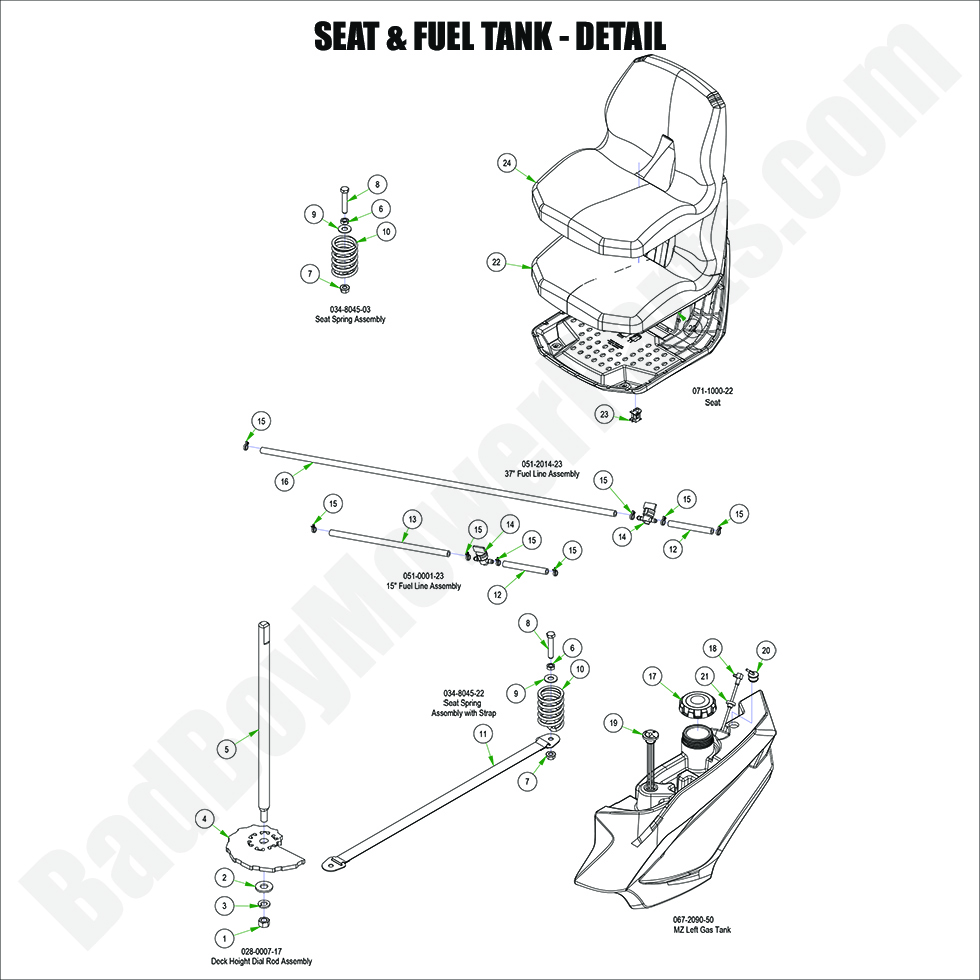

2024 MZ Rambler - Seat & Fuel Tank - Detail

2024 MZ Rambler - Seat & Fuel Tank - Detail

The 2024 MZ Rambler Seat & Fuel Tank - Detail ensures both comfort and functionality while mowing. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts for the 2024 MZ Rambler Seat & Fuel Tank - Detail, allowing you to easily replace or maintain these key components. Our Bad Boy Mower Part Diagrams help you identify the parts you need for the seat and fuel tank, making it easy to locate the right components. Whether you're looking for Bad Boy Lawn Mower Parts to enhance comfort or replace damaged parts, we have high-quality components available. Shopping Bad Boy Parts Online makes it convenient to place an order, and our website is designed for quick navigation. Plus, we offer Free Shipping On Orders Over $100, ensuring that you can save on shipping while keeping your 2024 MZ Rambler performing at its best. Visit us today!

Bad Boy Mower Parts Lookup

2024 MZ Rambler - Seat & Fuel Tank - Detail
  Position Number SKU Product Title Price
1.0 028-0007-17 028-0007-17 - 2018-2022 MZ Magnum Deck Height Rod Assy.
$28.88
1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
2 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
3 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
4 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
5 028-0007-00 028-0007-00 - 2017-2024 MZ Deck Height Dial Rod
$31.17
6.0 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
6.0 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
6 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
7 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
8 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
10 034-8045-00 034-8045-00 - Seat Spring
$20.49
11 064-8083-00 064-8083-00 Seat Strap w/Buckles
$24.60
12 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
14 067-6057-00 067-6057-00 2 Way Fuel Shut-Off Valve
$16.04
15 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
16 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
17.0 067-2090-50 067-2090-50 - Left Side Fuel Tank 2017-2024 MZ & MZ Magnum
$248.99
17 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
18 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
19 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
20 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
21 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
22.0 071-1000-22 071-1000-22 - 2022 - 2024 Magnum Seat
$429.99
