2024 MZ Rambler - Seat & Upper Frame Assembly

2024 MZ Rambler - Seat & Upper Frame Assembly

The 2024 MZ Rambler Seat & Upper Frame Assembly is a vital component for ensuring your mower is both comfortable and functional. At BadBoyMowerParts.com, we provide a range of Bad Boy Mower Parts for the 2024 MZ Rambler Seat & Upper Frame Assembly, making it simple to replace or repair these critical parts. Our Bad Boy Mower Part Diagrams make it easy to locate and identify the components needed for your seat and upper frame assembly. Whether you’re replacing worn parts or upgrading your mower for added comfort, we offer a variety of Bad Boy Lawn Mower Parts to suit your needs. Shopping Bad Boy Parts Online ensures that you can find the exact parts quickly, and our website allows for easy ordering. Plus, with Free Shipping On Orders Over $100, you can save while keeping your 2024 MZ Rambler in excellent working condition.

Bad Boy Mower Parts Lookup

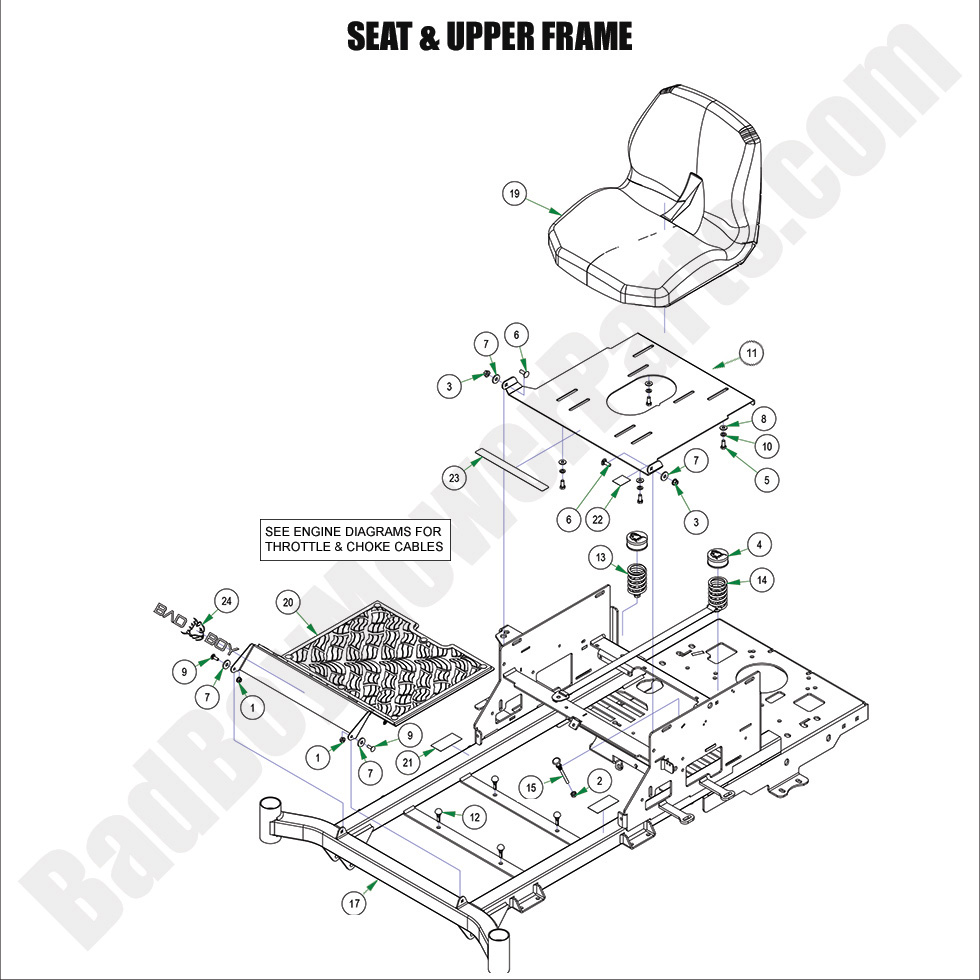

2024 MZ Rambler - Seat & Upper Frame Assembly
  Position Number SKU Product Title Price
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
5 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
6 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
7 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
8 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
9 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
10 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
11 026-2022-00 026-2022-00 - Seat Plate (See Models Used On For Detail)
$119.99
12 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
13 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
14 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
19 071-1000-22 071-1000-22 - 2022 - 2024 Magnum Seat
$429.99
21 091-0214-00 091-0214-00 - LH/RH Steering Control Decal (See Models Used On For Details)
$9.34
22 091-0339-18 091-0339-18 - Brake Decal (See Models Used On For Details)
$11.76
23 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
24 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
