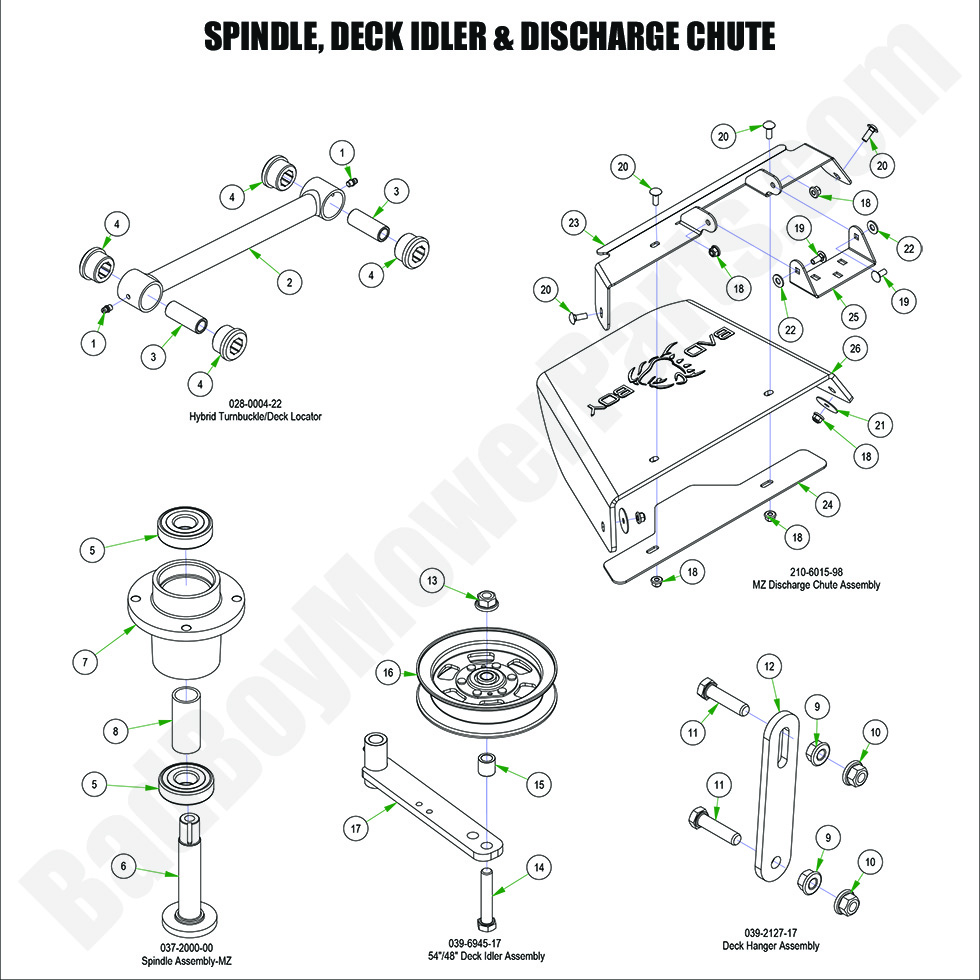

2024 MZ Rambler - Spindle, Idler & Discharge Chute

2024 MZ Rambler - Spindle, Idler & Discharge Chute

The 2024 MZ Rambler Spindle, Idler & Discharge Chute are critical components that ensure the smooth operation of your mower's cutting system. At BadBoyMowerParts.com, we offer a wide range of Bad Boy Mower Parts for the 2024 MZ Rambler Spindle, Idler & Discharge Chute, making it easy to replace or maintain these essential components. Our Bad Boy Mower Part Diagrams provide clear visual guides to help you find the right parts for the spindle, idler, and discharge chute, ensuring you make the correct choice. Whether you need Bad Boy Lawn Mower Parts to replace a damaged spindle or improve the discharge system, we have the quality parts you need. Shopping Bad Boy Parts Online is convenient and efficient, and our website allows you to find and order the parts quickly. Plus, we offer Free Shipping On Orders Over $100, saving you on delivery costs while keeping your 2024 MZ Rambler running smoothly.

Bad Boy Mower Parts Lookup

2024 MZ Rambler - Spindle, Idler & Discharge Chute
  Position Number SKU Product Title Price
1.0 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
1 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
3 048-6004-00 048-6004-00 - Maverick/Compact Outlaw Topllink Bushing Sleeve (See Models Used On For Details)
$11.29
4 048-6005-00 048-6005-00 - Toplink Bushing (See Models Used On For Details)
$32.09
5.0 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
5 037-6024-00 037-6024-00 - All MZ Models & 2016-2022 Stand-On (36" Deck) Spindle Bearing
$34.35
6 037-6025-00 037-6025-00 - Spindle Shaft - All MZ/MZ Magnum & 2016-2022 Stand-On (36" Deck)
$60.98
7 037-6027-00 037-6027-00 - Spindle Housing For 037-2000-00 Spindle Assembly (See Models Used On For Details)
$99.32
8 037-6028-00 037-6028-00 - Spacer for 037-2000-00 Spindle
$14.19
9.0 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
12 039-2127-00 039-2127-00 - Deck Hanger (See Models Used On For Details) (obsolete)
use part #039-2127-17
$15.60
13.0 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
13 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
14 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
15 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
16 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
17 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
18.0 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
18 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
19 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
20 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
21 019-0002-00 019-0002-00 - 5/16 Fender Washer
$2.99
22 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
23 039-4891-00 039-4891-00 - Discharge Chute Bracket 48 MZ (Upper)
$35.43
24 039-4892-00 039-4892-00 - 2017-2022 MZ Discharge Chute Bracket (Lower) (obsolete)
use part #039-4890-00
$35.43
25 206-6020-00 206-6020-00 - Chute Hanger
$28.39
26 210-6014-00 210-6014-00 - Discharge Chute Rubber Only (See Models Used On For Details)
$53.49
