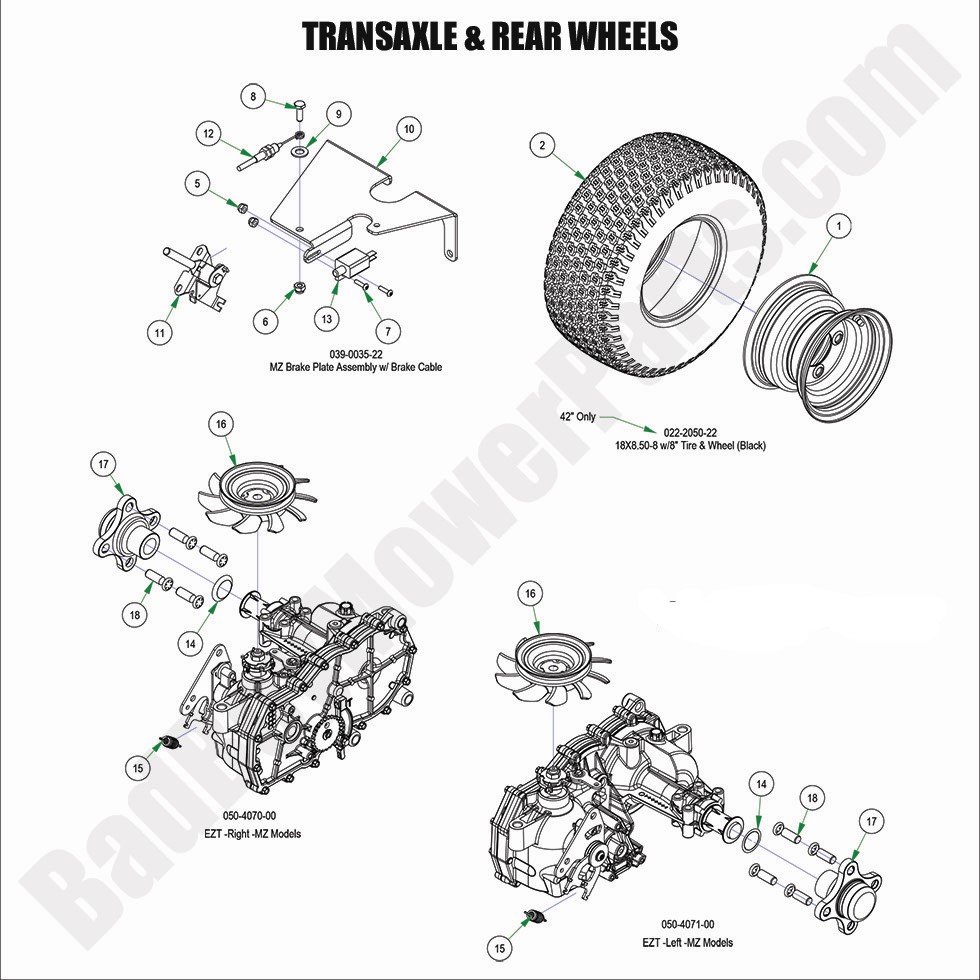

2024 MZ Rambler - Transaxle & Rear Wheels

2024 MZ Rambler - Transaxle & Rear Wheels

The 2024 MZ Rambler Transaxle & Rear Wheels are essential parts that ensure your mower moves efficiently and performs optimally. At BadBoyMowerParts.com, we offer an extensive selection of Bad Boy Mower Parts for the 2024 MZ Rambler Transaxle & Rear Wheels, so you can easily replace or maintain these vital components. Our Bad Boy Mower Part Diagrams provide detailed visuals, helping you find exactly what you need for the transaxle and rear wheels. Whether you need Bad Boy Lawn Mower Parts to replace a worn-out transaxle or upgrade your rear wheels, we have high-quality components available. Shopping Bad Boy Parts Online is quick and convenient, and our website makes it easy to find and order the parts you need. Plus, enjoy Free Shipping On Orders Over $100, saving you money on delivery while keeping your 2024 MZ Rambler in excellent working condition. Shop with us today!

Bad Boy Mower Parts Lookup

2024 MZ Rambler - Transaxle & Rear Wheels
  Position Number SKU Product Title Price
1.0 022-2050-22 022-2050-22 - 18x8.50-8 w/8" Tire & Wheel (Black)
$229.99
1 022-2051-22 022-2051-22 - Rim for 022-2050-22
$106.99
2 022-2052-22 022-2052-22 - Tire for 022-2050-22 18x8.5-8
$189.99
5.0 039-0035-22 039-0035-22 - MZ Brake Plate Assembly w/ Brake Cable
$53.49
5 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
6 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
7 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
8 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
9 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
10 039-0035-00 039-0035-00 - MZ Brake Lock Bracket (See Models Used On for more details)
$9.61
11 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
12 064-8057-17 064-8057-17 - 2017-2025 MZ Brake Cable- 18.37" CABLE ONLY
$25.54
13 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
14.0 050-4070-00 050-4070-00 - 2017-2025 - Right Transaxle - MZ Models
$599.99
14.1 050-4071-00 050-4071-00 - 2017-2025 - Left Transaxle- MZ Models
$599.99
14 015-8003-00 015-8003-00 - MZ Series Transaxle Seal & Retainer Kit
$86.54
15 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
16 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
17 050-2078-00 050-2078-00 - MZ 4 Bolt Hub Kit (See Models Used On For Details)
$95.22
18 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
