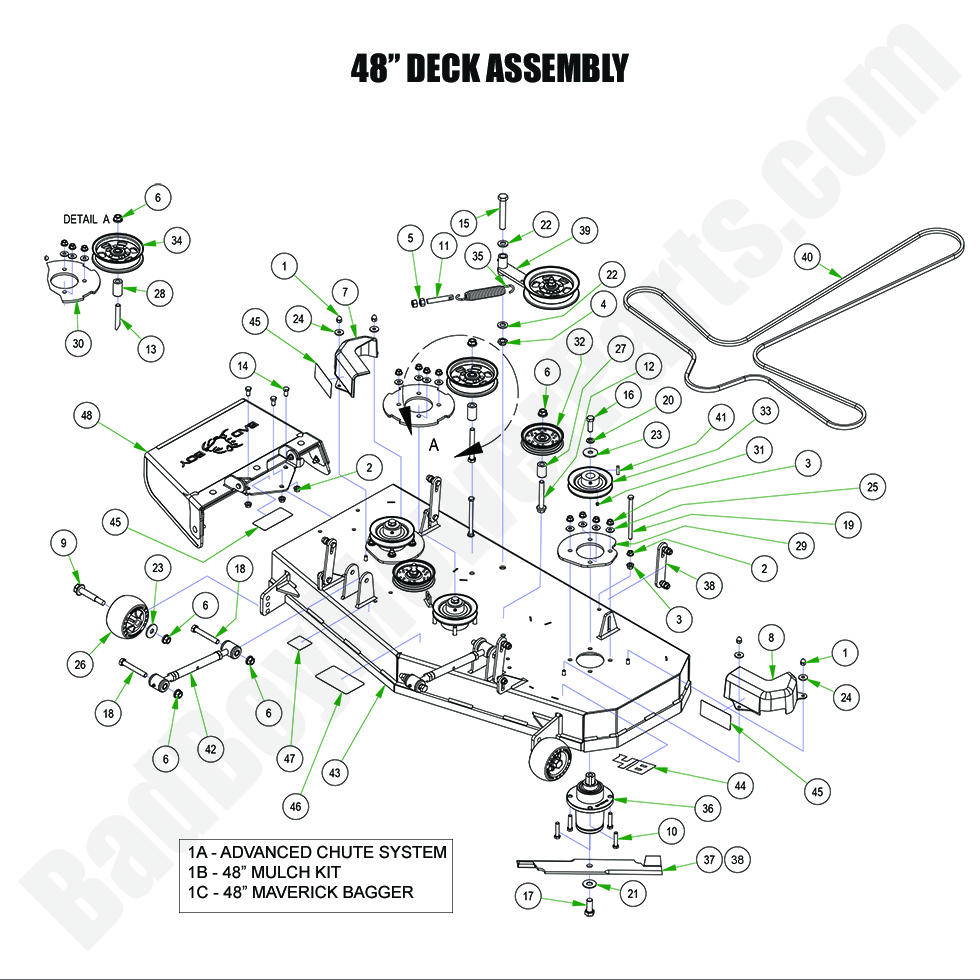

2024 Maverick - 48" Deck Assembly

2024 Maverick - 48" Deck Assembly

For precision cutting and superior performance, your 2024 Maverick 48" Deck Assembly must be in top condition. At BadBoyMowerParts.com, we offer everything you need to maintain and repair your mower’s deck. From blades to spindles, belts, and pulleys, our high-quality Bad Boy Mower Parts ensure smooth operation. Our detailed Bad Boy Mower Part Diagrams help you quickly identify and order the correct components, saving you time and effort. Whether you're replacing worn-out Bad Boy Lawn Mower Parts or upgrading for better performance, we provide top-tier solutions. Find all your Bad Boy Parts Online, ensuring a perfect fit for your 2024 Maverick. Plus, with Free Shipping On Orders Over $100, maintaining your mower has never been more affordable. Keep your 2024 Maverick 48" Deck Assembly operating at peak performance by shopping at BadBoyMowerParts.com today.

Bad Boy Mower Parts Lookup

2024 Maverick - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1C 092-4001-23 092-4001-23 Top Discharge Bagger (2017-2025 48" Maverick & Maverick HD)
$2399.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
8 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
9 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
10 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
11 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
12 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
17 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
18 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
19 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
22 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
25 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
26 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
27 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
28 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
29 026-0024-00 026-0024-00 - 42 & 48 Deck Spindle Support Plate
$14.19
30 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
31 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
32 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
33 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
34 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
35 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
36 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
37 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
37a 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
38 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
39 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
40 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
41 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
42 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
43 060-2312-00 060-2312-00 - 2023 48" ZT/Maverick/HD Deck--Painted
$999.99
44 091-0503-00 091-0503-00 - MY24 48" Deck Decal
$10.99
45 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
46 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
47 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
48 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
