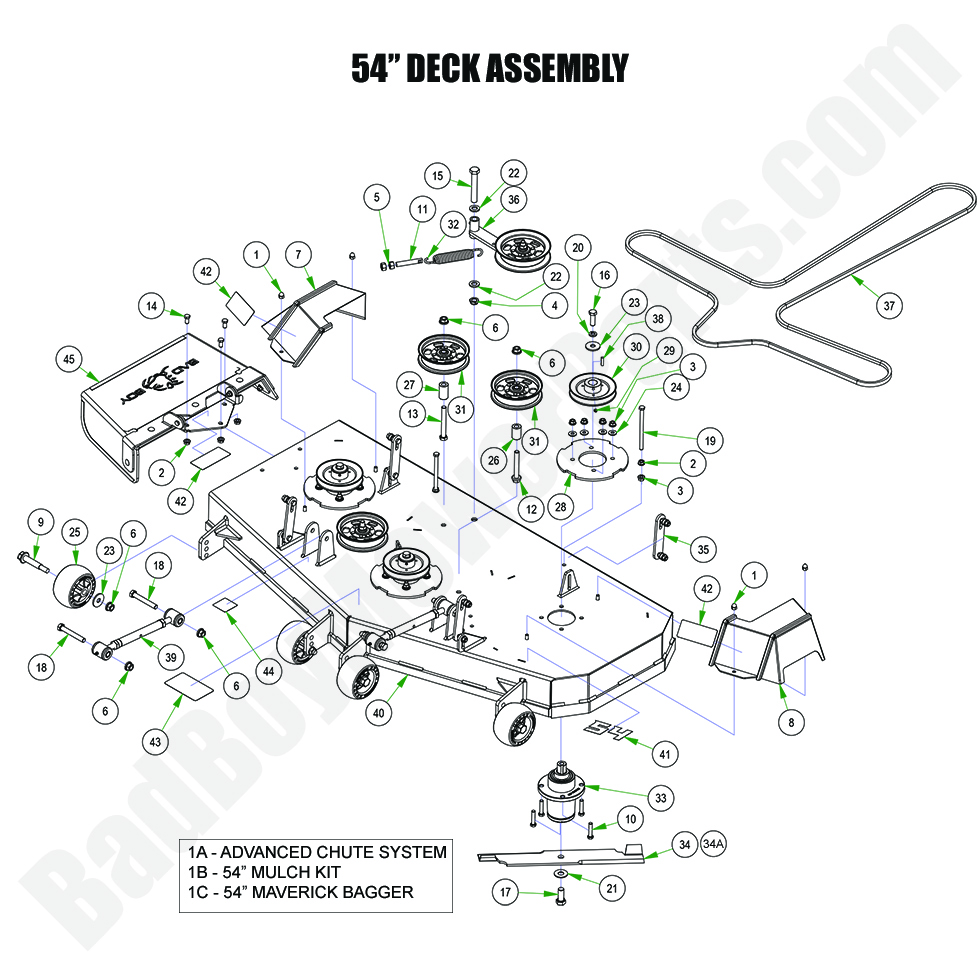

2024 Maverick - 54" Deck Assembly

2024 Maverick - 54" Deck Assembly

Keep your 2024 Maverick 54" Deck Assembly in top condition with premium replacement parts from BadBoyMowerParts.com. A well-maintained deck ensures even cuts and smooth operation, so we stock high-quality Bad Boy Mower Parts, including blades, spindles, pulleys, and belts. Our Bad Boy Mower Part Diagrams provide a clear breakdown of your deck assembly, making it easy to find and order the right components. Whether you need Bad Boy Lawn Mower Parts for routine maintenance or to restore performance, we have you covered. Shop with confidence through our extensive inventory of Bad Boy Parts Online, ensuring you get the right fit for your 2024 Maverick. Plus, take advantage of Free Shipping On Orders Over $100, so you get your deck parts delivered fast and hassle-free. Trust BadBoyMowerParts.com to keep your 2024 Maverick 54" Deck Assembly running at peak performance.

Bad Boy Mower Parts Lookup

2024 Maverick - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1C 092-4003-23 092-4003-23 Top Discharge Bagger (2017-2025 54" ZT Elite, Maverick & Maverick HD)
$2399.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-5020-00 014-5020-00 - 2021-2022 Maverick 54"/60" RH Pulley Cover
$28.39
8 014-5021-00 014-5021-00 - 2021-2022 Maverick 54"/60" LH Pulley Cover
$28.39
9 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
10 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
11 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
12 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
17 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
18 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
19 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
22 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
25 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
26 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
27 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
28 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
29 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
30 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
31 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
32 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
33 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
34 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
34a 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
35 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
36 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
37 041-1560-00 041-1560-00 - Deck Belt (See Models Used On For Details)
$88.80
38 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
39 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
40 060-2314-00 060-2314-00 - 2023 - 2024 - 54" ZT/Maverick/HD Deck--Painted
$1299.99
41 091-0504-00 091-0504-00 - MY24 54" Deck Decal
$10.99
42 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
43 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
44 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
45 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
