2024 Maverick - Discharge Chute

2024 Maverick - Discharge Chute

Find the parts for your 2024 Maverick at BadBoyMowerParts.com. We have the Discharge Chute parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

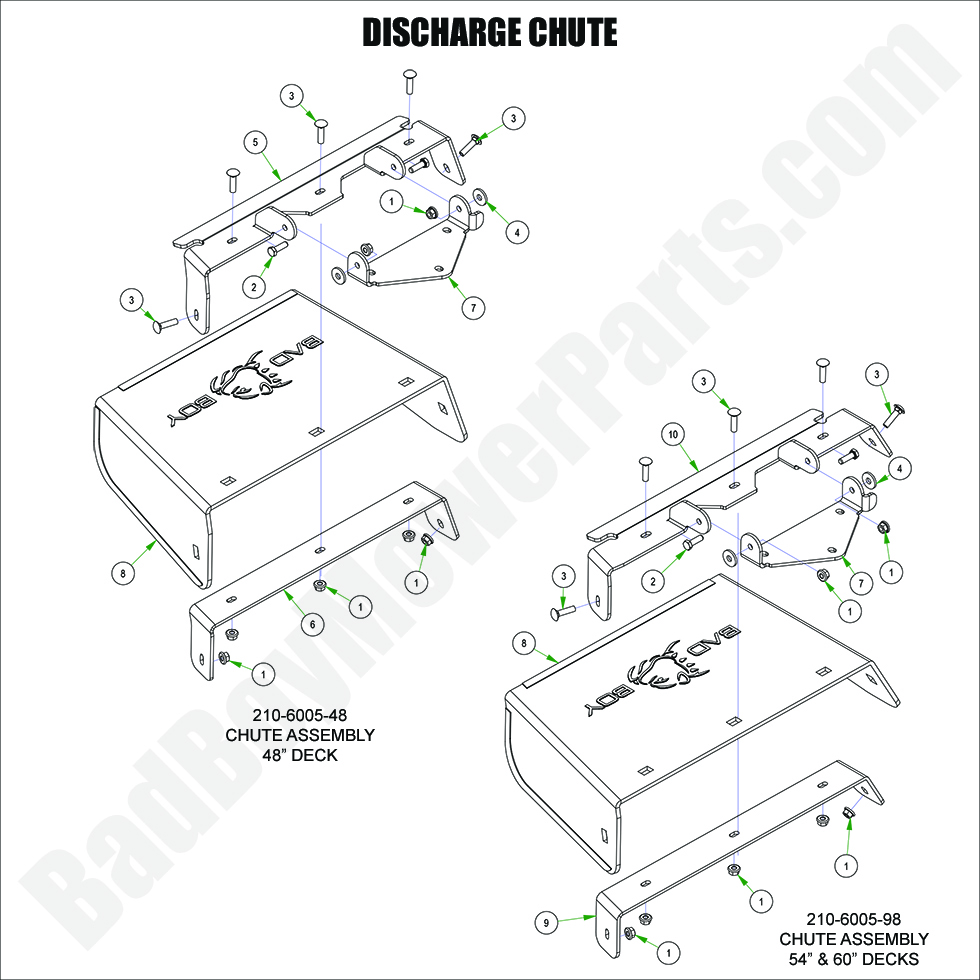

2024 Maverick - Discharge Chute
  Position Number SKU Product Title Price
1.0 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$181.89
1.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$160.49
1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
2 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99

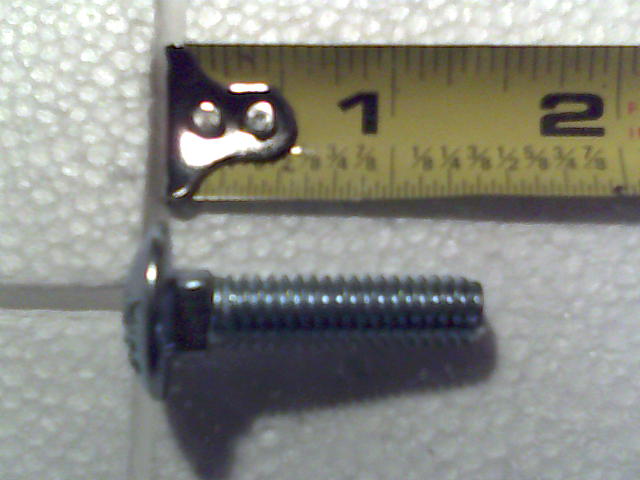

3 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
4 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99

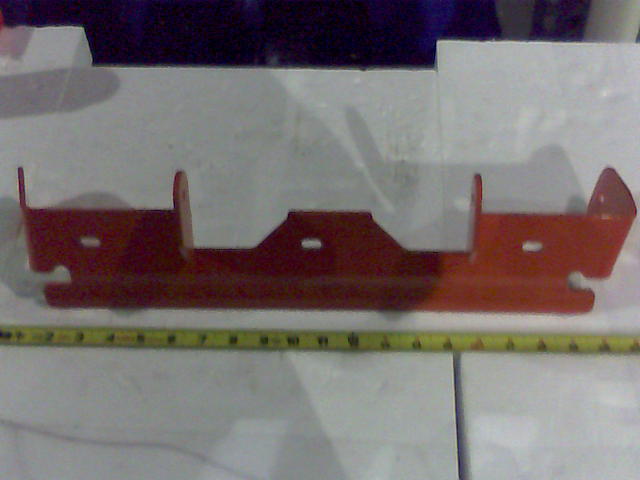

5 039-4870-00 039-4870-00 - 48/52 Discharge Top Bracket Ru bber Chute Assembly
$42.52

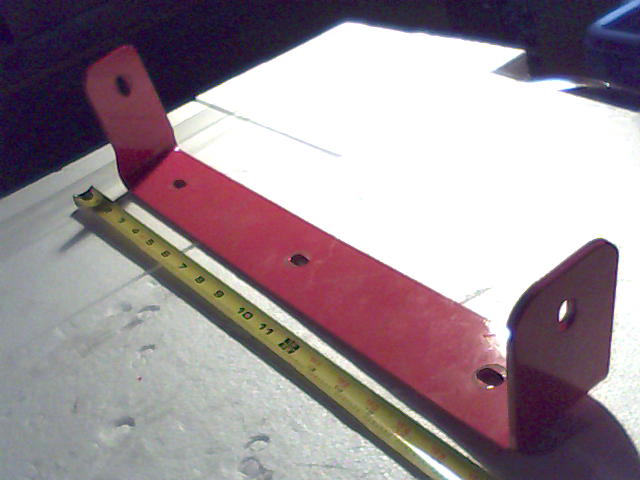

6 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
7 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
8 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91

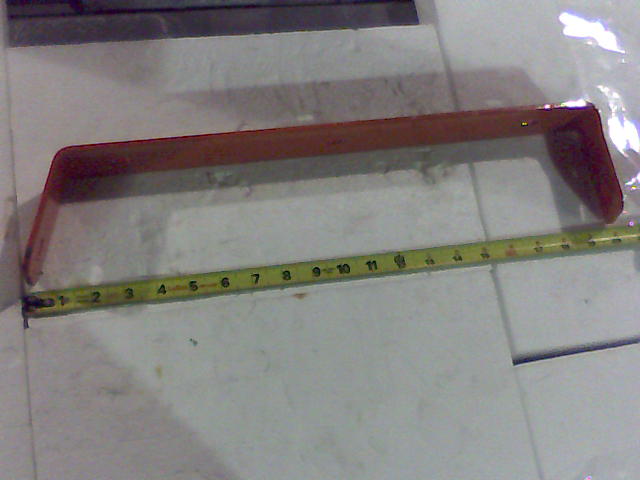

9 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65

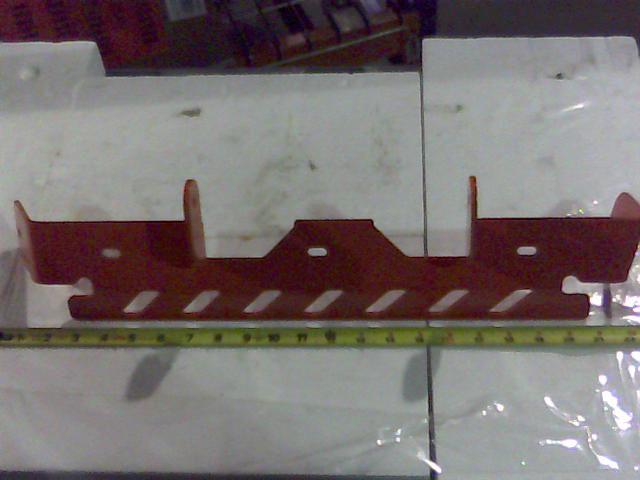

10 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
