2024 Maverick - Drive Arm Assembly

2024 Maverick - Drive Arm Assembly

Maintain the superior handling of your mower with a replacement 2024 Maverick Drive Arm Assembly from BadBoyMowerParts.com. A properly functioning drive arm assembly is essential for precise control and smooth operation. Our inventory includes high-quality Bad Boy Mower Parts that meet factory standards for durability and performance. Using our Bad Boy Mower Part Diagrams, you can quickly locate the exact assembly needed for your 2024 Maverick model. Whether you're replacing a worn-out part or upgrading for improved performance, our extensive stock of Bad Boy Lawn Mower Parts ensures a perfect fit. Shop with confidence through our selection of Bad Boy Parts Online, and get the best deals with Free Shipping On Orders Over $100. Don’t let a faulty drive arm compromise your mower’s efficiency—order your replacement today from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

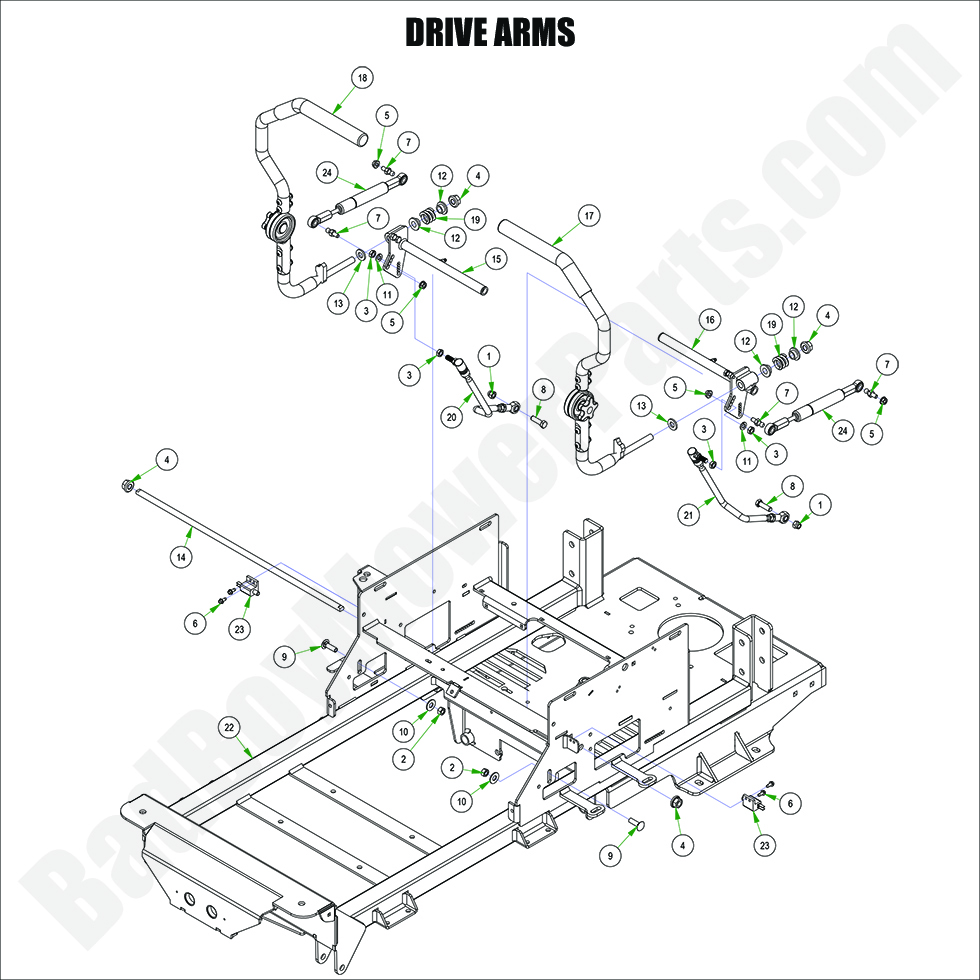

2024 Maverick - Drive Arm Assembly
  Position Number SKU Product Title Price
1 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
7 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
8 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
9 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
10 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
11 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
12 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
13 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
14 028-0049-00 028-0049-00 - 2021 Maverick Steering Actuator Rod
$21.39
15 031-0053-21 031-0053-21 - 2021-2022 Maverick Drive Arm Actuator RH Assembly
$42.79
16 031-0054-21 031-0054-21 - 2021-2022 Maverick Drive Arm Actuator LH Assembly
$42.79
17 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
18 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
19 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
20 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
21 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
23 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
24 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
