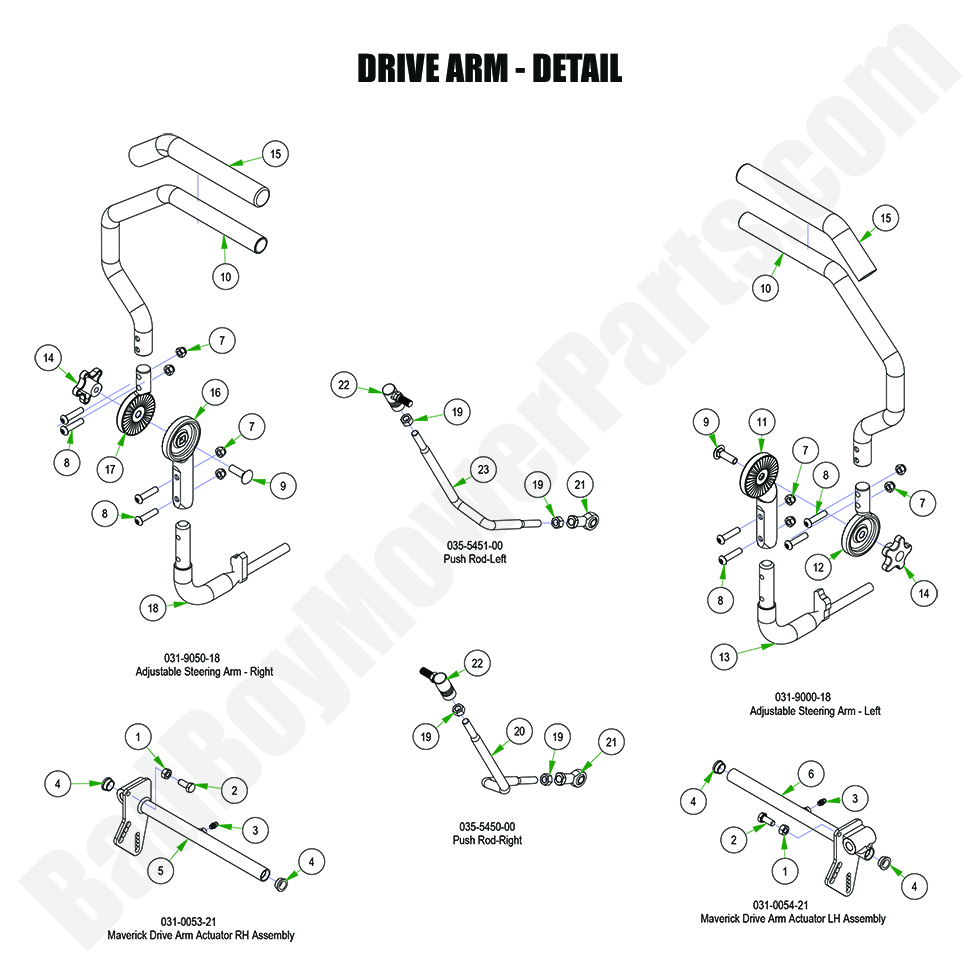

2024 Maverick - Drive Arm - Detail

2024 Maverick - Drive Arm - Detail

The 2024 Maverick Drive Arm - Detail is a crucial component for smooth steering and maneuverability. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts to ensure your mower operates with precision. Our Bad Boy Mower Part Diagrams give you a detailed breakdown of the drive arm, helping you identify and order the correct replacement parts. Whether you're dealing with wear and tear or need a complete drive arm replacement, our selection of Bad Boy Lawn Mower Parts has you covered. We offer Bad Boy Parts Online, making it simple to find exactly what you need without hassle. Plus, take advantage of Free Shipping On Orders Over $100, so you can restore your 2024 Maverick’s steering performance affordably. Trust BadBoyMowerParts.com for durable, long-lasting drive arm components that keep your mower in peak condition.

Bad Boy Mower Parts Lookup

2024 Maverick - Drive Arm - Detail
  Position Number SKU Product Title Price
1.0 031-0053-21 031-0053-21 - 2021-2022 Maverick Drive Arm Actuator RH Assembly
$42.79
1.1 031-0054-21 031-0054-21 - 2021-2022 Maverick Drive Arm Actuator LH Assembly
$42.79
1 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
2 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
3 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
4 031-0032-00 031-0032-00 - Drive Arm Bushing (Plastic Flange)
$7.28
7.0 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
7.1 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
7 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
8 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
9 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
10 031-9010-18 031-9010-18 - Upper Steering Arm (See Models Used On For Details)
$28.32
11 031-9014-18 031-9014-18 - Black Lower Adjuster Steering Arm 2019-2022 Maverick, Compact Outlaw
$53.24
12 031-9017-18 031-9017-18 - Black Upper Adjuster - Steering Arm (See Models Used On For Details)
$53.24
13 031-9020-18 031-9020-18 - Left Black Steering Arm Elbow
$85.17
14 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
15 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
16 031-9015-18 031-9015-18 - Left Lower Steering Arm Adjuster Black
$53.24
17 031-9016-18 031-9016-18 - Black Upper Adjuster - Steering Arm (See Models Used On For Details)
$53.24
18 031-9025-18 031-9025-18 - 2019 and Newer Black Steering Arm Elbow - Right
$85.17
19.0 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
19.1 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
19 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
21 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
22 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
