2024 Maverick - Engine - Briggs CXI

2024 Maverick - Engine - Briggs CXI

The 2024 Maverick Engine - Briggs CXI is built for power, reliability, and efficiency, making it a crucial component of your mower. At BadBoyMowerParts.com, we stock premium Bad Boy Mower Parts to keep your Briggs CXI engine running smoothly. From air filters and spark plugs to fuel pumps and gaskets, we provide everything you need for maintenance and repairs. Our Bad Boy Mower Part Diagrams make finding the right engine components simple, ensuring a precise match for your model. With a full inventory of Bad Boy Lawn Mower Parts, you can trust us for high-quality replacements that extend the life of your engine. Shopping for Bad Boy Parts Online is easy, and you’ll save even more with Free Shipping On Orders Over $100. Keep your 2024 Maverick Engine - Briggs CXI running at peak performance by ordering from BadBoyMowerParts.com today.

Bad Boy Mower Parts Lookup

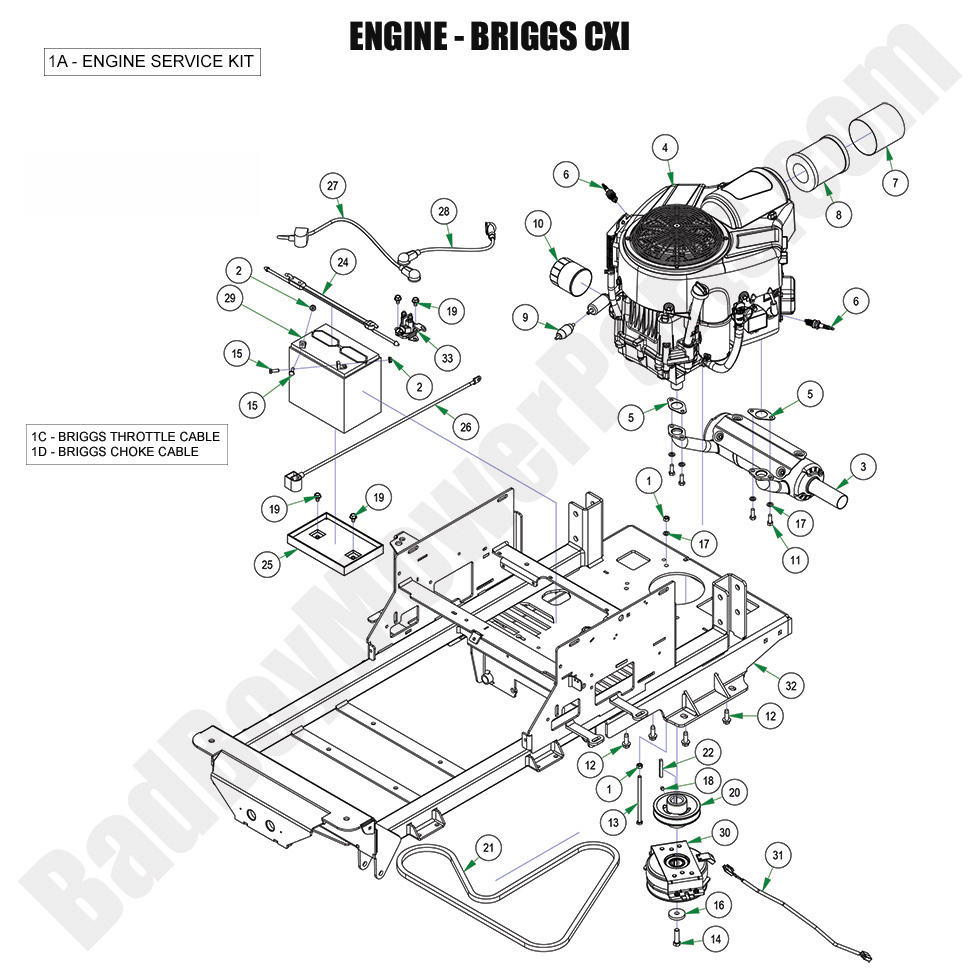

2024 Maverick - Engine - Briggs CXI
  Position Number SKU Product Title Price
1A 063-2000-04 063-2000-04 - Briggs 30hp & CXI Engine Service Kit
$92.93
1C 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
1D 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
1 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
2 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
3 015-0057-00 015-0057-00 - 2017-2024 Exhaust 810 Vanguard
$169.99
4 015-0511-00 015-0511-00 - Vangaurd 27hp CXI with Out Oil Filter
$3099.99
5 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
6 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
7 063-1000-00 063-1000-00 - Pre-Cleaner for 063-3003-00
$12.83
8 063-1005-00 063-1005-00 - Air Filter for Vanguard CXI Engine (obsolete)
use part #063-3003-00
$44.93
9 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
10 063-8018-00 063-8018-00 - Oil Filter
$21.39
11 018-0017-00 018-0017-00 - Vanguard Exhaust Torx Bolt
$5.82
12 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
13 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
14 018-5450-21 018-5450-21 - 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch
$2.99
15 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
16 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
17 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
18 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
19 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
20 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
21 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
22 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
24 043-8930-00 043-8930-00 2023 - Rubber Battery Hold Down Strap
$21.39
25 043-8931-00 043-8931-00 - 2023 Battery Tray Only
$20.32
26 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
27 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
28 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
30 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
31 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
33 108-0001-00 108-0001-00 - Solenoid
$29.41
