2024 Maverick - Engine - Kawasaki FS730V

2024 Maverick - Engine - Kawasaki FS730V

Power your 2024 Maverick with the reliable Kawasaki FS730V engine, and ensure it stays in peak condition with high-quality parts from BadBoyMowerParts.com. Our selection of Bad Boy Mower Parts includes everything you need to maintain and repair your FS730V engine, from oil filters to ignition coils. With our detailed Bad Boy Mower Part Diagrams, you can quickly identify and purchase the exact parts required for your mower. Whether you're performing routine maintenance or making a critical repair, our extensive stock of Bad Boy Lawn Mower Parts ensures long-lasting performance. We make shopping for Bad Boy Parts Online hassle-free, with an easy ordering process and fast shipping. Plus, take advantage of Free Shipping On Orders Over $100 and get the best value on genuine Kawasaki FS730V engine parts. Keep your 2024 Maverick running strong by ordering from BadBoyMowerParts.com today.

Bad Boy Mower Parts Lookup

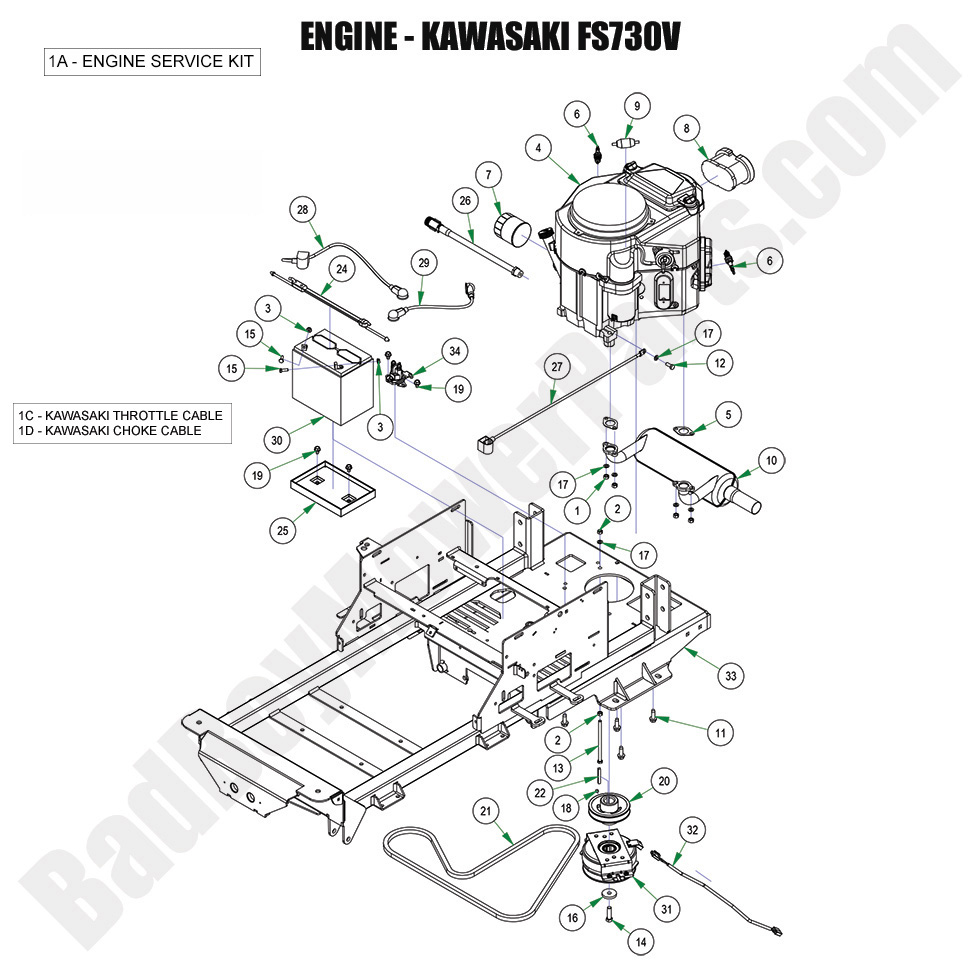

2024 Maverick - Engine - Kawasaki FS730V
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1C 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
1D 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
3 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
4 015-0045-00 015-0045-00 - 26hp FS730V Engine FS730V-S14-R (See Models Used On For Details)
$2299.99
5 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
6 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
7 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
8 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
9 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
10 015-0052-00 015-0052-00 - Kawasaki Exhaust MZ/ZT/Maverick/Compact Outlaw (See Models Used On For Details)
$217.48
11 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
12 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
13 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
14 018-5450-21 018-5450-21 - 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch
$2.99
15 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
16 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
17 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
18 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
19 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
20 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
21 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
22 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
24 043-8930-00 043-8930-00 2023 - Rubber Battery Hold Down Strap
$21.39
25 043-8931-00 043-8931-00 - 2023 Battery Tray Only
$20.32
26 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
27 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
28 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
29 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
31 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
32 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
34 108-0001-00 108-0001-00 - Solenoid
$29.41
