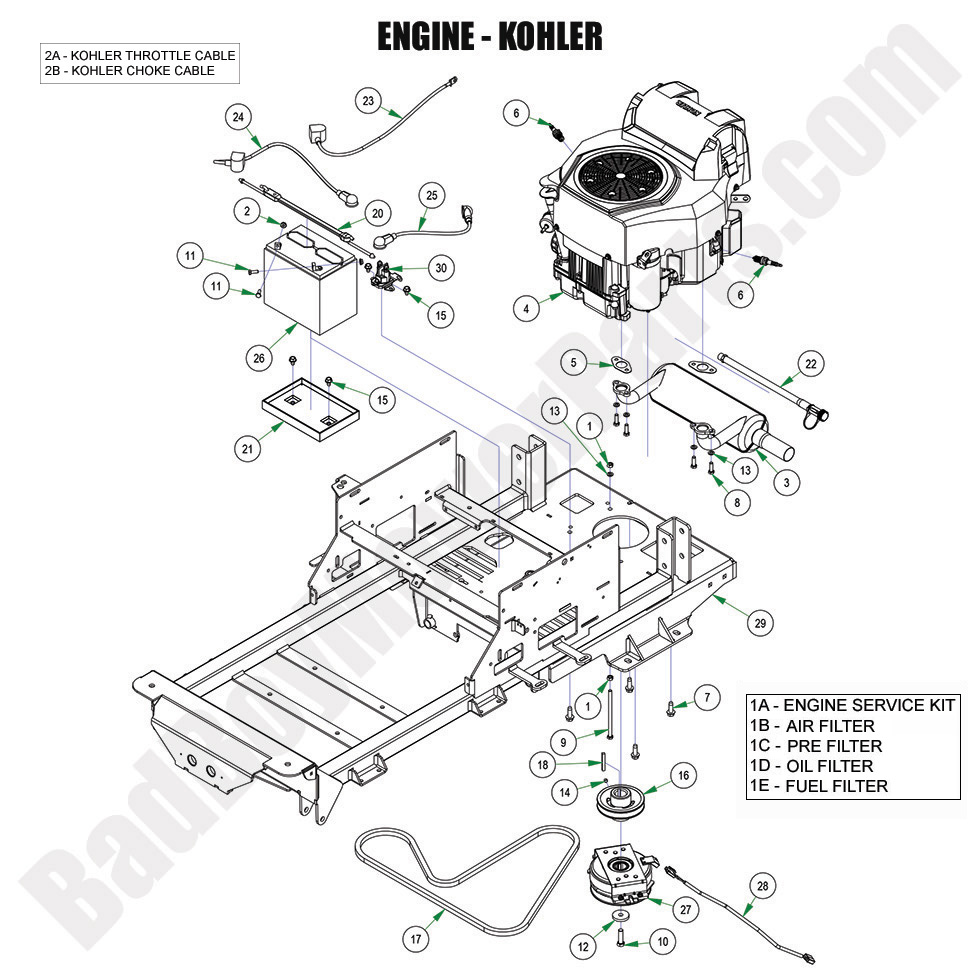

2024 Maverick - Engine - Kohler ZT740

2024 Maverick - Engine - Kohler ZT740

The Kohler ZT740 engine powers the 2024 Maverick, delivering unmatched reliability and performance. At BadBoyMowerParts.com, we carry the essential Bad Boy Mower Parts needed to maintain and repair your Kohler ZT740 engine. Whether you need fuel filters, air filters, or engine gaskets, our inventory has the right parts for you. Our Bad Boy Mower Part Diagrams provide a clear breakdown of your engine components, making it easy to find the perfect fit. For those looking for high-quality Bad Boy Lawn Mower Parts, we offer a comprehensive selection to keep your 2024 Maverick performing at its best. Our Bad Boy Parts Online store allows you to browse and order with ease, ensuring you get the right components without delay. Plus, with Free Shipping On Orders Over $100, maintaining your Kohler ZT740 engine is even more affordable. Order today from BadBoyMowerParts.com for top-tier engine parts.

Bad Boy Mower Parts Lookup

2024 Maverick - Engine - Kohler ZT740
  Position Number SKU Product Title Price
1A 063-2000-07 063-2000-07 - Kohler Confidant (ZT740) Engine Service Kit
$102.57
1B 063-5005-00 063-5005-00 - Air Filter for Kohler ZT740
$50.28
1C 063-5006-00 063-5006-00 - Kohler ZT740 Precleaner
$9.47
1D 063-5004-00 063-5004-00 - Oil Filter for Kohler KT725, KT740, KT745, ZT740, CV749 & ECV749 Engines
$29.69
1E 063-5001-00 063-5001-00 - Kohler Fuel Filter
$19.25
1 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
3 015-0051-00 015-0051-00 - 2017-2024 Kohler Exhaust MZ/ZT/Maverick
$217.48
4 015-2030-00 015-2030-00 - 25hp Kohler- ZT740-3048
$2799.00
5 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
6 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
7 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
8 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
9 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
10 018-5450-21 018-5450-21 - 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch
$2.99
11 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
12 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
13 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
14 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
15 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
16 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
17 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
18 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
20 043-8930-00 043-8930-00 2023 - Rubber Battery Hold Down Strap
$21.39
21 043-8931-00 043-8931-00 - 2023 Battery Tray Only
$20.32
22 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
23 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
24 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
25 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
27 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
28 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
30 108-0001-00 108-0001-00 - Solenoid
$29.41
