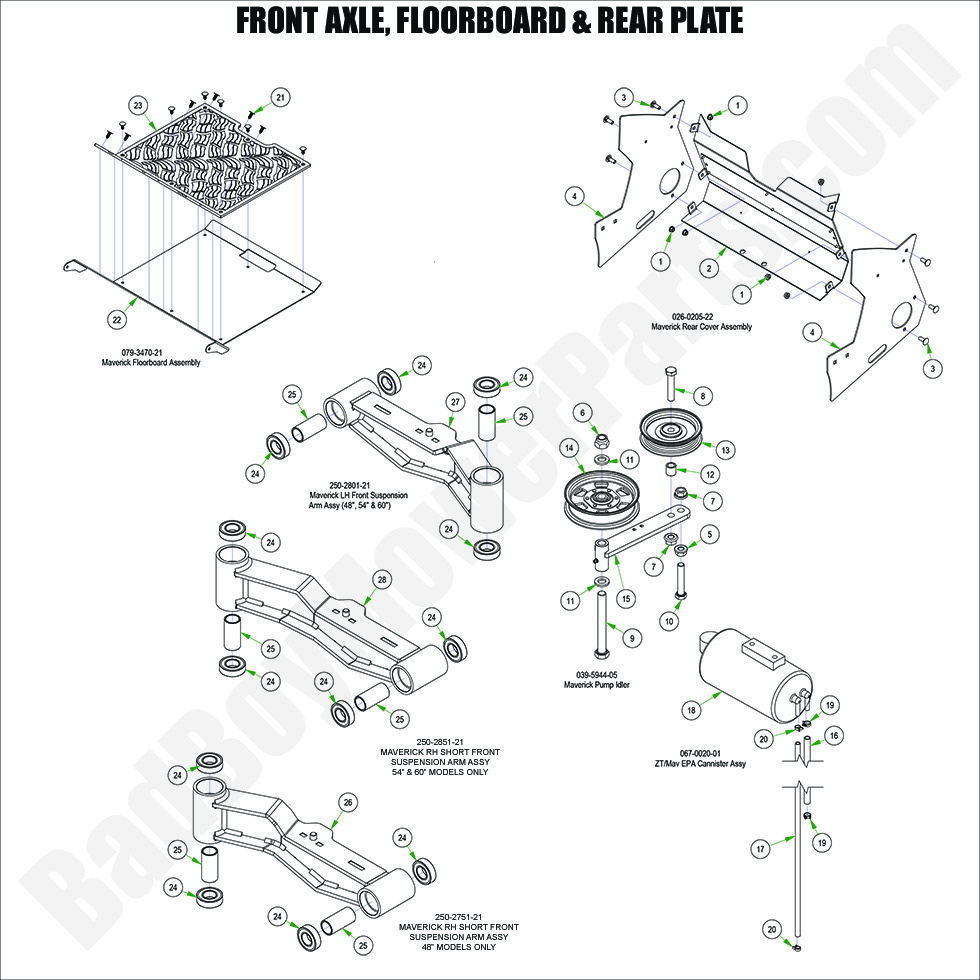

2024 Maverick - Front Axle, Floorboard & Rear Plate

2024 Maverick - Front Axle, Floorboard & Rear Plate

Ensure the structural integrity and smooth operation of your 2024 Maverick with a durable Front Axle, Floorboard & Rear Plate from BadBoyMowerParts.com. These essential components provide stability and comfort while mowing, making them critical Bad Boy Mower Parts to maintain. Our Bad Boy Mower Part Diagrams offer a detailed look at each component, ensuring you get the right replacement for your mower. Whether you're dealing with wear and tear or upgrading for better performance, our collection of Bad Boy Lawn Mower Parts has everything you need. We offer Bad Boy Parts Online so you can conveniently shop for floorboards, rear plates, and front axles from home. With Free Shipping On Orders Over $100, getting the right parts for your 2024 Maverick is both easy and cost-effective. Keep your mower in top condition by ordering from BadBoyMowerParts.com today.

Bad Boy Mower Parts Lookup

2024 Maverick - Front Axle, Floorboard & Rear Plate
  Position Number SKU Product Title Price
1.0 026-0205-22 026-0205-22 - 2022 Maverick Rear Cover Assembly
$189.99
1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
2 014-5300-00 014-5300-00 - 2021-2022 Maverick Rear Cover Assembly
$222.99
3 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
4 026-0226-00 026-0226-00 Rear Cover Side Plate - Painted
$42.79
5.0 039-5944-05 039-5944-05 - Pump Idler Bracket Assy-EZT
$70.97
5 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
6 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
9 018-6016-00 018-6016-00 - 5/8 x 5 1/2 Bolt
$2.99
10 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
11 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
12 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
13 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
14 033-8000-00 033-8000-00 - 5 3/4 Pump Idler Pulley-5/8 Bore 2016-2025 Maverick
$35.48
15 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
16.0 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
16 051-2020-01 051-2020-01 - 1/4 Vinyl 46" EPA Line (See Models Used On For Details)
$12.48
18 067-0020-00 067-0020-00 - Carbon Canister
$62.40
19 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
20 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
21.0 079-3470-21 079-3470-21 - 2021 Maverick Floorboard Assembly
$159.99
21 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
22 079-3470-18 079-3470-18 - Floor Panel 2018-2024 Maverick, 2021-2024 ZT Elite
$106.99
23 081-4001-00 081-4001-00 - 2021-2024 Floor Mat W/ Reaper Tread
$53.49
24.0 250-2801-21 250-2801-21 - 2021 and Newer Maverick LH Front Suspension Arm Assy
$132.68
24.1 250-2851-21 250-2851-21 - 2021 and Newer Maverick RH Long Front Suspension Arm Assy
$149.99
24.2 250-2751-21 250-2751-21 - 2021 Maverick RH Arm Assembly - Short
$199.99
24 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
25 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
26 250-2751-00 250-2751-00 - I-Beam Front Arm Short-RH--Painted
$129.99
27 250-2801-00 250-2801-00 - I-Beam Front Arm-LH--Painted (See Models Used On For Details)
$93.64
28 250-2851-00 250-2851-00 - I-Beam Front Arm Long-RH--Painted
$93.64
