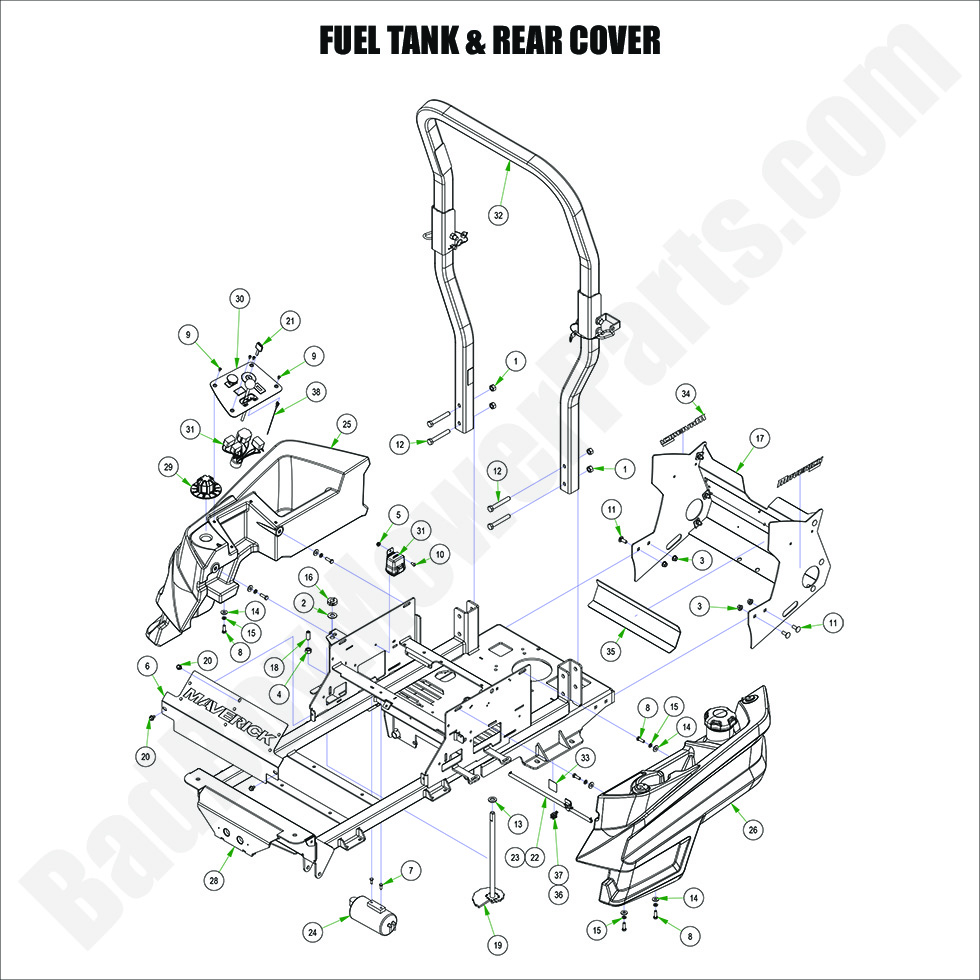

2024 Maverick - Fuel Tank & Rear Cover

2024 Maverick - Fuel Tank & Rear Cover

A properly functioning 2024 Maverick Fuel Tank & Rear Cover is essential for keeping your mower running efficiently and safely. At BadBoyMowerParts.com, we provide durable Bad Boy Mower Parts that ensure a secure and leak-free fuel system. Whether you need a replacement tank, fuel cap, or rear cover, our Bad Boy Mower Part Diagrams make it easy to locate the correct part for your model. With our inventory of Bad Boy Lawn Mower Parts, you’ll find everything necessary to maintain your fuel system for optimal performance. Our user-friendly store offers Bad Boy Parts Online, making it simple to browse and order from home. Plus, enjoy Free Shipping On Orders Over $100, giving you the best value on fuel system components. Keep your 2024 Maverick running safely and efficiently by ordering from BadBoyMowerParts.com today.

Bad Boy Mower Parts Lookup

2024 Maverick - Fuel Tank & Rear Cover
  Position Number SKU Product Title Price
1 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
2 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99

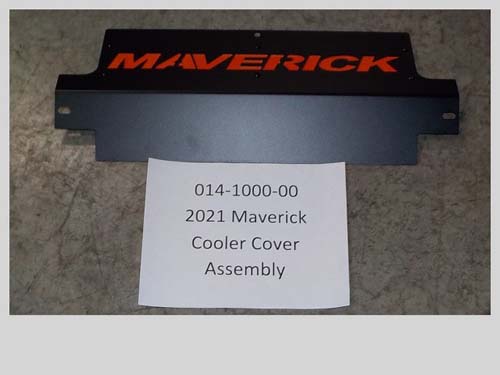

6 014-1000-00 014-1000-00 - 2021-2025 Maverick Cooler Cover Assembly
$129.99
7 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
8 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
9 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
10 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
11 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
12 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
13 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
14 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
15 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
16 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
17 026-0205-22 026-0205-22 - 2022 Maverick Rear Cover Assembly
$189.99
18 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
19 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
20 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
21 042-9000-00 042-9000-00 - Ignition Key
$4.06
24 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
25 067-2020-00 067-2020-00 - 2021-2022 Maverick Right Side Tank
$248.99
26 067-2021-00 067-2021-00 - 2021-2024 Maverick Left Side Tank
$349.99
29 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
31 086-3600-00 086-3600-00 - Wiring Harness With Clips (See Models Used On For Details)
$299.99
32 089-0005-00 089-0005-00 - 2x2 Folding ROPS (See Models Used On For Details)
$796.75
34 091-0512-00 091-0512-00 - MY24 Maverick Back Plate Decal
$2.99
35 091-4050-00 091-4050-00 - Heat Shield (Fiberglass Adhesive)
$14.19
38 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
