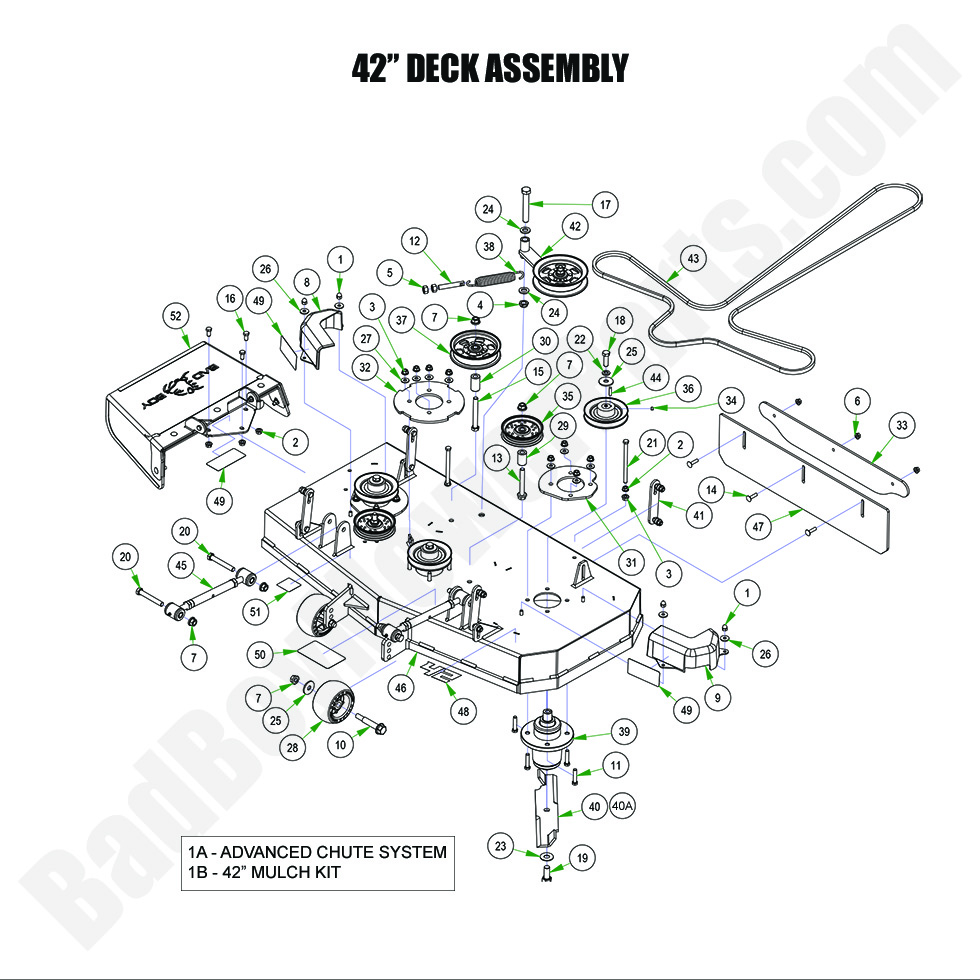

2024 Maverick HD - 42" Deck Assembly

2024 Maverick HD - 42" Deck Assembly

The 2024 Maverick HD 42" Deck Assembly is built for precision cutting and long-lasting durability. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts to maintain the integrity of your deck. Whether you need spindles, blades, or belts, our Bad Boy Mower Part Diagrams help you find the correct components for your 2024 Maverick HD. Using genuine Bad Boy Lawn Mower Parts ensures a clean, professional cut every time. Shopping for Bad Boy Parts Online makes it easy to find exactly what you need without hassle. Don’t forget that Free Shipping On Orders Over $100 makes maintaining your deck assembly more affordable. Keep your 2024 Maverick HD 42" Deck Assembly in top condition with reliable replacement parts from BadBoyMowerParts.com, ensuring your mower performs at its best.

Bad Boy Mower Parts Lookup

2024 Maverick HD - 42" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-4235-00 210-4235-00 - 42" Maverick HD Mulch Kit w/ Blades
$318.45
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
9 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
10 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
11 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
12 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
13 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
14 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
15 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
16 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
17 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
18 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
19 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
20 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
21 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
24 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
25 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
26 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
27 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
28 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
29 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
30 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
31 026-0024-00 026-0024-00 - 42 & 48 Deck Spindle Support Plate
$14.19
32 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
33 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
34 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
35 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
36 033-6005-00 033-6005-00 - 42 Maverick HD Spindle Pulley
$23.53
37 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
38 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
39 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
40A 038-4227-00 038-4227-00 - 42" Gator Blade
$21.99
40 038-4226-00 038-4226-00 - 42" High Lift Blade-Outlaw
$21.99
41 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
42 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97

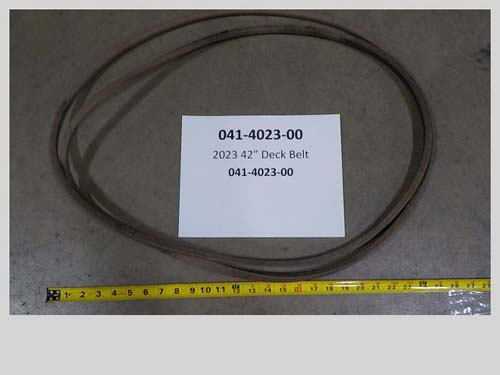

43 041-4023-00 041-4023-00 - 42" Deck Belt
$78.01
44 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
45 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
46 060-2310-00 060-2310-00 - 42" 2023 Maverick HD-Deck--Painted
$999.99
47 084-5006-00 084-5006-00 - 2023 ZT Stripe Kit Rubber
$56.77
49 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
50 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
51 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
