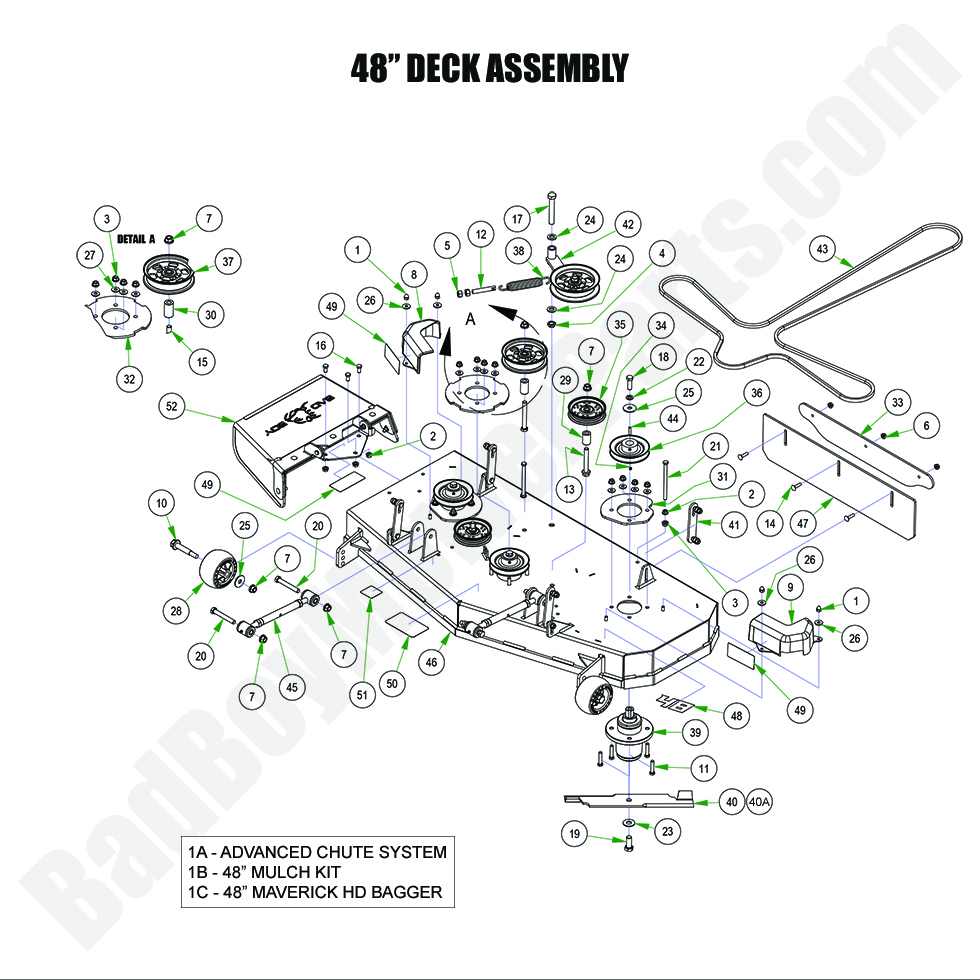

2024 Maverick HD - 48" Deck Assembly

2024 Maverick HD - 48" Deck Assembly

For those who need a wider cutting range, the 2024 Maverick HD 48" Deck Assembly delivers efficiency and durability. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts to keep your mower’s deck performing flawlessly. Our detailed Bad Boy Mower Part Diagrams make it easy to find the right spindles, blades, and pulleys for your 2024 Maverick HD. With top-quality Bad Boy Lawn Mower Parts, you can ensure your mower operates at peak performance. Ordering Bad Boy Parts Online is quick and convenient, allowing you to replace worn-out parts with ease. Plus, enjoy Free Shipping On Orders Over $100, making deck maintenance more budget-friendly. Keep your 2024 Maverick HD 48" Deck Assembly in optimal condition with the best replacement parts from BadBoyMowerParts.com today.

Bad Boy Mower Parts Lookup

2024 Maverick HD - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1C 092-4001-23 092-4001-23 Top Discharge Bagger (2017-2025 48" Maverick & Maverick HD)
$2399.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
9 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
10 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
11 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
12 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
13 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
14 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
15 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
16 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
17 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
18 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
19 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
20 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
21 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
24 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
25 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
26 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
27 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
28 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
29 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
30 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
31 026-0024-00 026-0024-00 - 42 & 48 Deck Spindle Support Plate
$14.19
32 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
33 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
34 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
35 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
36 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
37 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
38 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
39 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
40A 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
40 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
41 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
42 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
43 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
44 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
45 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
46 060-2312-00 060-2312-00 - 2023 48" ZT/Maverick/HD Deck--Painted
$999.99
47 084-5006-00 084-5006-00 - 2023 ZT Stripe Kit Rubber
$56.77
48 091-0503-00 091-0503-00 - MY24 48" Deck Decal
$10.99
49 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
50 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
51 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
52 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
