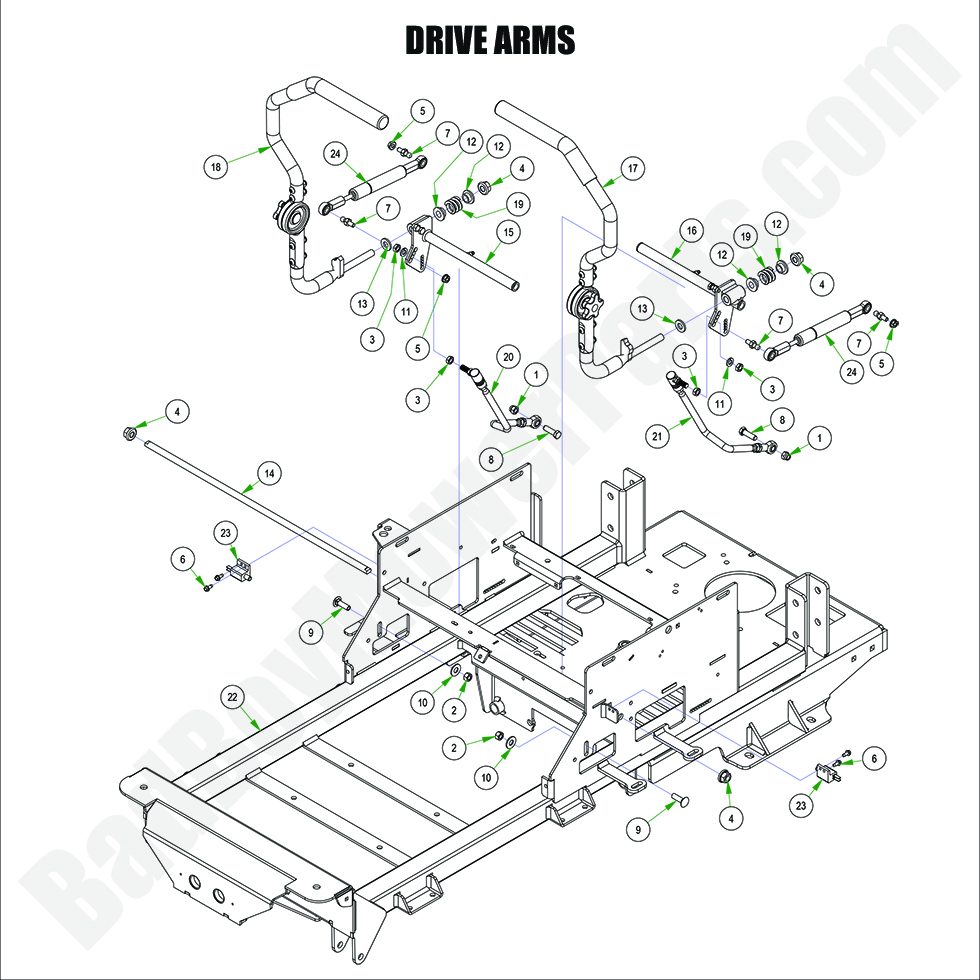

2024 Maverick HD - Drive Arm Assembly

2024 Maverick HD - Drive Arm Assembly

The 2024 Maverick HD Drive Arm Assembly is an essential part of your mower’s drive mechanism, ensuring smooth operation and efficiency. At BadBoyMowerParts.com, we offer a full range of high-quality Bad Boy Mower Parts, including the 2024 Maverick HD Drive Arm Assembly, to keep your mower performing at its best. With our Bad Boy Mower Part Diagrams, you can easily identify the correct parts and understand how they fit together. If you’re looking for Bad Boy Lawn Mower Parts to maintain your mower, we have everything from engine parts to drive components. Shopping Bad Boy Parts Online makes it convenient to find the right parts, and we offer Free Shipping On Orders Over $100 to make it even more affordable. Browse our extensive catalog today to find the 2024 Maverick HD Drive Arm Assembly and keep your mower in top condition.

Bad Boy Mower Parts Lookup

2024 Maverick HD - Drive Arm Assembly
  Position Number SKU Product Title Price
1 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
7 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
8 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
9 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
10 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
11 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
12 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
13 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
14 028-0049-00 028-0049-00 - 2021 Maverick Steering Actuator Rod
$21.39
15 031-0053-21 031-0053-21 - 2021-2022 Maverick Drive Arm Actuator RH Assembly
$42.79
16 031-0054-21 031-0054-21 - 2021-2022 Maverick Drive Arm Actuator LH Assembly
$42.79
17 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
18 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
19 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
20 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
21 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
23 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
24 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
