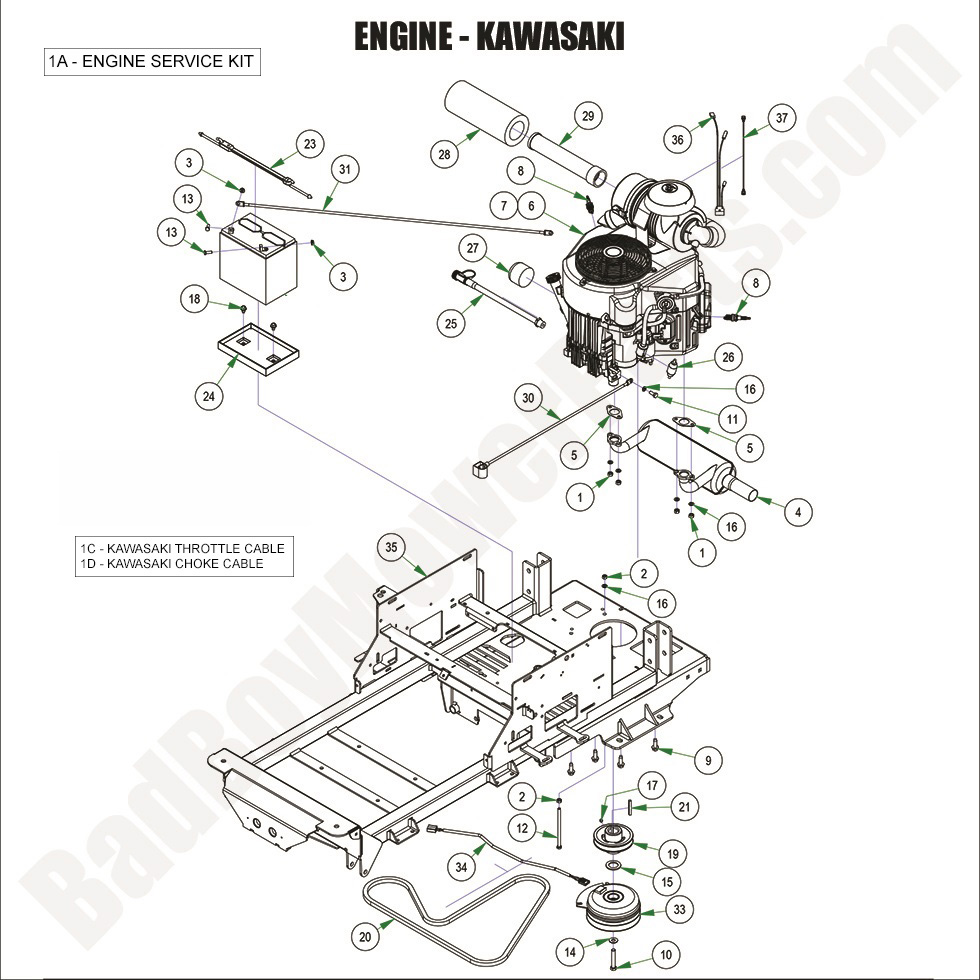

2024 Maverick HD - Engine - Kawasaki FX691/FX730

2024 Maverick HD - Engine - Kawasaki FX691/FX730

For the 2024 Maverick HD Engine - Kawasaki FX691/FX730, you’ll want to ensure you have the right parts to maintain top performance. At BadBoyMowerParts.com, we provide genuine Bad Boy Mower Parts for the 2024 Maverick HD Engine - Kawasaki FX691/FX730, designed to keep your engine running smoothly. Our Bad Boy Mower Part Diagrams offer detailed information, making it easier to identify the exact components needed. Whether you need Bad Boy Lawn Mower Parts for replacement or maintenance, our online store has you covered. By shopping Bad Boy Parts Online, you can easily access the parts you need and have them shipped directly to you. Plus, enjoy the benefit of Free Shipping On Orders Over $100, ensuring you get the best deals while keeping your mower’s engine in top working order.

Bad Boy Mower Parts Lookup

2024 Maverick HD - Engine - Kawasaki FX691/FX730
  Position Number SKU Product Title Price
1A 063-2000-14 063-2000-14 - Kawasaki FX691V & FX730V Engine Service Kit
$127.15
1C 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
1D 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
3 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
4 015-0052-00 015-0052-00 - Kawasaki Exhaust MZ/ZT/Maverick/Compact Outlaw (See Models Used On For Details)
$217.48
5 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
6 015-0691-00 015-0691-00 - FX691 Kawasaki Compact Outlaw
$2599.00
7 015-0730-00 015-0730-00 - FX730 Kawasaki Engine
$2599.00
8 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
9 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
10 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
11 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
12 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
13 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
14 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
15 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
16 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
17 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
18 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
19 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
20 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
21 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
23 043-8930-00 043-8930-00 2023 - Rubber Battery Hold Down Strap
$21.39
24 043-8931-00 043-8931-00 - 2023 Battery Tray Only
$20.32
25 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
26 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
27 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
28 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
29 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
30 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
31 064-8060-00 064-8060-00 - 36" Red Battery Cable (See Models Used On For Details)
$20.93
33 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
34 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
36 086-9002-00 086-9002-00 - Harness Adaptor-Outlaw FX-All
$46.84
37 086-9005-00 086-9005-00 - C-Outlaw Starter Jumper Wire
$23.53
