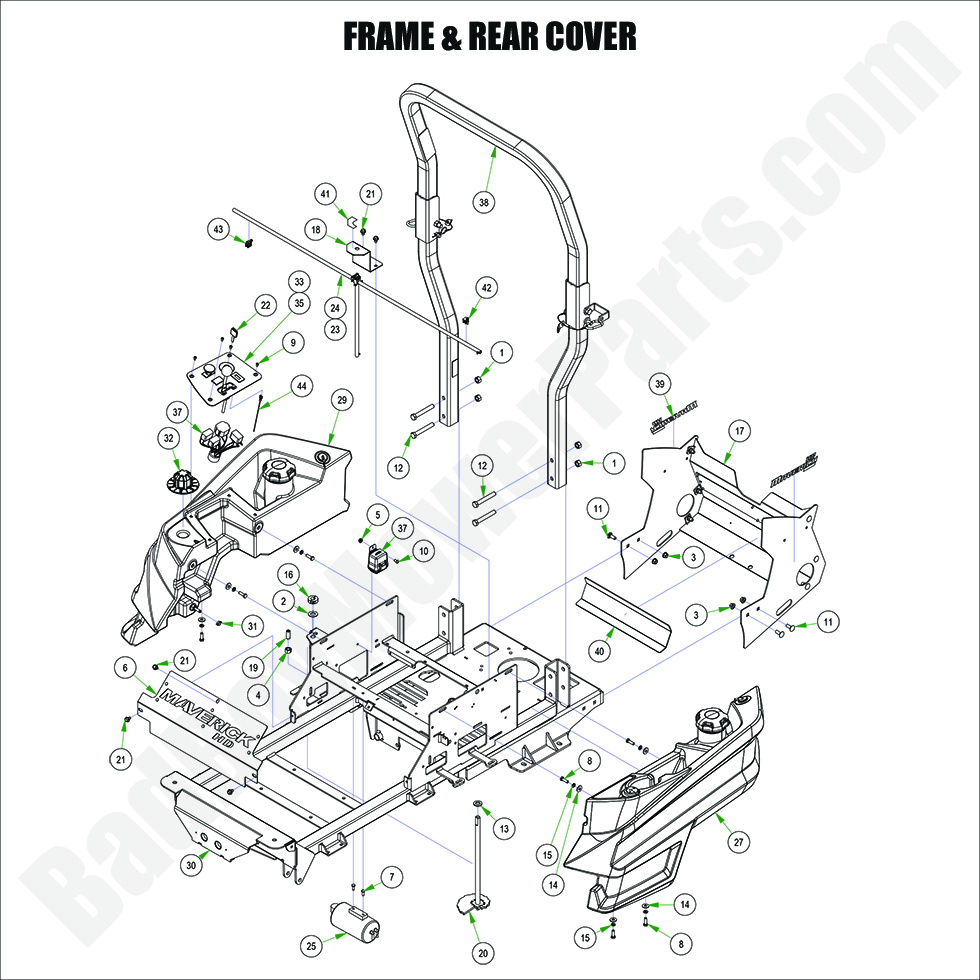

2024 Maverick HD - Frame & Rear Cover

2024 Maverick HD - Frame & Rear Cover

The 2024 Maverick HD Frame & Rear Cover provides the structural foundation and protection your mower needs. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts for the 2024 Maverick HD Frame & Rear Cover to ensure durability and stability. Our comprehensive Bad Boy Mower Part Diagrams help you find the exact components needed to replace or repair the frame and rear cover. If you're looking for Bad Boy Lawn Mower Parts, we offer everything from structural components to accessories that will keep your mower in top condition. By shopping Bad Boy Parts Online, you can quickly find the parts you need and have them delivered right to your door. Don’t forget, we offer Free Shipping On Orders Over $100, making it even easier to get the parts you need to keep your 2024 Maverick HD running smoothly.

Bad Boy Mower Parts Lookup

2024 Maverick HD - Frame & Rear Cover
  Position Number SKU Product Title Price
1 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
2 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99

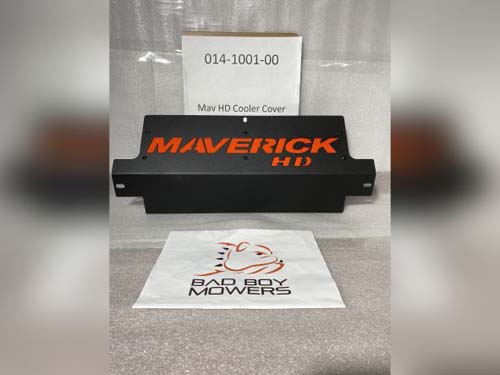

6 014-1001-00 014-1001-00 - Maverick HD Cooler Cover
$109.99
7 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
8 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
9 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
10 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
11 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
12 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
13 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
14 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
15 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
16 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
17 026-0205-22 026-0205-22 - 2022 Maverick Rear Cover Assembly
$189.99

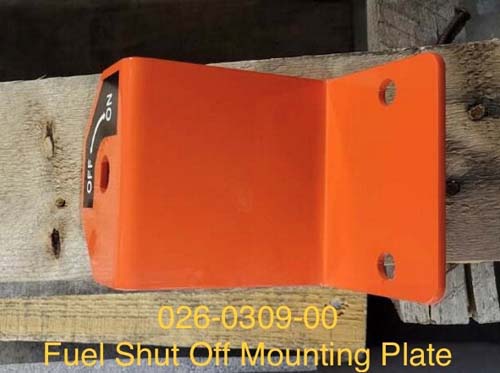

18 026-0309-00 026-0309-00 - Fuel Shut Off Mounting Plate--Orange
$21.39
19 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
20 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
21 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
22 042-9000-00 042-9000-00 - Ignition Key
$4.06
27 067-2021-00 067-2021-00 - 2021-2024 Maverick Left Side Tank
$349.99
29 067-2022-00 067-2022-00 - 2022 Maverick HD RH Fuel Tank
$459.99
31 072-8076-00 072-8076-00 - 12.5mm/15mm OETIKER 2 Ear Clamp
$2.99
32 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
37 086-3600-00 086-3600-00 - Wiring Harness With Clips (See Models Used On For Details)
$299.99
38 089-0005-00 089-0005-00 - 2x2 Folding ROPS (See Models Used On For Details)
$796.75
39 091-0513-00 091-0513-00 - MY24 Maverick HD Back Plate Decal
$2.99
40 091-4050-00 091-4050-00 - Heat Shield (Fiberglass Adhesive)
$14.19
41 091-6021-00 091-6021-00 - Maverick HD Shut Off Valve Decal
$2.99
44 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
