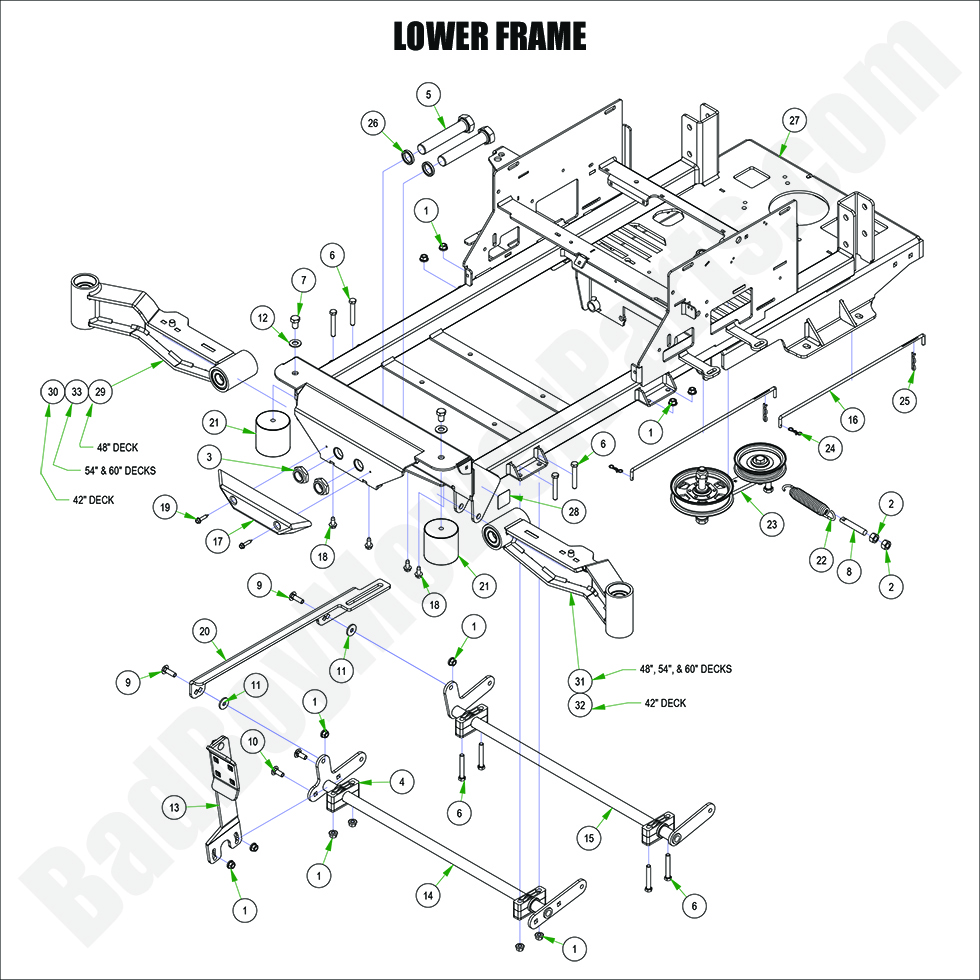

2024 Maverick HD - Lower Frame Assembly

2024 Maverick HD - Lower Frame Assembly

The 2024 Maverick HD Lower Frame Assembly is a key component that ensures the structural integrity of your mower. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts designed specifically for the 2024 Maverick HD Lower Frame Assembly. Our Bad Boy Mower Part Diagrams provide easy-to-follow guides to help you find the right parts for your mower’s lower frame. Whether you're looking for Bad Boy Lawn Mower Parts to replace worn-out components or to upgrade your mower, we have everything you need. Shopping Bad Boy Parts Online allows you to quickly and conveniently find and order parts for your mower. Plus, with Free Shipping On Orders Over $100, you can save on shipping costs while ensuring that your 2024 Maverick HD stays in top-notch condition. Browse our catalog today for all your mower part needs.

Bad Boy Mower Parts Lookup

2024 Maverick HD - Lower Frame Assembly
  Position Number SKU Product Title Price
1 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
2 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
3 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
4 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
5 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
6 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
7 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
8 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
9 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
10 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
11 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
12 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
13 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
14 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
15 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
16 028-0070-00 028-0070-00 - Neutral Rod
$12.48
17 029-7040-00 029-7040-00 - EZT Front Bumper (See Models Used On For Detail)
$31.17
18 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
19 030-7047-00 030-7047-00 - 1/4-14 x 1 1/4 HWA Unslot Tek Screw
$2.99
20 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
21 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
22 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
23 039-5944-05 039-5944-05 - Pump Idler Bracket Assy-EZT
$70.97
24 044-2004-00 044-2004-00 - Bow Pin
$2.99
25 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
26 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
28 091-8002-00 091-8002-00 - Independently Articulating Front Susp. Arms Patent Decal
$5.49
29 250-2751-21 250-2751-21 - 2021 Maverick RH Arm Assembly - Short
$199.99
31 250-2801-21 250-2801-21 - 2021 and Newer Maverick LH Front Suspension Arm Assy
$132.68
33 250-2851-21 250-2851-21 - 2021 and Newer Maverick RH Long Front Suspension Arm Assy
$149.99
