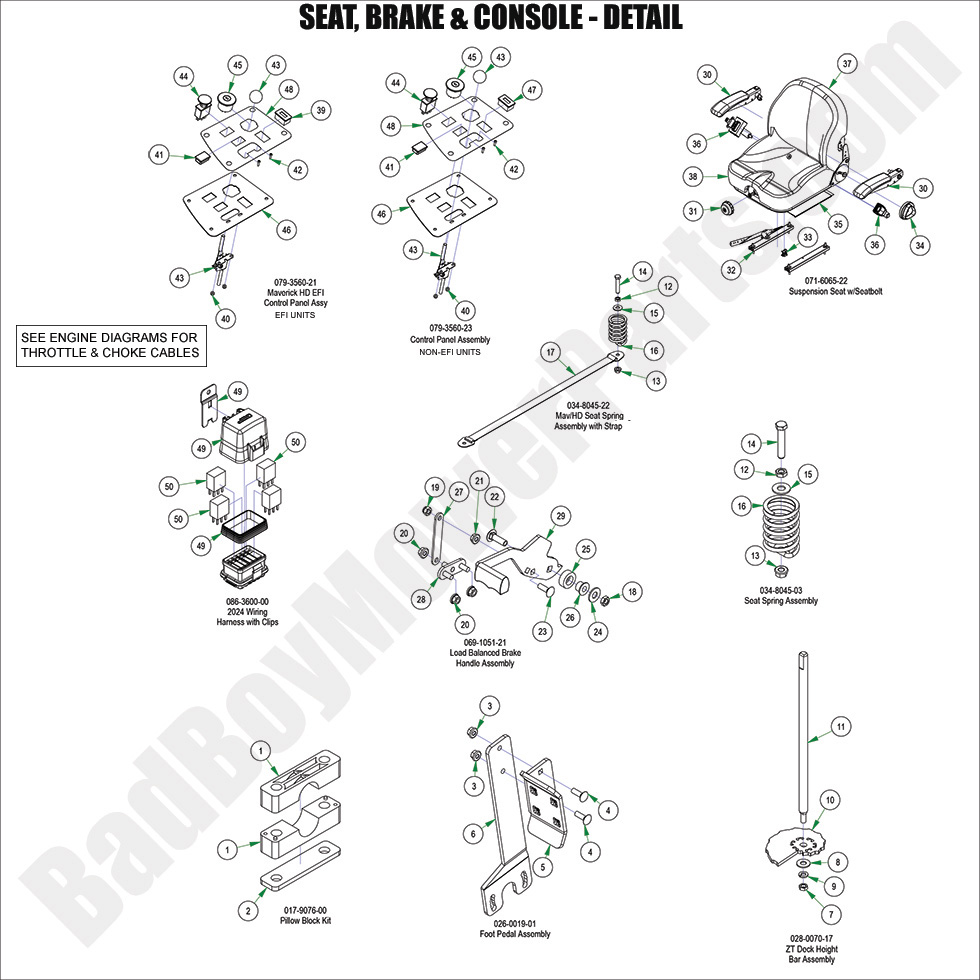

2024 Maverick HD - Seat, Brake & Console - Detail

2024 Maverick HD - Seat, Brake & Console - Detail

The 2024 Maverick HD Seat, Brake & Console - Detail is designed to provide comfort and control while you mow. At BadBoyMowerParts.com, we offer a comprehensive selection of Bad Boy Mower Parts for the 2024 Maverick HD Seat, Brake & Console - Detail. Our Bad Boy Mower Part Diagrams make it easy to locate and purchase the right parts for repairs or upgrades. Whether you need Bad Boy Lawn Mower Parts for the seat, brake system, or console, we have you covered with high-quality replacements. Shopping Bad Boy Parts Online gives you access to the best parts at the most competitive prices. Plus, we offer Free Shipping On Orders Over $100, so you can save even more while maintaining your 2024 Maverick HD. Visit our site to find everything you need to keep your mower in top condition.

Bad Boy Mower Parts Lookup

2024 Maverick HD - Seat, Brake & Console - Detail
  Position Number SKU Product Title Price
1.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
2 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
3.0 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
6 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
7.0 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
7 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
8 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
9 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
10 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
11 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
12.0 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
12.1 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
12 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
13 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
14 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
16 034-8045-00 034-8045-00 - Seat Spring
$20.49
17 064-8083-00 064-8083-00 Seat Strap w/Buckles
$24.60
18.0 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
18 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
19 013-8042-00 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
$2.99
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
22 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
25 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
26 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
27 039-0170-00 039-0170-00 - Brake Cable Extension Plate
$10.99
28 039-0171-00 039-0171-00 - Brake Load Balancer Weldment
$10.99
29 069-1051-00 069-1051-00 - Load Balanced Brake Handle With Grip
$64.19
30.0 071-6065-22 071-6065-22 - Suspension Seat with Seatbelt (See Models Used On For Details) (obsolete)
use part #071-6065-25
$829.99
30 071-6065-04 071-6065-04 - Arm Kit for 071-6065-00
$136.99
31 071-6065-05 071-6065-05 - Weight Adjustment Knob for 071-6065-00
$32.09
32 071-6065-06 071-6065-06 - Tracks for 071-6065-00 (See Models Used On For Details)
$99.37
33 071-6065-07 071-6065-07 - Seat Switch for 071-6065-00
$21.28
34 071-6065-10 071-6065-10 - Recliner Adjustment Knob
$32.09
35 071-6065-13 071-6065-13 Bellows w/Hardware for 071-6065-22
$64.19
36 071-6065-14 071-6065-14 - 2" Retractable Belt Kit w/Spacers for 07
$119.99
37 071-6065-15 071-6065-15 Back Cover for I3M - Recl - Logos for 071-6065-22
$199.99
38 071-6065-16 071-6065-16 Cushion Cover Kit for I3M - Logo for 071-6065-22
$153.99
39 083-4050-00 083-4050-00 - Tachometer For Briggs/Kohler/Yamaha EFI Units (See Models Used On For Details)
$80.24
40 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
41 018-1040-00 018-1040-00 - Light Plug
$2.99
42 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
44 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
45 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
46 079-3461-00 079-3461-00 - Control Panel--Orange
$23.53
47 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
48 091-4072-00 091-4072-00 - Control Panel Decal
$9.89
49.0 086-3600-00 086-3600-00 - Wiring Harness With Clips (See Models Used On For Details)
$299.99
49 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
50 086-1202-19 086-1202-19 - Relay Terminal
$24.97
