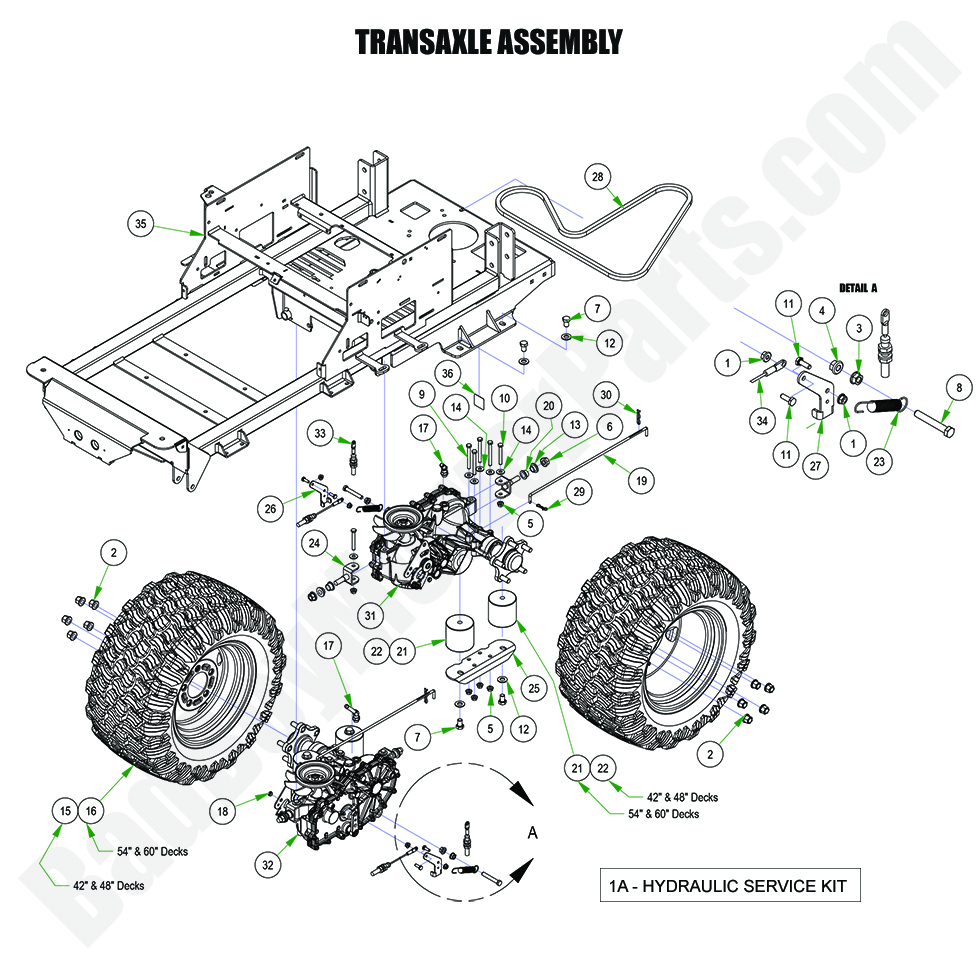

2024 Maverick HD - Transaxle Assembly

2024 Maverick HD - Transaxle Assembly

The 2024 Maverick HD Transaxle Assembly is a key component of your mower's drivetrain, helping it deliver smooth and reliable performance. At BadBoyMowerParts.com, we offer an extensive selection of high-quality Bad Boy Mower Parts for the 2024 Maverick HD Transaxle Assembly to keep your mower functioning at its best. Our Bad Boy Mower Part Diagrams make it easy to identify the necessary parts for your transaxle assembly. Whether you need Bad Boy Lawn Mower Parts for maintenance or replacements, we have you covered with durable and reliable components. Shopping Bad Boy Parts Online allows you to quickly find the right parts for your mower. Plus, enjoy Free Shipping On Orders Over $100, making it more affordable to keep your 2024 Maverick HD running smoothly and efficiently. Browse our catalog today to find all the parts you need for the 2024 Maverick HD transaxle assembly.

Bad Boy Mower Parts Lookup

2024 Maverick HD - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
3 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
4 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
8 018-2071-00 018-2071-00 - 3/8 x 2 1/2 Hex Tap Bolt - Ful l Thread - ACS
$2.99
9 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
10 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
11 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
12 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
13 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
14 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
15 022-4040-00 022-4040-00 - 23x9-12 Reaper Turf (See Models Used On for Details)
$329.99
16 022-4200-00 022-4200-00 - 23x11-12 Reaper Tire/Wheel Assembly (See Models Used On For Details)
$320.99

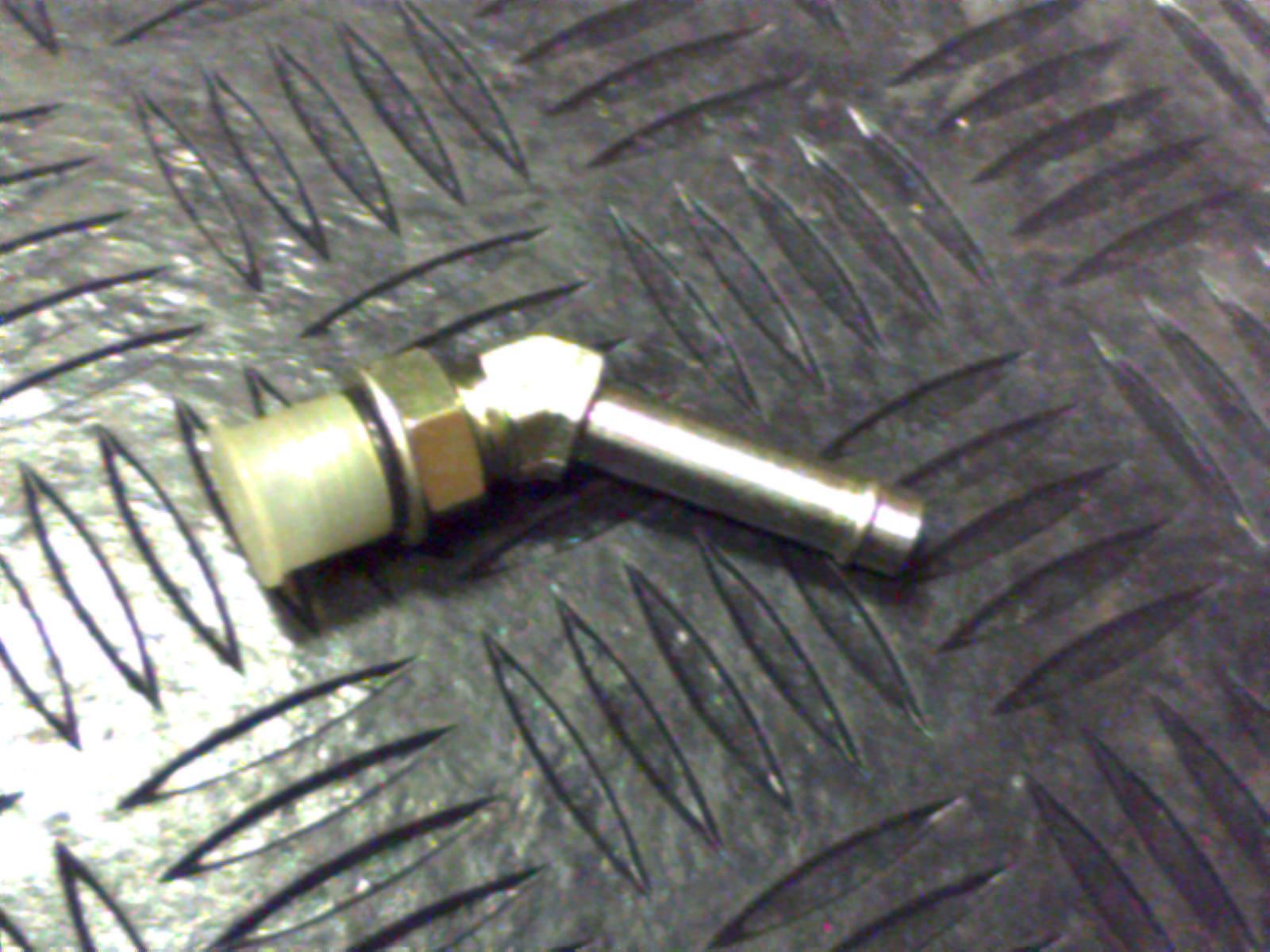

17 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
18 025-0036-00 025-0036-00 - Drive Arm Transaxle Spacer
$5.49
19 028-0070-00 028-0070-00 - Neutral Rod
$12.48
20 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
21 032-9000-00 032-9000-00 - Isolator - Green Dot
$70.97
22 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
23 034-1026-00 034-1026-00 - Brake Return Spring (See Models Used On For Details)
$14.19
24 039-0001-00 039-0001-00 - Rear Transaxle Pivot Bracket
$15.60
25 039-1306-00 039-1306-00 - EZT Rear Susp Transaxle Mount
$15.60
26 039-1320-00 039-1320-00 - Brake Arm Extension Bracket [Maverick LH]
$6.04
27 039-1321-00 039-1321-00 - Brake Arm Ext Bracket Right Side
$8.01
28 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
29 044-2004-00 044-2004-00 - Bow Pin
$2.99
30 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
31 050-6000-01 050-6000-01 - ZT3400 Transaxle - Left (obsolete)
use part #050-6000-02
$819.99
32 050-6001-01 050-6001-01 - ZT3400 Transaxle Right (obsolete)
use part #050-6001-02
$819.99
33 064-3050-21 064-3050-21 - 2021-2025 Load Balanced Brake Cable 1
$56.77
34 064-3051-21 064-3051-21 - 2021-2025 Load Balanced Brake Cable 2
$56.77
