2024 Maverick HD - Upper Frame

2024 Maverick HD - Upper Frame

The 2024 Maverick HD Upper Frame is a critical component that ensures your mower’s durability and overall performance. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts designed specifically for the 2024 Maverick HD Upper Frame, ensuring long-lasting quality. With our detailed Bad Boy Mower Part Diagrams, finding the right parts for your upper frame assembly is quick and easy. Whether you need Bad Boy Lawn Mower Parts to replace worn-out components or to upgrade your mower, we have everything you need to maintain its strength and performance. Shopping Bad Boy Parts Online makes it convenient to find the parts you need and have them delivered directly to your door. Don’t forget, we offer Free Shipping On Orders Over $100, making it even easier to get the parts you need for your 2024 Maverick HD. Browse our catalog today and keep your mower in top condition.

Bad Boy Mower Parts Lookup

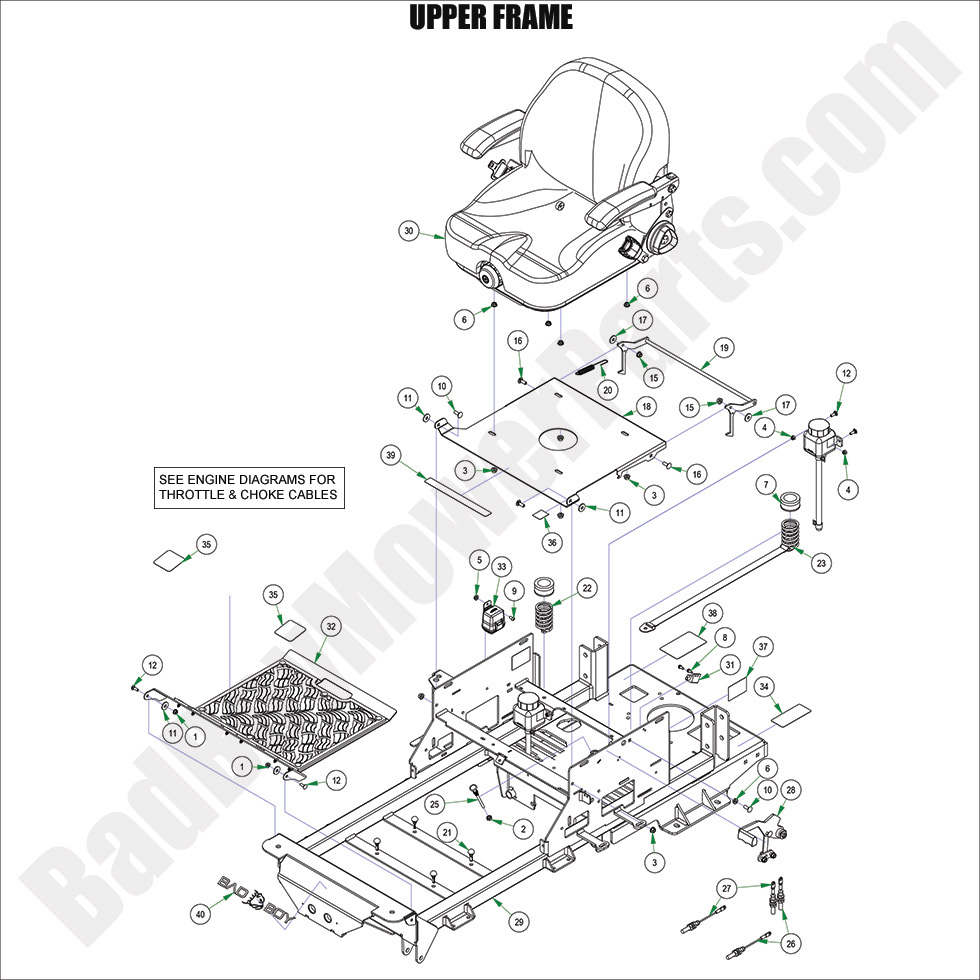

2024 Maverick HD - Upper Frame
  Position Number SKU Product Title Price
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
5 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
6 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
7 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
8 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
9 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
10 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
11 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
12 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
13 026-0205-22 026-0205-22 - 2022 Maverick Rear Cover Assembly
$189.99

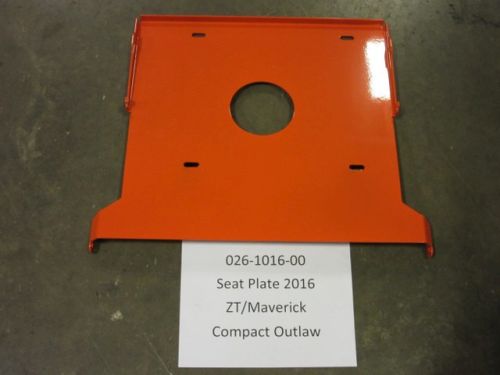

18 026-1016-00 026-1016-00 - Seat Plate
$102.11

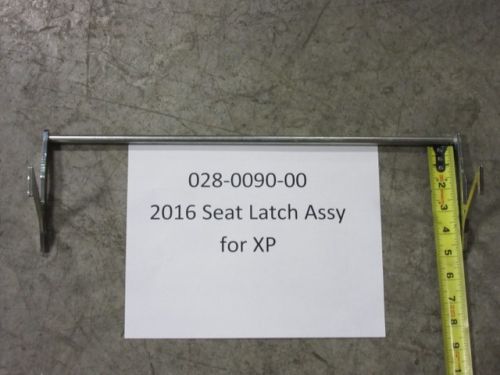

19 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
20 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
21 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
22 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
23 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
26 064-3050-21 064-3050-21 - 2021-2025 Load Balanced Brake Cable 1
$56.77
27 064-3051-21 064-3051-21 - 2021-2025 Load Balanced Brake Cable 2
$56.77
28 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
30 071-6065-22 071-6065-22 - Suspension Seat with Seatbelt (See Models Used On For Details) (obsolete)
use part #071-6065-25
$829.99
31 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
32 079-3470-21 079-3470-21 - 2021 Maverick Floorboard Assembly
$159.99
33 086-3600-00 086-3600-00 - Wiring Harness With Clips (See Models Used On For Details)
$299.99
35 091-0021-00 091-0021-00 - Steering Control Sticker
$11.76
36 091-0339-18 091-0339-18 - Brake Decal (See Models Used On For Details)
$11.76
37 091-1020-00 091-1020-00 - Hydraulic Decal (See Models Used On For Details)
$2.99

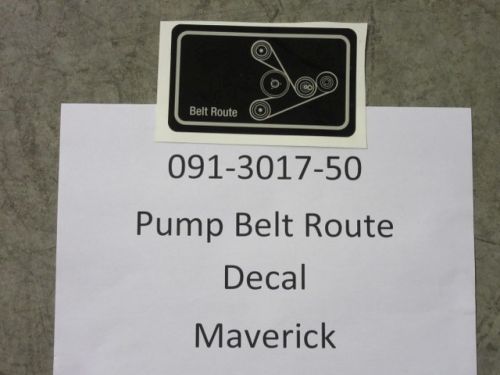

38 091-3017-50 091-3017-50 - Maverick Pump Belt Decal
$4.83
39 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
40 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
