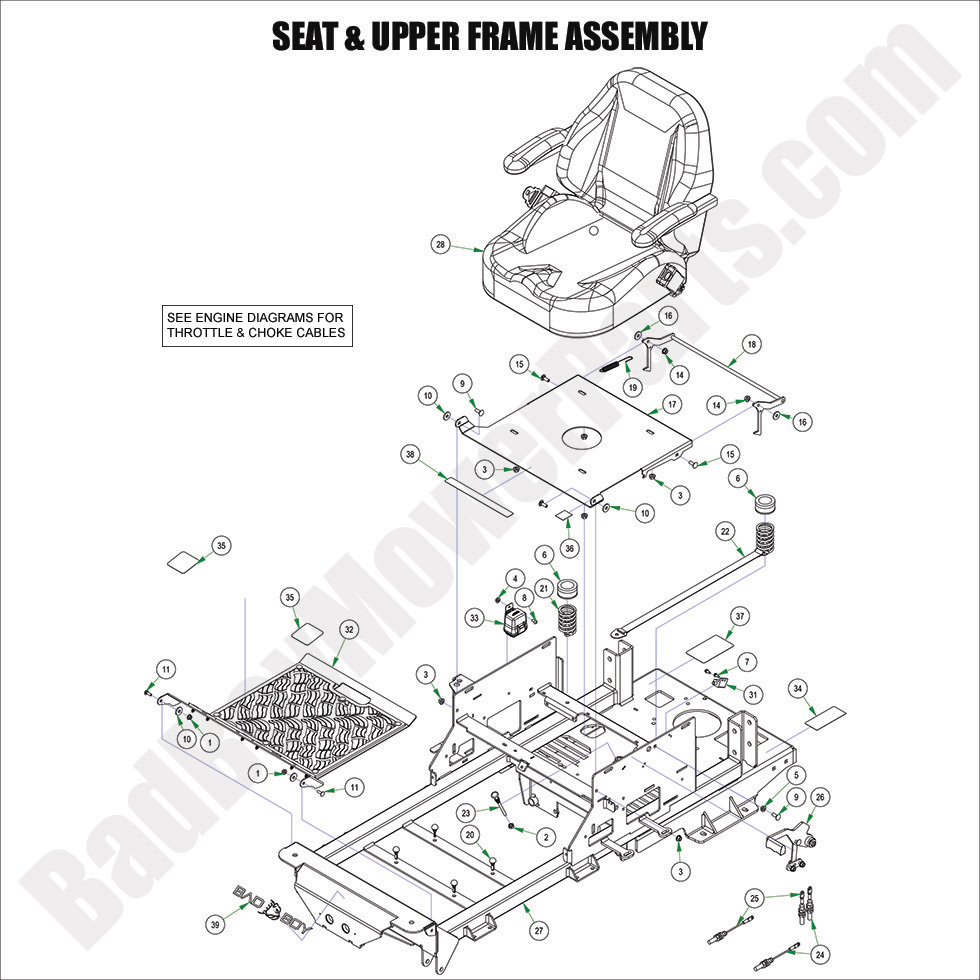

2024 Maverick - Seat & Upper Frame Assembly

2024 Maverick - Seat & Upper Frame Assembly

For maximum comfort and durability, the 2024 Maverick Seat & Upper Frame Assembly needs to be in excellent condition. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including seat replacements, brackets, and frame reinforcements. Our Bad Boy Mower Part Diagrams help you quickly locate the right parts to restore your 2024 Maverick’s seat and upper frame. Whether you're upgrading to a more comfortable seat or replacing worn-out components, our Bad Boy Lawn Mower Parts ensure a perfect fit and long-lasting durability. With Bad Boy Parts Online, you can browse and order replacement parts quickly and easily. Plus, don’t forget about Free Shipping On Orders Over $100, helping you save money on essential repairs. Keep your 2024 Maverick comfortable and structurally sound by ordering seat and frame components today from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2024 Maverick - Seat & Upper Frame Assembly
  Position Number SKU Product Title Price
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
7 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
8 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
9 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
10 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
11 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
17 026-1016-00 026-1016-00 - Seat Plate
$102.11
18 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
19 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
20 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
21 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
22 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
24 064-3050-21 064-3050-21 - 2021-2025 Load Balanced Brake Cable 1
$56.77
25 064-3051-21 064-3051-21 - 2021-2025 Load Balanced Brake Cable 2
$56.77
26 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
28 071-2500-00 071-2500-00 - Maverick Digital Seat
$599.99
31 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
32 079-3470-21 079-3470-21 - 2021 Maverick Floorboard Assembly
$159.99
33 086-3600-00 086-3600-00 - Wiring Harness With Clips (See Models Used On For Details)
$299.99
35 091-0021-00 091-0021-00 - Steering Control Sticker
$11.76
36 091-0339-18 091-0339-18 - Brake Decal (See Models Used On For Details)
$11.76
37 091-3017-50 091-3017-50 - Maverick Pump Belt Decal
$4.83
38 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
39 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
