2024 Maverick - Spindle Assembly & Idlers

2024 Maverick - Spindle Assembly & Idlers

The 2024 Maverick Spindle Assembly & Idlers are critical components for maintaining cutting efficiency and deck performance. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts to ensure smooth blade operation and reduced wear on your mower deck. Our Bad Boy Mower Part Diagrams make it easy to identify and order the correct spindles, bearings, and idlers for your 2024 Maverick. With our selection of Bad Boy Lawn Mower Parts, you can keep your deck running at peak performance for a clean, even cut. We provide Bad Boy Parts Online, making it simple to find and purchase what you need without hassle. Plus, don’t forget about Free Shipping On Orders Over $100, giving you the best value on essential deck components. Keep your 2024 Maverick Spindle Assembly & Idlers in top shape by ordering from BadBoyMowerParts.com today.

Bad Boy Mower Parts Lookup

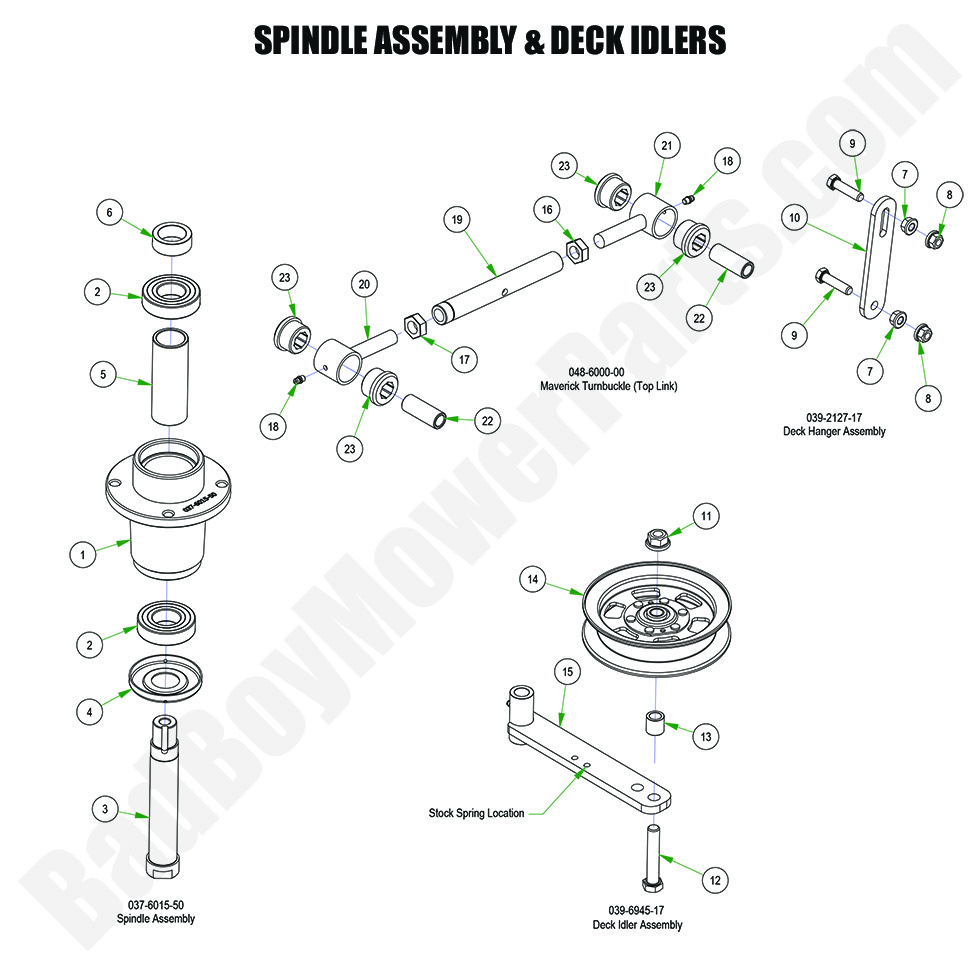

2024 Maverick - Spindle Assembly & Idlers
  Position Number SKU Product Title Price
1A 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
1B 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
1C 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
1D 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
1 037-6017-50 037-6017-50 - Compact Outlaw / Maverick / Walkbehind / ZT & 2007 Pup Aluminum Spindle Housing (obsolete)
use part #037-6015-50
$199.99
2 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
3 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
5 037-8050-00 037-8050-00 - Tube Spacer For Spindle Shaft - Small Spindle
$8.69
6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
7 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
8 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
9 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
10 039-2127-00 039-2127-00 - Deck Hanger (See Models Used On For Details) (obsolete)
use part #039-2127-17
$15.60
11 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
12 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
13 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
14 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
15 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
16 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
17 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
18 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
19 048-6001-00 048-6001-00 - Maverick/Compact Outlaw Toplink Body (See Models Used On For Details)
$28.32
20 048-6002-00 048-6002-00 - Maverick/Compact Outlaw Topllink Bushing Retainer (See Models Used On For Details)
$28.32
21 048-6003-00 048-6003-00 - Toplink Bushing Retainer (See Models Used On For Details)
$28.32
22 048-6004-00 048-6004-00 - Maverick/Compact Outlaw Topllink Bushing Sleeve (See Models Used On For Details)
$11.29
23 048-6005-00 048-6005-00 - Toplink Bushing (See Models Used On For Details)
$32.09
