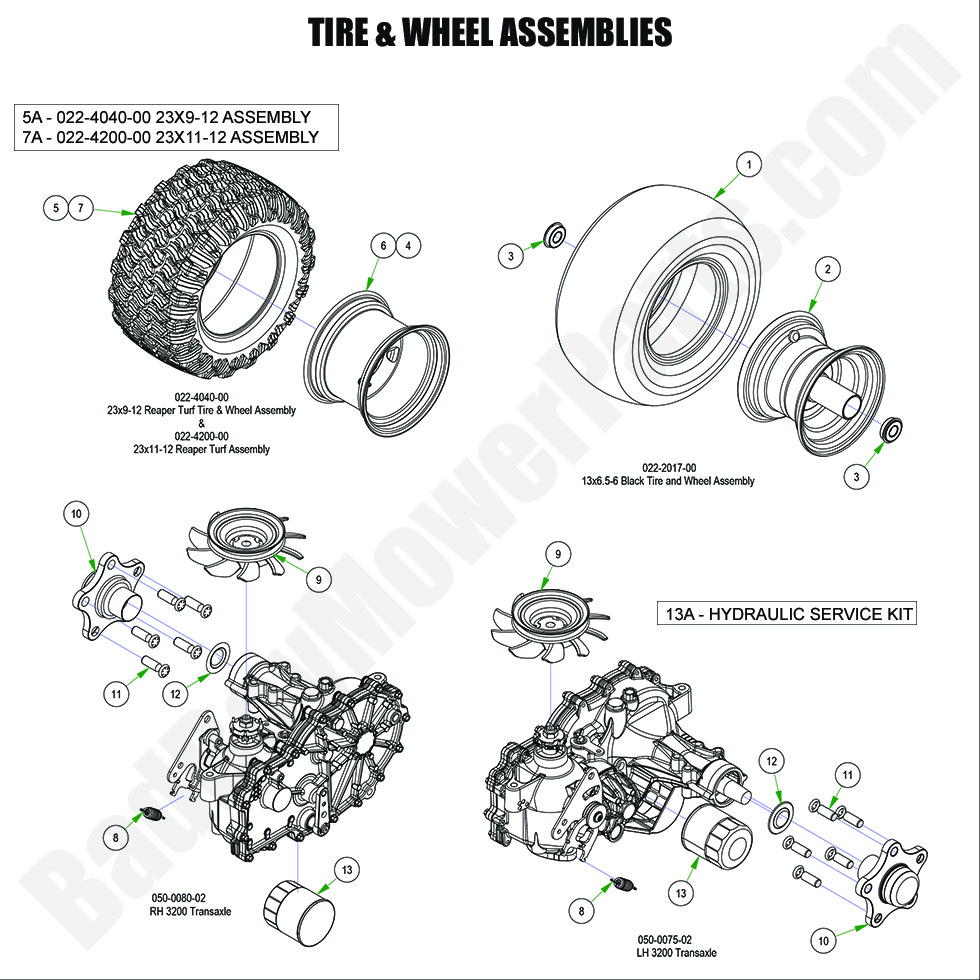

2024 Maverick - Wheel Assemblies

2024 Maverick - Wheel Assemblies

The 2024 Maverick Wheel Assemblies provide stability and traction, ensuring smooth operation across all terrains. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts to keep your Maverick rolling smoothly. Whether you need front or rear wheels, bearings, or axles, our Bad Boy Mower Part Diagrams simplify the process of finding the right components. Our high-quality Bad Boy Lawn Mower Parts guarantee durability and a perfect fit for your 2024 Maverick. With our easy-to-use Bad Boy Parts Online store, you can browse and purchase the necessary parts with confidence. Plus, don’t forget about Free Shipping On Orders Over $100, making your replacement parts more affordable. Ensure the smooth performance of your mower by ordering your 2024 Maverick Wheel Assemblies today from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2024 Maverick - Wheel Assemblies
  Position Number SKU Product Title Price
1A 022-2017-00 022-2017-00 - 13 x 6.50 - 6 Black Tire and Wheel Assembly
$94.15
1 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
2 022-7007-00 022-7007-00 - 6 x 4.5 Black Wheel Small Bore (See Models Used On For Details)
$56.81
3 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
4 022-3011-00 022-3011-00 - 12x7" Black Wheel-48" EZT Only
$109.99
5A 022-4040-00 022-4040-00 - 23x9-12 Reaper Turf (See Models Used On for Details)
$329.99
5 022-4035-00 022-4035-00 - 23x9 - 12 Reaper Turf Tire Only
$201.99
6 022-4070-00 022-4070-00 - Black Wheel 12x8.5 (See Models Used On for Detail)
$141.99
7A 022-4200-00 022-4200-00 - 23x11-12 Reaper Tire/Wheel Assembly (See Models Used On For Details)
$320.99
7 022-4195-00 022-4195-00 - 23x11-12 Reaper Turf Tire
$255.99
8 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
9 050-2070-00 050-2070-00 - 2020 -2024 ZT Avenger/ ZT/Maverick Transaxle Fan/Pulley Kit
$85.17
10 050-2077-00 050-2077-00 - 5 Bolt Hub Kit (See Models Used On For Details)
$102.71
11 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
12 050-8010-00 050-8010-00 - ZT/Maverick Transaxle Seal Kit (ZT-2800)
$109.46
13A 085-4051-01 085-4051-01 - Hydro Service Kit for 2021 & Newer ZT Avenger, ZT Elite & Maverick Models (Without Expansion Tanks)
$125.99
13B 050-0080-02 050-0080-02 - 2021-2022 RH 3200 Transaxle
$999.99
13C 050-0075-02 050-0075-02 - 2021-2022 LH 3200 Transaxle
$799.99
13 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
