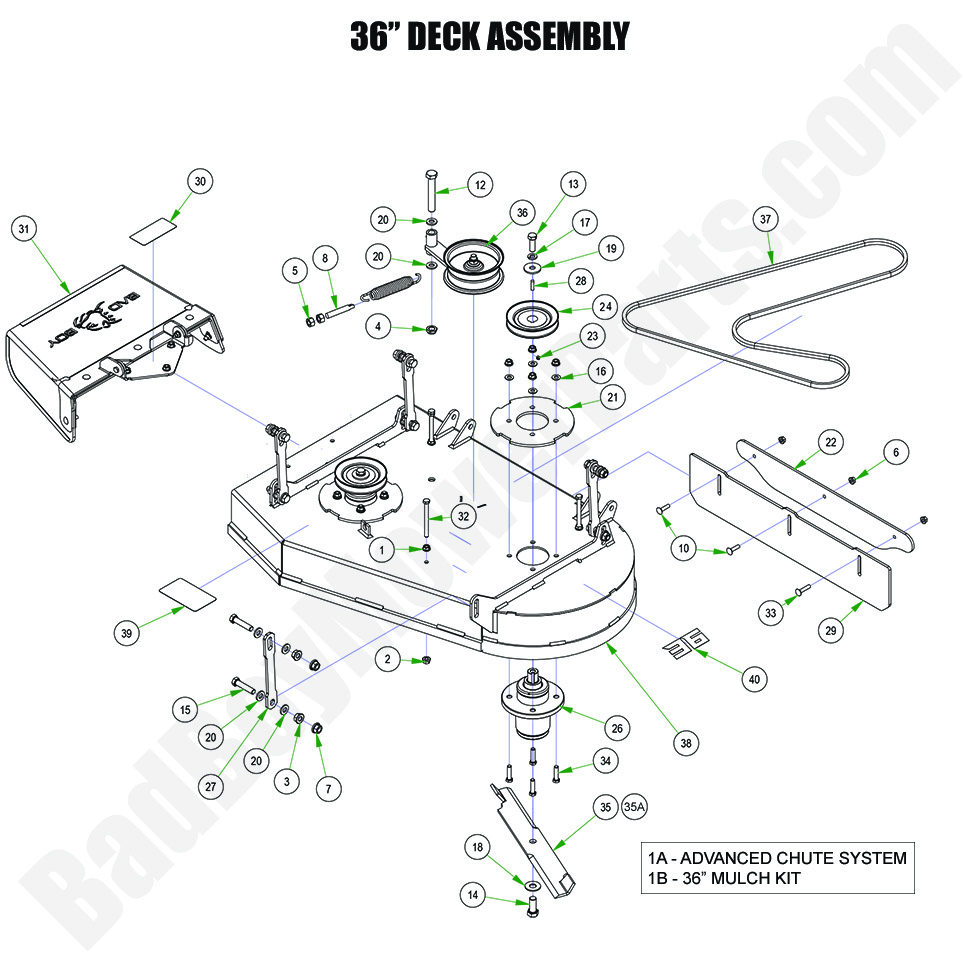

2024 Raider - 36" Deck Assembly

2024 Raider - 36" Deck Assembly

The 2024 Raider 36" Deck Assembly is a crucial component for a smooth and precise mowing experience. At BadBoyMowerParts.com, we offer a complete range of Bad Boy Mower Parts for the 2024 Raider 36" Deck Assembly, so you can replace worn or damaged parts with ease. Our Bad Boy Mower Part Diagrams provide detailed visuals to help you identify the specific deck parts you need. Whether you're looking for Bad Boy Lawn Mower Parts to replace a damaged deck component or to upgrade the overall performance, we have you covered. Shopping Bad Boy Parts Online is quick and easy, with our website designed for hassle-free navigation. Plus, take advantage of Free Shipping On Orders Over $100, ensuring that you save on delivery while keeping your 2024 Raider deck assembly in optimal condition. Visit us today to find the parts you need.

Bad Boy Mower Parts Lookup

2024 Raider - 36" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
1B 210-0036-00 210-0036-00 - 36" Walk Behind Mulch Kit w/Blades
$239.99
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
10 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
12 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
13 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
14 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
15 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
16 019-0001-00 019-0001-00 - 3/8 Flat Washer SAE-13/16 O.D
$2.99
17 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
18 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
19 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
20 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
21 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
22 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
23 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
24 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
26 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
28 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
29 084-5005-00 084-5005-00 - 2023 MZ Stripe Kit Rubber
$56.77
30 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
31 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
32 018-2070-00 018-2070-00 - 3/8 x 4 Hex Tap Bolt - Full Th read - ACS
$2.99
33 018-5020-00 018-5020-00 - 5/16-18 X 1-1/2 Carriage Bolt
$2.99
34 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
35 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
35a 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
36 039-6945-10 039-6945-10 - 36" Walkbehind Deck Idler Assembly
$106.99
37 041-8054-00 041-8054-00 - Deck Belt 2020-Newer Revolt and Walk Behind (See Models Used On For Details)
$80.24
38 060-2317-00 060-2317-00 - 2023 36" Walk Behind Deck--Painted
$1399.99
39 091-0418-00 091-0418-00 - 2017-2024 Walk Behind 36" Deck Belt Route
$4.37
