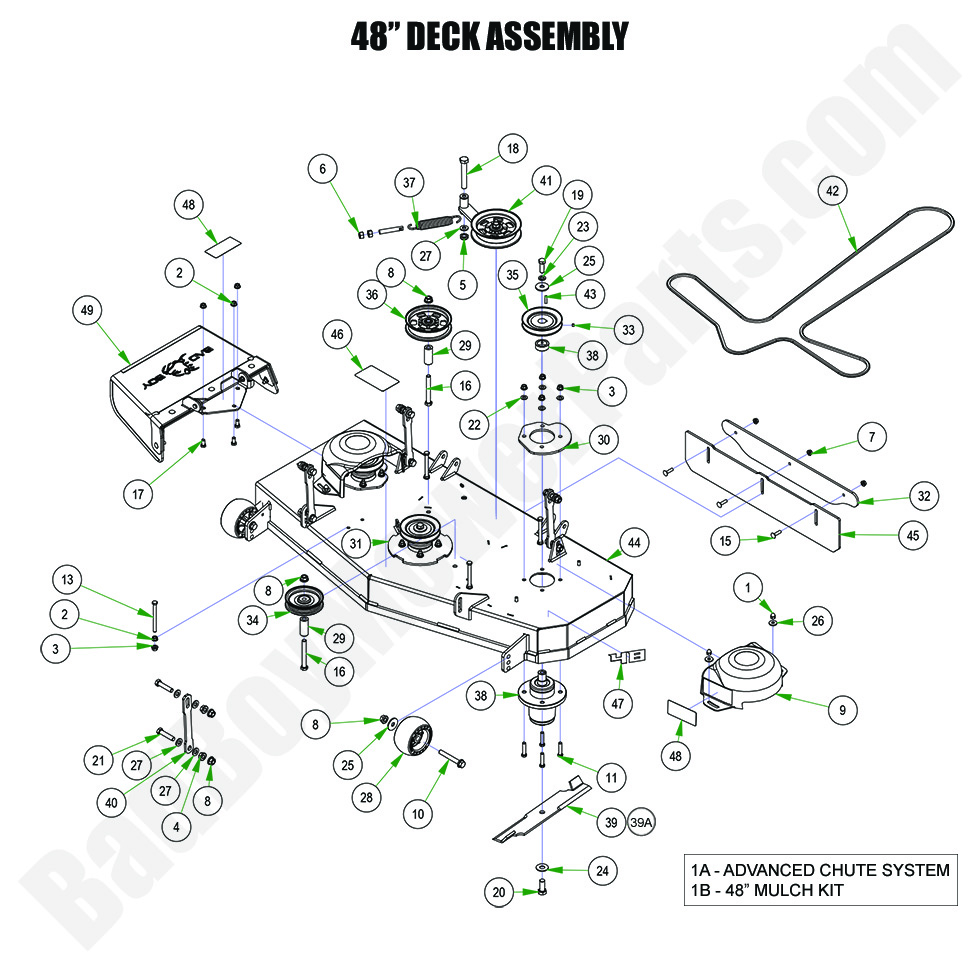

2024 Raider - 48" Deck Assembly

2024 Raider - 48" Deck Assembly

The 2024 Raider 48" Deck Assembly is essential for achieving a clean, precise cut every time you mow. At BadBoyMowerParts.com, we provide a wide selection of Bad Boy Mower Parts for the 2024 Raider 48" Deck Assembly, helping you replace any worn-out or damaged components. Our Bad Boy Mower Part Diagrams give you a clear visual guide to the parts that make up your deck, simplifying the repair and replacement process. Whether you need Bad Boy Lawn Mower Parts for general maintenance or a specific repair, we offer reliable, high-quality options for your deck. Shopping Bad Boy Parts Online is convenient, with fast and easy browsing on our website. Plus, enjoy Free Shipping On Orders Over $100, ensuring that you get your parts delivered at no extra cost while keeping your 2024 Raider in top condition. Visit us today for all your deck assembly needs.

Bad Boy Mower Parts Lookup

2024 Raider - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
5 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
6 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
7 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
8 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
9 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
10 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
11 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
13 018-2005-00 018-2005-00 - 3/8-16 X 4-1/4 Hex Bolt
$2.99
15 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
16 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
17 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
18 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
19 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
20 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
21 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
22 019-0001-00 019-0001-00 - 3/8 Flat Washer SAE-13/16 O.D
$2.99
23 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
24 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
25 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
26 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
27 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
28 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
29 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
30 026-0024-00 026-0024-00 - 42 & 48 Deck Spindle Support Plate
$14.19
31 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
32 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
33 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
34 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
35 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
36 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
37 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
38 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
39 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
39a 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
41 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
42 041-0120-00 041-0120-00 - Deck Belt (See Models Used On For More Details - Not for 54" MZ)
$88.80
43 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
44 060-2318-00 060-2318-00 - 2023 48" Walk Behind Deck--Painted
$1399.99
45 084-5005-00 084-5005-00 - 2023 MZ Stripe Kit Rubber
$56.77
46 091-0393-00 091-0393-00 - 48"/ 42" Deck Route Decal (See Models Used On for Details)
$11.76
47 091-0503-00 091-0503-00 - MY24 48" Deck Decal
$10.99
48 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
49 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
