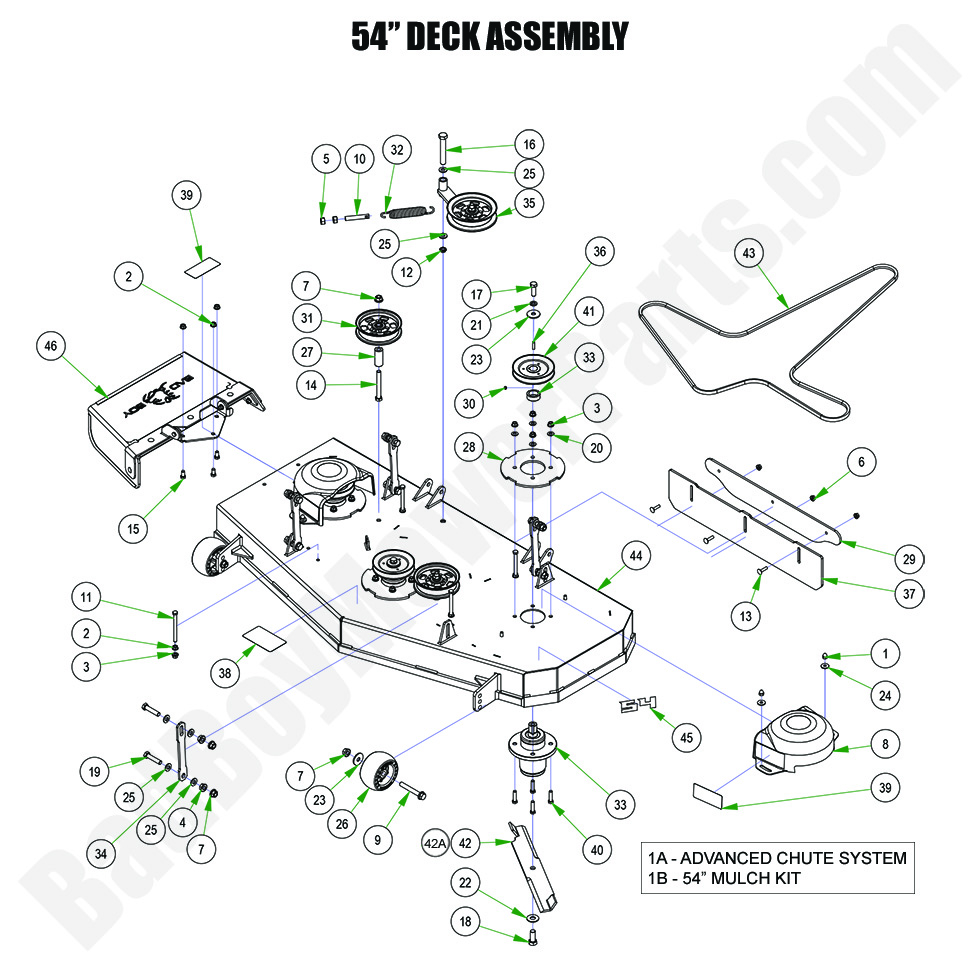

2024 Raider - 54" Deck Assembly

2024 Raider - 54" Deck Assembly

The 2024 Raider 54" Deck Assembly offers powerful cutting performance, and keeping it well-maintained is key to achieving the best results. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts for the 2024 Raider 54" Deck Assembly, making it easy to replace or repair any deck components. Our Bad Boy Mower Part Diagrams provide clear images of the parts you need for your deck, ensuring accurate and efficient repairs. Whether you need Bad Boy Lawn Mower Parts to replace blades, belts, or other deck components, we have a range of quality parts available. Shopping Bad Boy Parts Online is fast and user-friendly, and our website makes it simple to find and order exactly what you need. Plus, with Free Shipping On Orders Over $100, you can save on shipping while keeping your 2024 Raider in prime condition. Shop today for all your deck assembly parts!

Bad Boy Mower Parts Lookup

2024 Raider - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
5 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
9 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
10 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
11 018-2005-00 018-2005-00 - 3/8-16 X 4-1/4 Hex Bolt
$2.99
12 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
13 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
14 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
15 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
16 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
19 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
20 019-0001-00 019-0001-00 - 3/8 Flat Washer SAE-13/16 O.D
$2.99
21 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
22 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
25 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
26 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
27 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
28 026-0026-00 026-0026-00 - Knurled Foot Pedal
$39.03
29 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
30 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
31 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
32 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
33 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
35 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
36 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
37 084-5005-00 084-5005-00 - 2023 MZ Stripe Kit Rubber
$56.77
38 091-0393-00 091-0393-00 - 48"/ 42" Deck Route Decal (See Models Used On for Details)
$11.76
39 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
40 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
41 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
42 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
42a 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
43 041-6027-00 041-6027-00 - B128 Deck Belt for 2010-2016 48" MZ & MZ Magnum & 2020 - 2023 Walk-Behind 54"
$80.24
44 060-2319-00 060-2319-00 - 2023 54" Walk Behind Deck--Painted
$1399.99
45 091-0504-00 091-0504-00 - MY24 54" Deck Decal
$10.99
46 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
