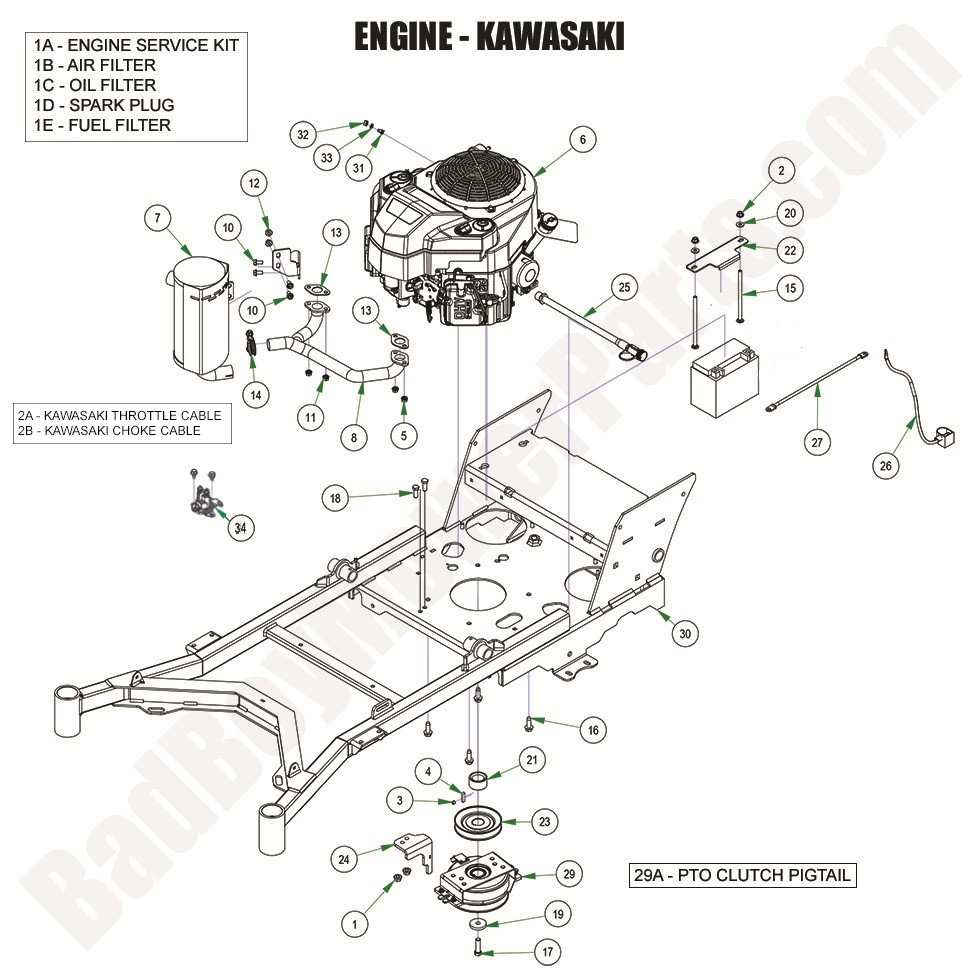

2024 Raider - Engine - Kawasaki FS600

2024 Raider - Engine - Kawasaki FS600

The 2024 Raider Engine - Kawasaki FS600 provides powerful and efficient performance for your mower. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts for the 2024 Raider Engine - Kawasaki FS600, so you can keep your engine running at peak performance. Our Bad Boy Mower Part Diagrams make it easy to find the specific engine parts you need for repairs or maintenance. Whether you're looking for Bad Boy Lawn Mower Parts for routine maintenance or to replace a damaged engine component, we have the parts you need. Shopping Bad Boy Parts Online is convenient, and our website makes ordering parts fast and easy. Plus, we offer Free Shipping On Orders Over $100, so you can save on delivery costs while keeping your 2024 Raider engine in top condition. Browse our catalog for all your engine part needs today!

Bad Boy Mower Parts Lookup

2024 Raider - Engine - Kawasaki FS600
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1B 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
1C 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
1D 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
1E 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
1 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
4 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
5 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
6 015-0087-00 015-0087-00 - Kawasaki 18.5HP FS600 Electric Start
$3099.00
7 015-0543-01 015-0543-01 - Exhaust Only for 2018-2022 Kawasaki Walk Behind, 2024 Revolt SD & Raider
$106.99
8 015-0543-02 015-0543-02 - Exhaust Pipe for 2018-2022 Kawasaki Walk Behind, 2024 Revolt SD & Raider
$64.19
10 015-0543-04 015-0543-04 - Exhaust Flanged Bolt (See Models Used On For Details)
$2.99
11 015-0543-05 015-0543-05 - Exhaust Washer Spring for Kawasaki (See Models Used On For Details)
$2.99
13 015-0543-07 015-0543-07 - Exhaust Gasket for 2018-2024 Kawasaki Walk Behind
$3.29
14 015-0543-08 015-0543-08 - Exhaust Band for 2018-2022 Kawasaki Walk Behind
$13.90
15 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
16 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
17 018-5450-21 018-5450-21 - 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch
$2.99
18 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
19 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
20 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
21 025-5032-00 025-5032-00 - 1.130 ID X 1.75 OD X 1" Countersunk Zinc Spacer
$12.83
22 026-0098-00 026-0098-00 - Battery Hold Down Plate
$17.02
23 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Keyway IS NOT included. (See Models Used On For Details)
$35.48
25 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
26 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
27 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
29 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
29a 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
33 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
34 108-0001-00 108-0001-00 - Solenoid
$29.41
