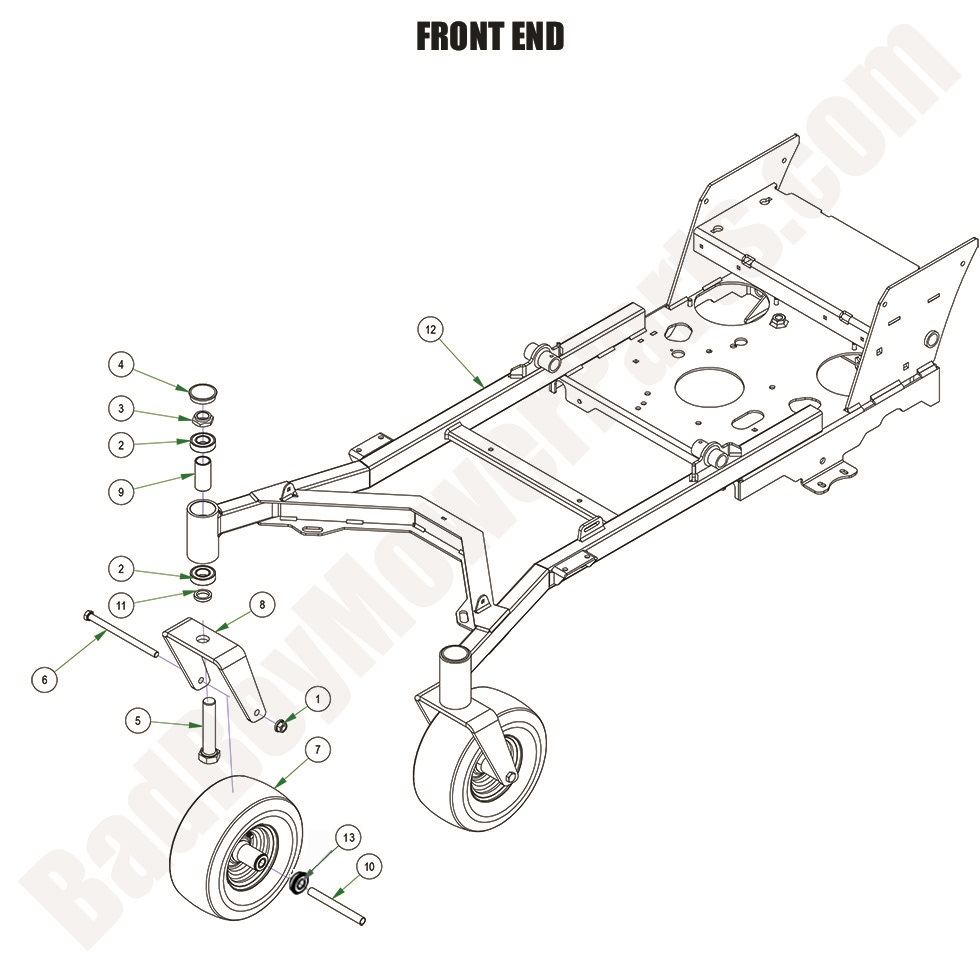

2024 Raider - Front End

2024 Raider - Front End

The 2024 Raider Front End is designed for stability and strength, ensuring that your mower performs reliably. At BadBoyMowerParts.com, we provide a wide range of Bad Boy Mower Parts for the 2024 Raider Front End, making it easy to maintain or replace components. Our Bad Boy Mower Part Diagrams offer clear visual references, helping you identify the specific parts required for your front-end assembly. Whether you're in need of Bad Boy Lawn Mower Parts for repairs or enhancements, we have durable, high-quality components available. Shopping Bad Boy Parts Online is quick and simple, and our user-friendly website ensures you find the parts you need in no time. Plus, take advantage of Free Shipping On Orders Over $100, so you can save on delivery while keeping your 2024 Raider front end performing at its best. Visit us today for all your front-end assembly parts!

Bad Boy Mower Parts Lookup

2024 Raider - Front End
  Position Number SKU Product Title Price
1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
2 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
3 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
4 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
5 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc
$7.69
6 018-0035-00 018-0035-00 - 1/2-13 x 7 1/2 Hex Bolt
$4.83
7 022-8049-22 022-8049-22 - 11x6.00-5 Front Assembly - Black Wheel
$99.39
8 023-0002-00 023-0002-00 - 2017-2025 Walkbehind & MZ Front Fork
$31.23
9 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
10 025-0008-00 025-0008-00 - Front Wheel Spanner - MZ
$15.60
11 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
13 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
