2024 Raider - Podium Control Panel

2024 Raider - Podium Control Panel

The 2024 Raider Podium Control Panel provides intuitive control over your mower’s functions, making it essential for optimal performance. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts for the 2024 Raider Podium Control Panel, ensuring that you can replace or repair any components as needed. Our Bad Boy Mower Part Diagrams make it easy to pinpoint the exact control panel parts required for your mower. Whether you need Bad Boy Lawn Mower Parts for maintenance or repairs, we have high-quality, durable options for your mower's control system. Shopping Bad Boy Parts Online is simple, and our website ensures a fast and efficient shopping experience. Plus, enjoy the added benefit of Free Shipping On Orders Over $100, so you can save on delivery costs while maintaining your 2024 Raider. Visit us today for all your podium control panel parts!

Bad Boy Mower Parts Lookup

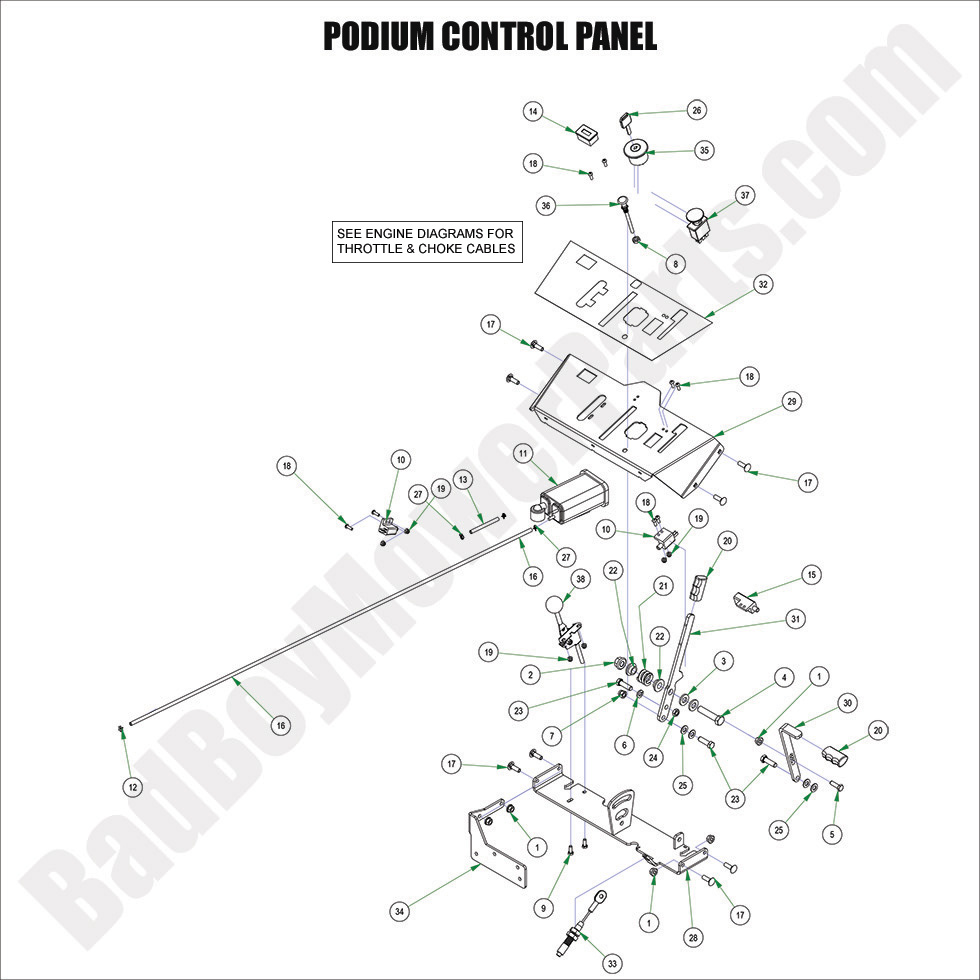

2024 Raider - Podium Control Panel
  Position Number SKU Product Title Price
1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
4 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
5 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
6 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
7 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
8 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
9 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
10 077-0002-00 077-0002-00 - Safety Switch (See Models Used On For Detail)
$23.41
11 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78
12 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
13 051-2027-00 051-2027-00 - Clear 3/16" EPA Air Line (Priced Per Foot)
$2.99
14 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
15 077-0001-00 077-0001-00 - 2017-2025 Walk Behind-Safety Switch Brake
$23.41
16 051-2023-02 051-2023-02 - 44" x 3/16" Black Hose
$12.48
17 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
18 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
19 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
20 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
21 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
22 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
23 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
24 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
25 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
26 042-9000-00 042-9000-00 - Ignition Key
$4.06
27 072-0002-00 072-0002-00 - 5.5 mm Vinyl Hose Clamp
$2.99
28 201-1171-00 201-1171-00 - 2020 Walk Behind Cross Support--Orange No Longer Available
Obsolete.
30 069-2020-00 069-2020-00 - Walk Behind Brake Handle
$8.79
31 031-0036-00 031-0036-00 - Walk Behind Speed Control Lever
$10.99
32 091-4055-00 091-4055-00 2020-2024 Walkbehind Control Panel Decal
$13.90
33 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
35 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
37 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
